Suzuki VLR1800 Service Manual

1D-83 Engine Mechanical:

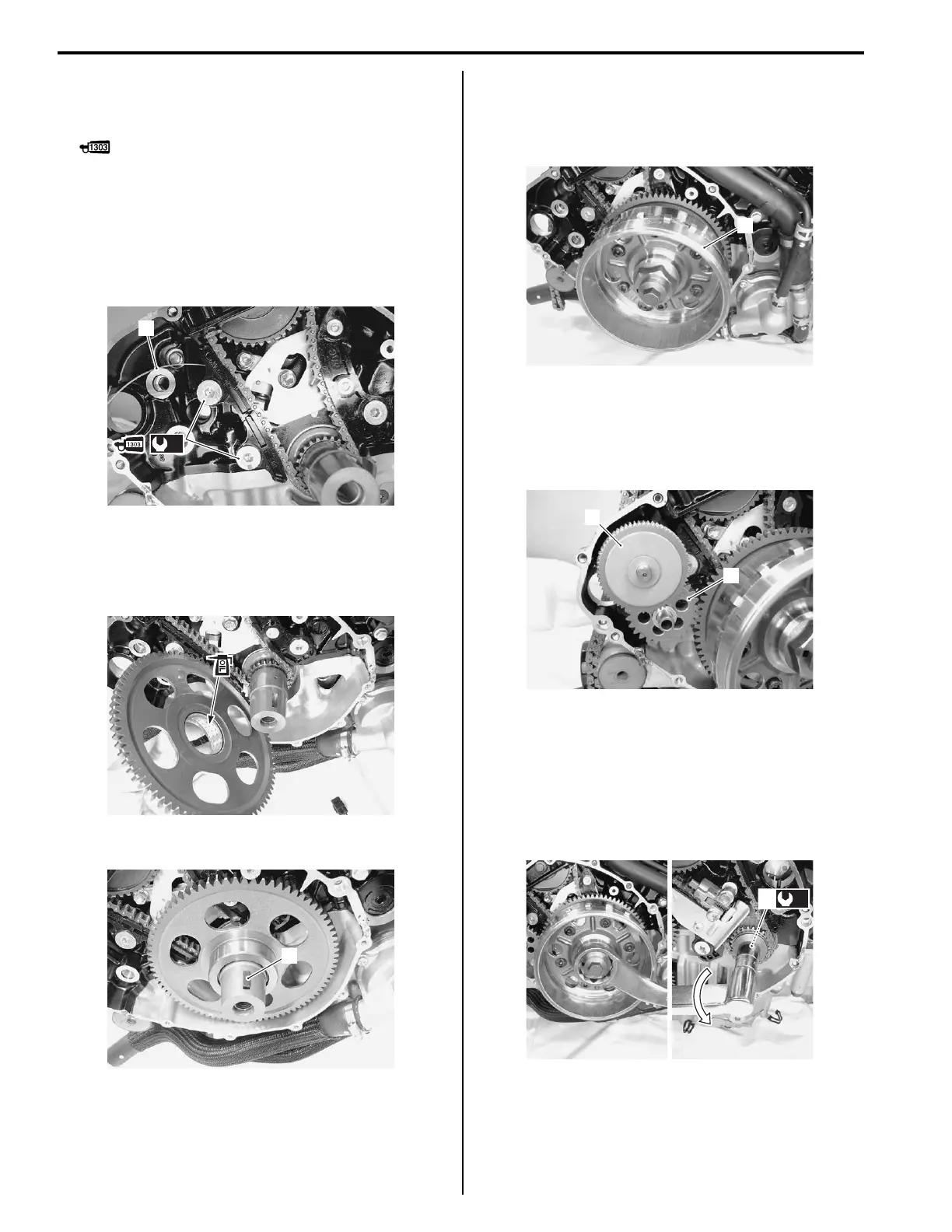

Cam Chain Guide No. 1
• Apply thread lock to the bolts and tighten it to the
specified torque.
: Thread lock cement 99000–32030
(THREAD LOCK CEMENT SUPER 1303 or
equivalent)
Tightening torque
Cam chain guide No. 1 bolt (a): 18 N·m (1.8 kgf-
m, 13.0 lb-ft)
• Remove the chain tensioner lock tool (1).
Starter Driven Gear
• Apply engine oil to the bushing of the starter driven
gear.
• Install the key (1).
Generator
• Install the generator component parts (1). Refer to
“Generator Removal and Installation in Section 1J
(Page 1J-5)”.
Starter Torque Limiter / Starter Idle Gear
Install the starter idle gear (1) and starter torque limiter
(2). Refer to “Starter Torque Limiter / Starter Clutch
Removal and Installation in Section 1I (Page 1I-11)”.
Rear Cam Chain Drive Sprocket
Hold the generator rotor and tighten the rear cam chain
drive sprocket bolt (1) to the specified torque.
Tightening torque
Rear cam chain drive sprocket bolt (a): 85 N·m (8.5
kgf-m, 61.5 lb-ft)
1
(a)
I822H1140277-01
I822H1140279-01
1
I822H1140280-01
1
I822H1140281-01
2
1
I822H1140282-01
(a)
1
I822H1140283-01
