Suzuki VLR1800 Service Manual

1E-4 Engine Lubrication System:

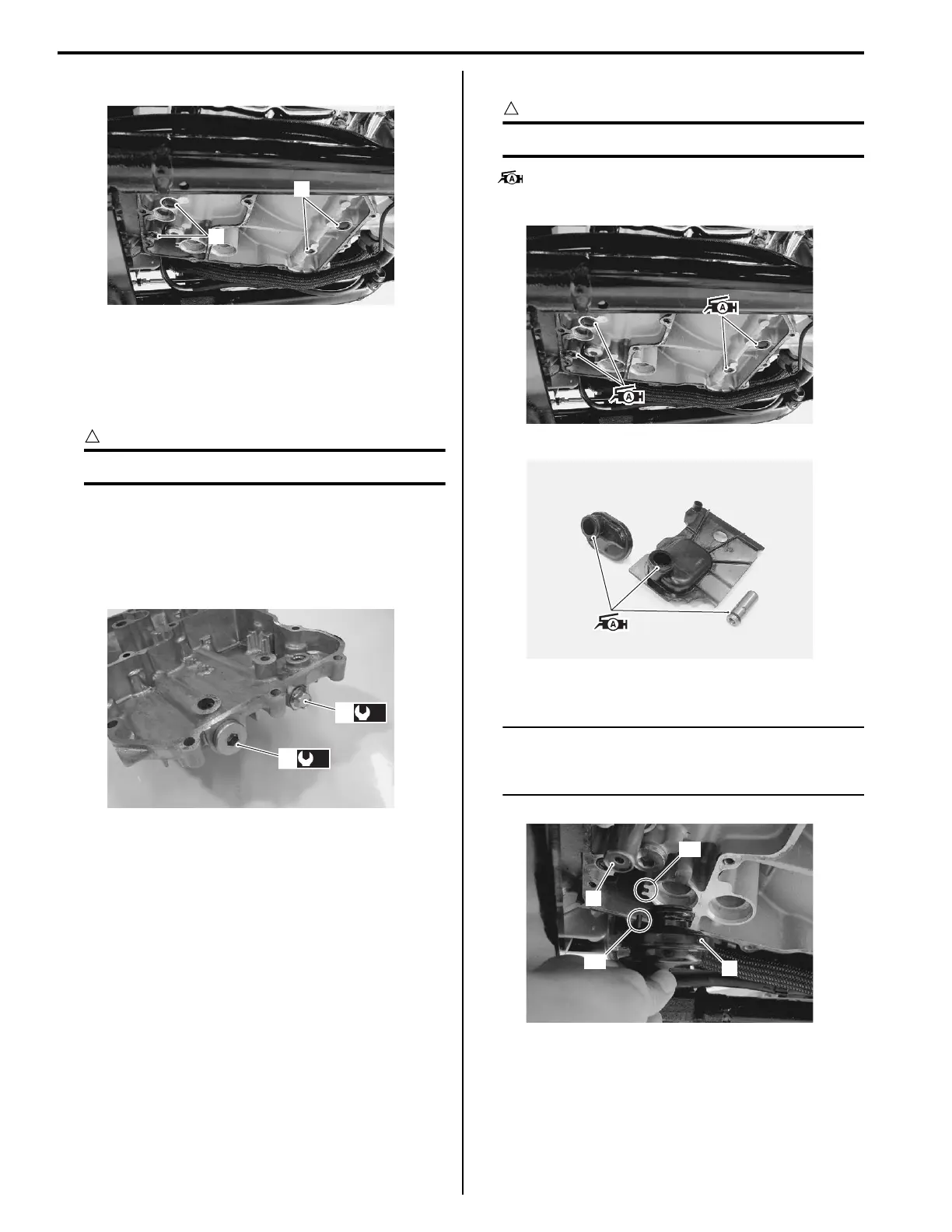

5) Remove the O-rings (5).
Installation
Installation is in the reverse order of removal.
Pay attention to the following points:
• Tighten the oil gallery plug (1) to the specified torque.
CAUTION
!
Use a new gaskets to prevent oil leakage.
Tightening torque
Oil gallery plug (M16) (a): 35 N·m (3.5 kgf-m, 25.5
lb-ft)
Oil gallery plug (M10) (b): 20 N·m (2.0 kgf-m, 14.5
lb-ft)
• Apply grease to the O-rings and install them.
CAUTION
!
Use new O-rings to prevent oil leakage.
: Grease 99000–25010 (SUZUKI SUPER
GREASE A or equivalent)
• Install the oil pressure regulator (2) and oil strainer (3).
NOTE
When installing the oil strainer (3), fit the
convex part “A” of the oil strainer onto the
concave part “B” of the crankcase.
5
5
I822H1150007-01
(a)
1
(b)
1
I822H1150008-02
I822H1150009-01
I822H1150010-01
2
3
“B”
“A”
I822H1150011-02
