Suzuki VLR1800 Service Manual

Rear Suspension: 2C-6

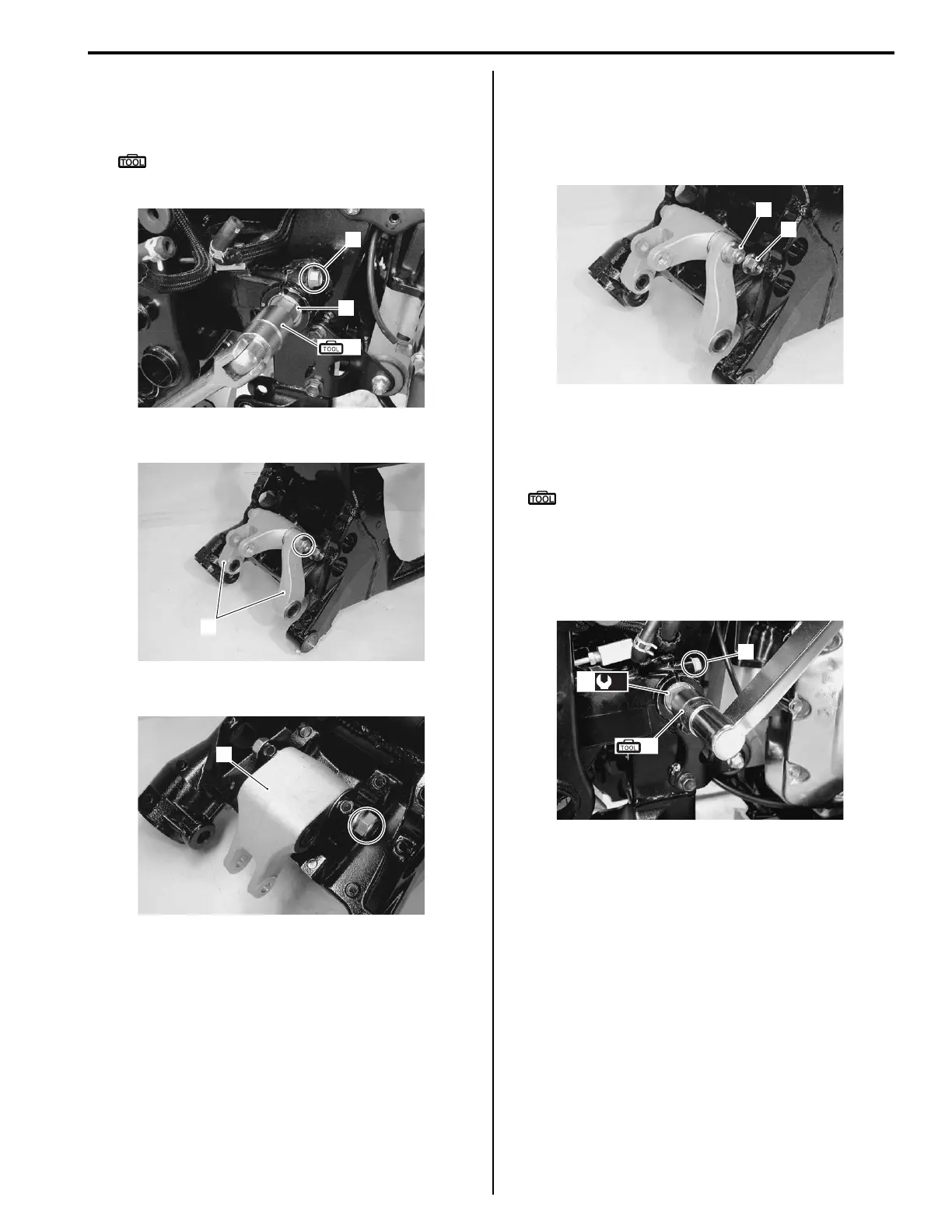

8) Loosen the swingarm pivot shaft clamp bolt (3) and
remove the swingarm pivot shaft (4) with the special
tool.
Special tool
(A): 09944–28320 (Hexagon socket (19
mm))
9) Remove the cushion rods (5).
10) Remove the cushion lever (6).
Installation
Install the swingarm in the reverse order of removal. Pay
attention to the following points:
• Temporarily tighten the cushion lever upper nut (1)
and cushion lever lower nut (2).
• Install the washer and swingarm pivot shaft.
• Tighten the swingarm pivot shaft (3) to the specified
torque with the special tool.
Special tool
(A): 09944–28320 (Hexagon socket (19 mm))
Tightening torque
Swingarm pivot shaft (a): 100 N·m (10.0 kgf-m,
72.5 lb-ft)
• Tighten the swingarm pivot shaft clamp bolt (4).
(A)
4
3
I822H1230024-01
5
I822H1230025-01
6
I822H1230026-01
1
2
I822H1230027-02
(a)
3
4
(A)
I822H1230030-03

Suzuki VLR1800 Specifications

General

Manufacturer	Suzuki
Model	VLR1800
Compression Ratio	10.5:1
Fuel System	Fuel injection
Starter	Electric
Transmission	5-speed
Category	Cruiser
Displacement	1783 cc
Ignition	Electronic ignition (Transistorized)
Final Drive	Shaft
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Rear Brakes	Single disc
Ground Clearance	140 mm
Seat Height	705 mm
