Drive Chain / Drive Train / Drive Shaft: 3A-5

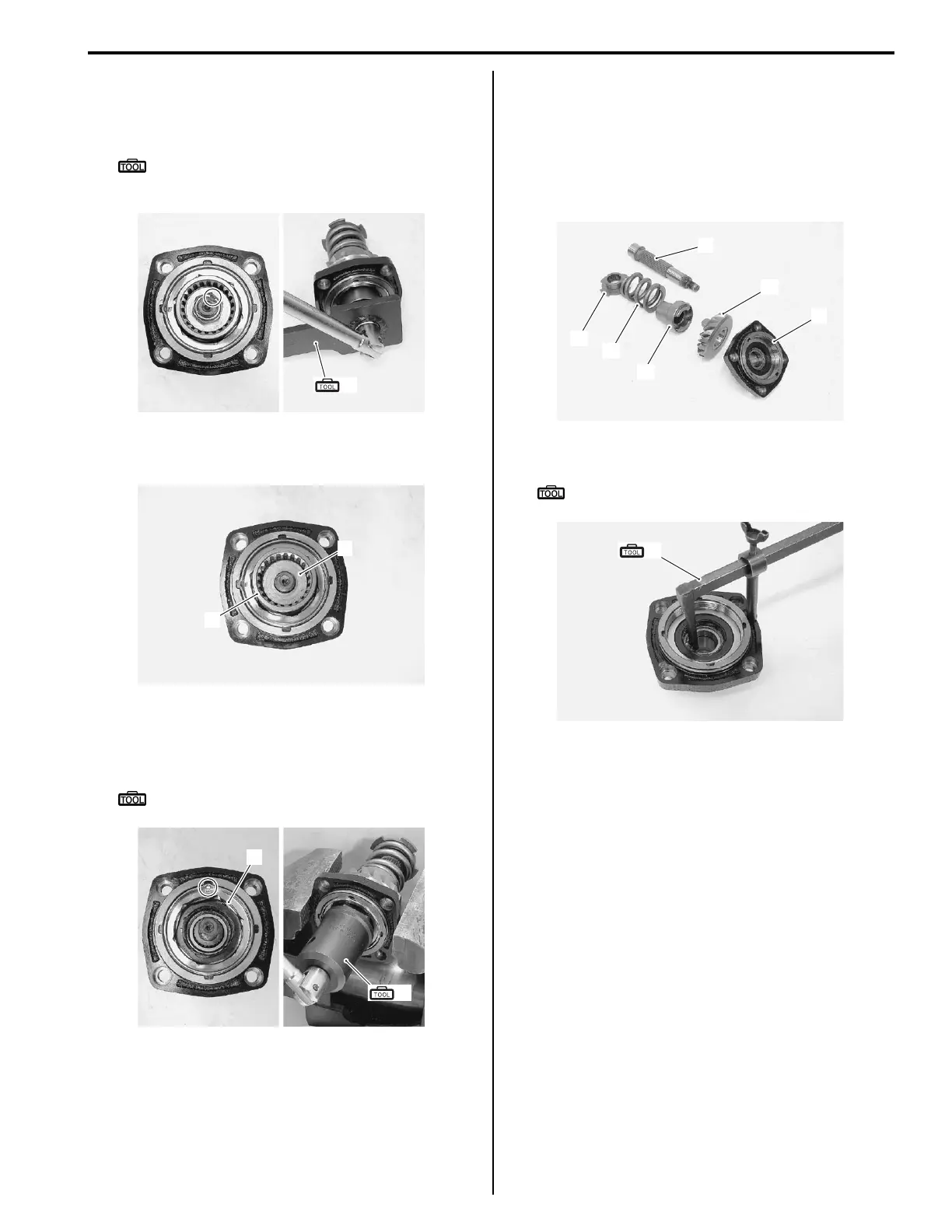

4) Unlock the nut with a chisel.
5) Remove the driven bevel gear coupling nut with the
special tool.
Special tool
(A): 09924–64510 (Final driving gear
coupling holder)
6) Remove the washer (5) and driven bevel gear
coupling (6).
7) Unlock the secondary driven bearing stopper (7).
8) Remove the secondary driven bearing stopper (7)
with the special tool.
Special tool
(B): 09924–41830 (Bearing retainer wrench)
9) Remove the following parts from the shaft (8).
• Bearing housing (9)
• Secondary bevel gear (10)
• Out put cam dog (11)
• Dumper spring (12)
• Spring cam stopper (13)
10) Remove the oil seal with the special tool.
Special tool
(C): 09913–50121 (Oil seal remover)
(A)
I822H1310009-03
5
6
I822H1310010-01
7
(B)
I822H1310011-02
9
11
10
12
13
8
I822H1310012-01
(C)
I822H1310013-01

Suzuki VLR1800 Specifications

General

Manufacturer	Suzuki
Model	VLR1800
Compression Ratio	10.5:1
Fuel System	Fuel injection
Starter	Electric
Transmission	5-speed
Category	Cruiser
Displacement	1783 cc
Ignition	Electronic ignition (Transistorized)
Final Drive	Shaft
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Rear Brakes	Single disc
Ground Clearance	140 mm
Seat Height	705 mm
