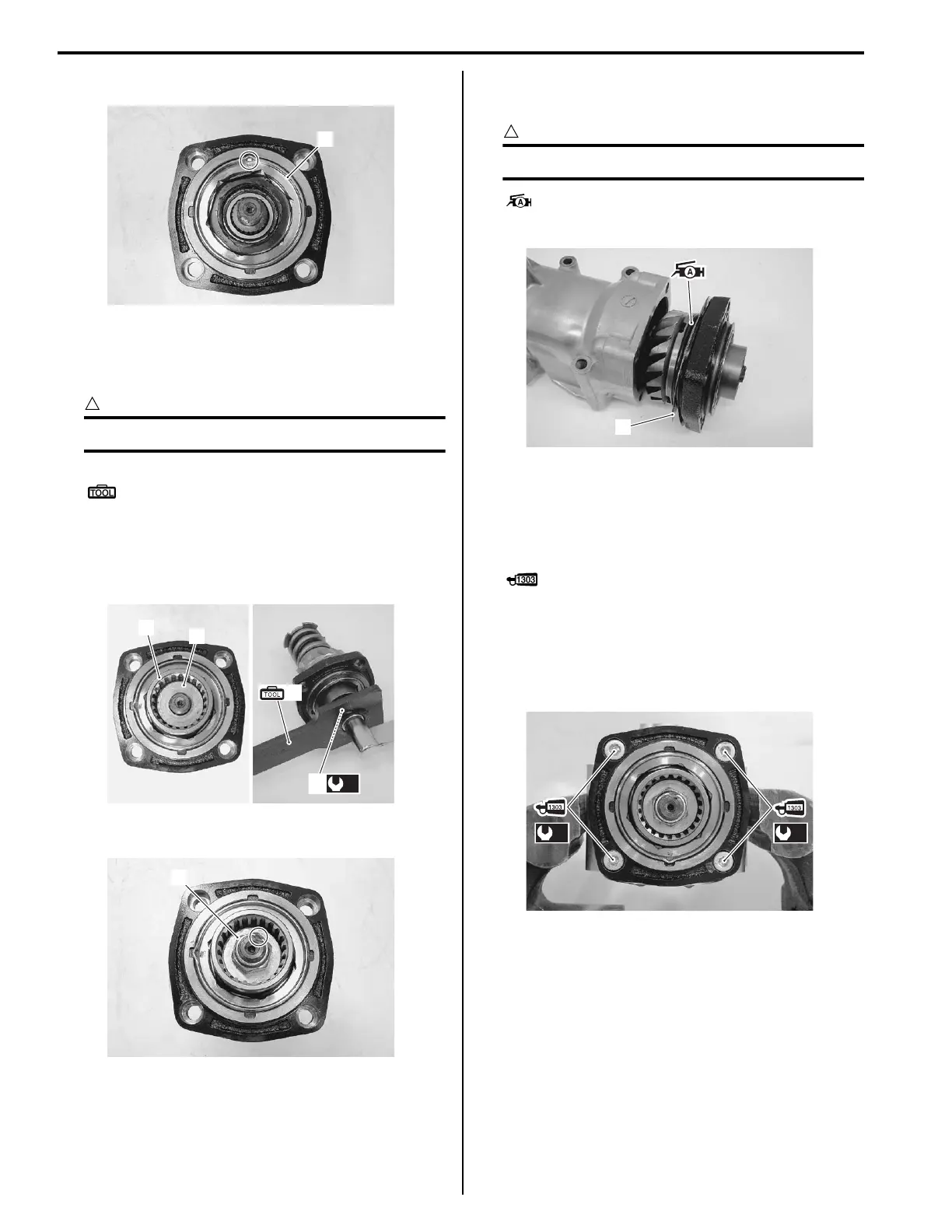

3A-8 Drive Chain / Drive Train / Drive Shaft:
8) Lock the bearing stopper (3) with a center punch.
9) Install the coupling (4) and washer (5).
10) Tighten the coupling nut (6) to the specified torque
with the special tool.
CAUTION
!
Replace the coupling nut (6) with a new one.
Special tool
(C): 09924–64510 (Final driving gear
coupling holder)
Tightening torque
Secondary bevel gear coupling nut (b): 95 N·m (
9.5 kgf-m, 68.5 lb-ft)
11) Lock the coupling nut (6) with a center punch.
12) Install the shims (7).
13) Apply grease to the O-ring.
CAUTION
!
Replace the O-ring with a new one.
: Grease 99000–25010 (SUZUKI SUPER
GREASE A or equivalent)
14) Install the secondary driven gear assembly to the its
case.
15) Apply a small quantity of the thread lock to the
bearing housing bolts and tighten it to the specified
torque.
: Thread lock cement 99000–32030
(THREAD LOCK CEMENT SUPER 1303 or
equivalent)
Tightening torque
Secondary driven gear bearing housing bolt
(c): 50 N·m (5.0 kgf-m, 36.0 lb-ft)
16) Install the secondary driven gear assembly to the
engine assembly and check the backlash and tooth
contact. Refer to “Secondary Driven Gear Assembly
Removal and Installation (Page 3A-3)” and
“Secondary Gear Shim Inspection and Adjustment
(Page 3A-10)”.
3
I822H1310025-01
5
4
(C)
(b)
6
I822H1310026-01
6
I822H1310027-01
7
I822H1310028-01
(c) (c)
I822H1310029-01
