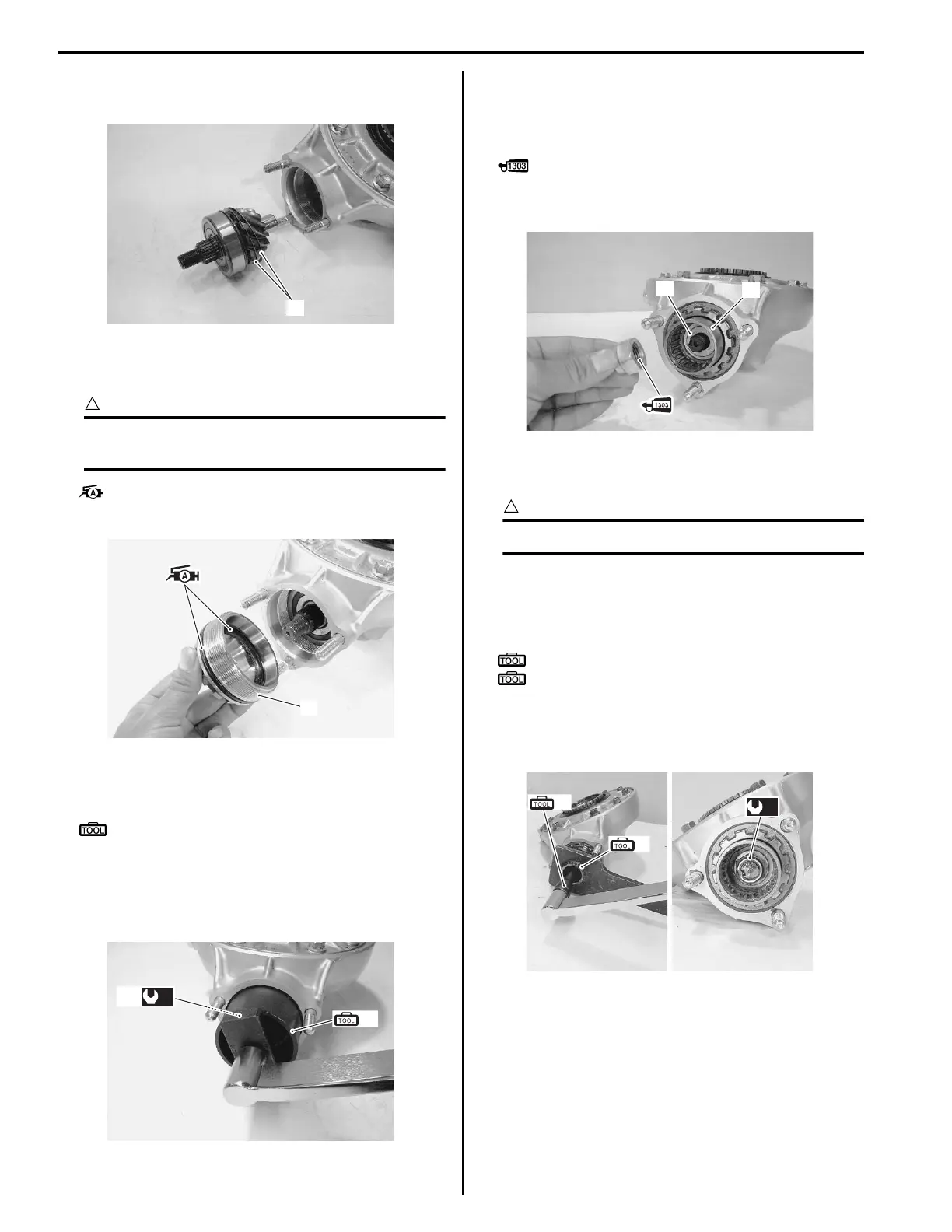

3A-20 Drive Chain / Drive Train / Drive Shaft:
• Install the correct shims (11) to the final drive bevel
gear, and install the bevel gear to the final gear case.
• Apply grease to the O-ring and the lip of the oil seal.
• Install the bearing stopper (12).
CAUTION
!
Use a new oil seal and O-ring to prevent oil
leakage.
: Grease 99000–25010 (SUZUKI SUPER
GREASE A or equivalent)
• Tighten the bearing stopper (12) to the specified
torque with the special tool.
Special tool
(G): 09924–62410 (Final drive gear bearing
holder wrench)
Tightening torque
Final drive bevel gear bearing stopper (c): 110
N·m (11.0 kgf-m, 79.5 lb-ft)
• Install the final drive gear coupling (13) and washer
(14).
• Apply a small quantity of the thread lock to the final
drive gear coupling nut.
: Thread lock cement 99000–32030
(THREAD LOCK CEMENT SUPER 1303 or
equivalent)
• Tighten the nut to the specified torque with the special
tool.
CAUTION
!
Use a new nut.
Tightening torque
Final drive gear coupling nut (d): 100 N·m (10.0
kgf-m, 72.5 lb-ft)
Special tool
(H): 09924–62430 (Long socket (22 mm))
(I): 09924–64510 (Final driving gear coupling
holder)
• Lock the final drive bevel gear coupling nut with a
center punch.
11
I822H1310076-01
12
I822H1310077-01
(c)
12
(G)
I822H1310078-02
13
14
I822H1310079-01
(I)
(H)
(d)
I822H1310080-03
