Suzuki VLR1800 Service Manual

Manual Transmission: 5B-9
Driveshaft

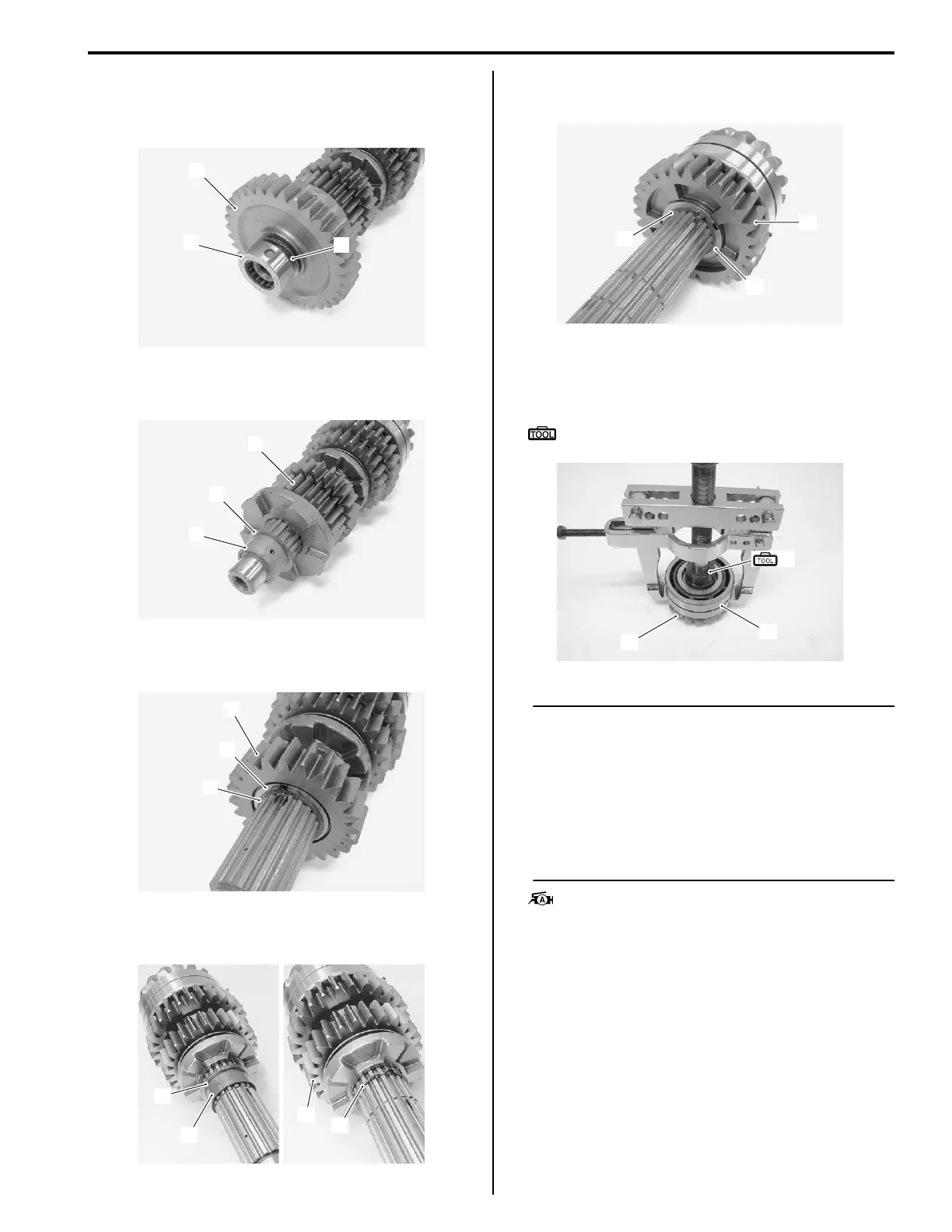

• Remove the bearing (1), washer (2) and 1st driven
gear (3).
• Remove the 1st driven gear bushing (4), washer (5)
and 5th driven gear (6).
• Remove the snap ring (7), washer (8) and 4th driven
gear (9).
• Remove the 4th driven gear bushing (10), washer
(11), snap ring (12) and 3rd driven gear (13).
• Remove the snap ring (14), washer (15), 2nd driven
gear (16) and its bushing.
• Remove the bearing (17) from the secondary drive
gear (18) with the commercially available bearing
remover and special tool.
Special tool
: 09913–70210 (Bearing installer set)
NOTE
• Rotate the bearing by hand to inspect if
there are any abnormal noises and smooth
rotation. Replace the bearing if there is
anything unusual.
• Before installing the gears, apply engine
oil to the driveshaft and countershaft.
• Before installing the oil seal, apply grease
to the oil seal lip.
: Grease 99000–25010 (SUZUKI SUPER
GREASE A or equivalent)
1
2
3
I822H1520027-01
5
6
4
I822H1520028-01
7
8
9
I822H1520029-01
11
10
12
13
I822H1520030-01
14
15
16
I822H1520031-01
(A)
17
18
I822H1520032-01
