TB8100 Service Kit User’s Manual
Power Management Unit Tests
187
Viewing Additional Details

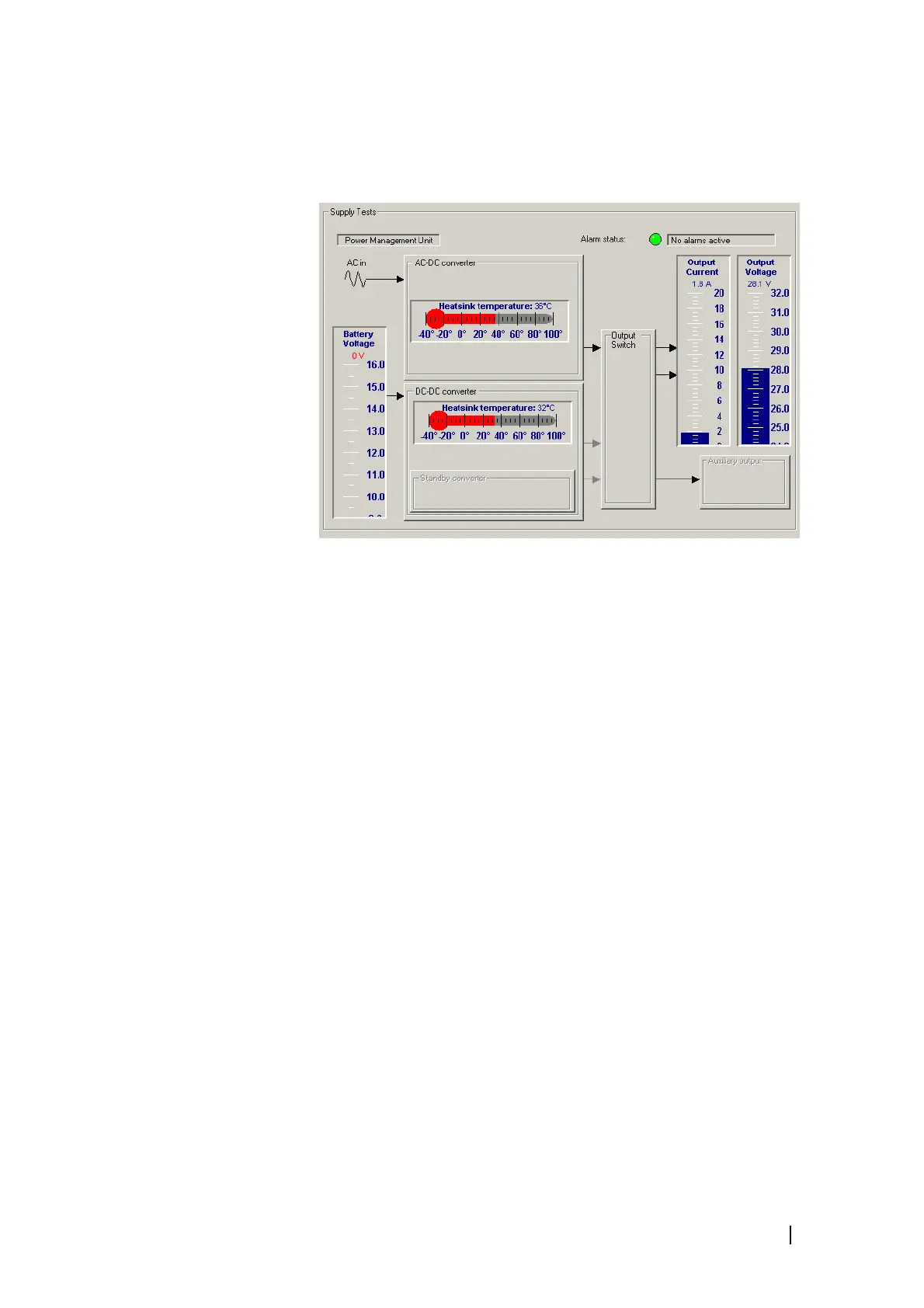

The Supply Tests form
(Diagnose > Power Management Unit > Supply
Details) provides some additional information about the PMU.
The form has a thermometer for each heatsink temperature sensor and an
output voltage gauge. It also shows you all the monitoring information in
Monitor > Monitoring > Power Management.
196
198
Table of Contents
Default Chapter
2
Contact Information
2
Table of Contents
3
Preface
9
Typographical Conventions
9
Associated Documentation
9
Publication Record
10
Issue
10
Introduction
11
From T800 to TB8100
13
Operation Modes
14
Channels
15
Profiles
16
Subaudible Signalling
17
Power Saving
18
Task Manager
19
Modifying Task Manager
19
Tasks and Comments
20
Inputs
20
Actions
20
Custom Inputs and Actions
21
Remote Connections
22
Alarms
23
Alarm Notification Options
23
Enabling Alarm Notification
23
System Interface
24
Software Feature Enabler
25
Getting Started
27
Connecting and Logging on
29
Monitoring Alarms
30
Monitoring the Base Station
31
Viewing Configuration Settings
32
Diagnosing Problems
33
Configuration Tutorial
34
Step 1: Install the Service Kit and Calibration Kit on Your PC
34
Step 2: Connect and Log on
34
Step 3: Read the Base Station's Configuration
35
Step 4: Configure the Base Station as a Talk-Through Repeater
35
Step 5: Configure a Channel
37
Step 6: Set the Default Channel
37
Step 7: Program the Changes into the Base Station
37
Basic Tasks
39
Using the Service Kit
41
Toolbar
41
Status Bar
42
Setting Service Kit Options
43
Setting up and Configuring Connections
44
Physical Connection Options
44
Adding a Connection
47
Adding a Direct Connection
47
Adding a Modem Dialup Connection
48
Adding a Connection that Uses a Port Switch
49
Adding a Network Connection
50
Copying a Connection
51
Editing a Connection
51
Working with the Connections Tree
51
Export and Import of Service Kit Connections
52
Importing Connections
52
Exporting Connections
53
Setting up Automatic Connection at Startup
53
Connecting to a Base Station
54
Connecting Via RS-232
54
Connecting Via Ethernet
55
Logging on
56
Base Station Table
56
Logon Details
57
Changing Base Station Mode
58
Resetting the Base Station
58
Working with Base Station Configurations
59
Creating a New Configuration
60
Reading a Configuration
60
Saving a Configuration
61
Programming a Base Station
61
Creating a Configuration Template
62
Changing Base Station Passwords
63
Access Profiles
64
Viewing an Access Profile
64
Modifying Access Profiles
65
Logging off and Disconnecting
65
Working with Dual-Channel & Multi-Reciter Subracks
66
Working with Different Versions
67
Service Kit Handling of Older Versions
68
Upgrading Base Station Firmware
69
Working with the Software Feature Enabler
71
Enabling Additional Features
71
Disabling a Feature Set
72
Disabling the Alarm Reporting Feature Set
72
Disabling the Advance Profiles and Task Manager Feature Set
72
Disabling the Power Saving Modes Feature Set
73
Disabling the Default Radio System Feature Set
73
Monitoring
75
Module Details
77
Viewing Reciter Information
77
Versions
78
Viewing Power Amplifier Information
78
Versions
79
Viewing Power Management Unit Information
79
Inputs
80
Outputs
80
Versions
80
Operational Information
81
Monitoring the Current Channel
81
Current Channel
81
Profile Information
81
Current Source
82
Monitoring the Reciter
83
Monitoring the Power Amplifier
84
Monitoring the Power Management Unit
85
Configuring the Base Station
89
Choosing a Configuration
91
Configuring General Options
92
Configuring the System Interface
94
Viewing System Interface Details
94
Configuring External Channel Selection
95
Mapping Digital Inputs to Channel Selection Bits
95
Configuring RSSI Output
96
Converting between Microvolts and Dbm
98
Configuring Fan Control
99
PA Fan Control
99
Emulating T800 Fan Operation
99
Select Fan Type
100
Configuring Miscellaneous Items
101
Tx Relay Operation
101
Minimum Battery Voltage
102
Auxiliary Power Control
102
CTCSS Characteristics
103
Reverting to Run Mode
103
External Clock Reference Frequency
104
Enabling Automatic Entry into CCI Mode
104
Printing a Base Station Configuration
105
Configuring Channels
107
Getting Started with Channels
109
Customizing the Default Channel Profile
110
Customizing the Default Signalling Profile
112
Using Advanced Profile Features
113
Working with Channel Profiles
114
Adding a Channel Profile
114
Configuring Receiver Gating
116
Configuring Power Saving
117
Editing a Channel Profile
118
General
118
Receiver Gating
121
Signal Path
124
Power Saving
131
CWID System
132
Task Manager
134
Tone on Idle
135
Working with Signalling Profiles
136
Adding a Signalling Profile
136
Setting up a Reminder Tone
138
Editing a Signalling Profile
139
Subaudible Signalling
139
Tx Timers
142
Advanced
144
Task Manager
145
Working with the Channel Table
146
Channel Table Details
146
Columns
146
Buttons
148
Editing a Channel (Default Profiles)
149
Editing a Channel (Custom Profiles)
149
Adding and Copying Channels
150
Block Copying Channels
150
Importing Channels
151
Exporting Channels
151
Selecting a Channel
152
Printing Channel Data
153
Alarms
155
Monitoring Alarms
157
Reciter
158
Power Amplifier
159
System
161
Power Management Unit
163
Viewing Recent Alarms
165
Disabling Unwanted Alarms
166
Altering Alarm Thresholds
167
Notifying Alarms
169
Notifying over the Air
169
Notifying over the Line
170
Configuring Alarm Center Communications
172
Configuring Port Switch Commands and Responses
173
Configuring Email Messaging
174
Configuring Syslog Communications
175
Diagnosing
177
Carrying out Diagnostic Tests
179
System Tests
180
Control Panel Tests
180
Reciter Tests
182
Receiver Tests
182
Testing Receiver Operation
182
Testing Receiver Sensitivity
183
Measuring Received Signal Levels
183
Determining Synthesiser Lock Ranges
184
Audio I/O Tests
185
Measuring the Audio Input Level
185
Generating an Audio Output
186
Digital I/O Tests
186
Testing Hardware Channel Selection
187
Testing Digital Outputs
187
Testing the Rx Gate Output
188
Testing the Coaxial Relay Driver
188
Testing Digital Inputs
189
Detecting Subaudible Signalling
189
Power Amplifier Tests
191
Control Tests
191
Testing the PA Fault LED
191
Testing the Fan
192
Testing the Transmitter
192
Power Management Unit Tests
195
Control Tests
195
Simulating AC Mains Failure
195
Testing the Fan
195
Testing the PMU Fault LED
196
Testing the Auxiliary Power Output
196
Viewing Additional Details
197
Task Manager
199
Accessing Task Manager
201
Working with Task Manager
202
Maintaining the Task List
202
Adding a Task
203
Adding a Comment
204
Disabling a Task
204
Importing Tasks
205
Exporting Tasks
205
Task Manager Inputs and Actions
206
Inputs
206
General Inputs
206
Channel Profile Inputs
208
Signalling Profile Inputs
210
System I/O
211
Alarm Inputs
212
Custom Inputs
215
Actions
215
General Actions
215
Channel Profile Actions
221
Signalling Profile Actions
223
System I/O
224
Alarm
225
Custom Actions
226
Customizing Task Manager
227
Working with Custom Inputs
227
Viewing a Custom Input
227
Defining a Custom Input
228
Working with Custom Actions
228
Viewing a Custom Action
229
Defining a Custom Action
229
Working with Custom Alarms
229
Defining Counters, Timers, and Flags
230
Monitoring Task Manager
231
Viewing System Flag States
231
Monitoring Recent Actions
234
Viewing Timers
234
Viewing Counters
234
Viewing Flag States
234
Glossary
235
Index
245
Tait General Software Licence Agreement
253
