Module Details
The Service Kit can display details about the reciter, PA, and PMU of the base
station you are logged on to. Items under the heading Module Details give you
information about the module such as its frequency range and firmware version.
To monitor the way the base station is operating, see “Operational
Information” on page 71.
Viewing Reciter Information

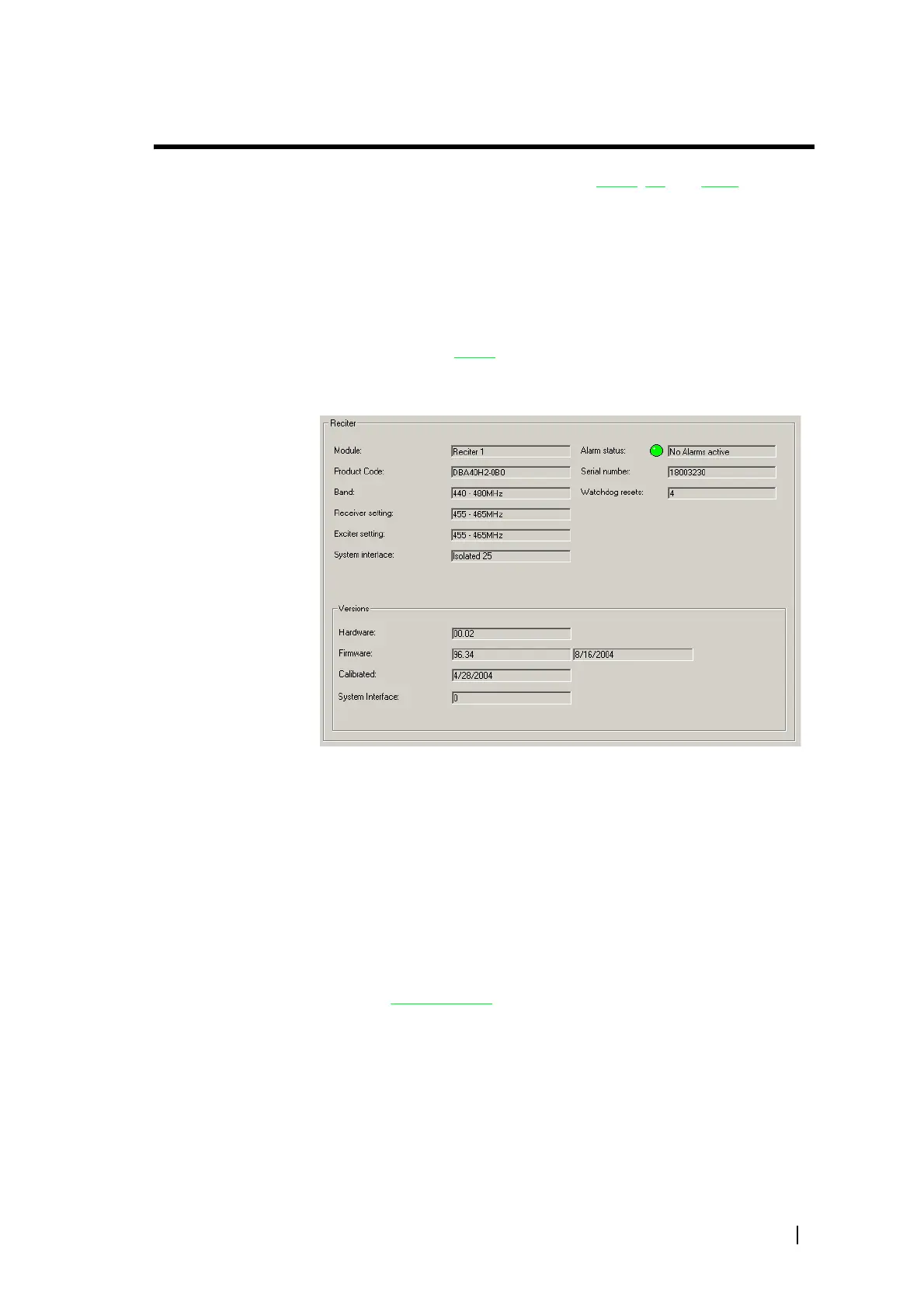

The Reciter form (Monitor > Module Details > Reciter) lets you view
information about the reciter
module of the base station you are logged on to.
Use it to confirm exactly what it is that you are dealing with.
The form has several read-only fields, an LED indicating whether there are any
reciter alarms, and an area that gives version information.
Module The name of the module (reciter) followed by a number. This number is set by
the rotary switch on the front of the reciter and plays a role in control bus
communications within the subrack.
Product code The product code and name for the type of reciter.
Band The RF frequency band of the reciter. This is the frequency range that the
reciter is type-approved to operate in.
Receiver setting The current switching range of the receiver. This can be changed using the
Calibration Kit.
Exciter setting The current switching range of the exciter. This can be changed using the
Calibration Kit.
System interface The type of system interface card that the reciter is fitted with.
