Alarm status Indicates whether the reciter currently has any alarm conditions. If the LED is
green, there are no active reciter alarms. If the LED is red, the text box displays
‘Alarms active,’ and there is at least one active alarm. To see which alarm is
active, select Monitor > Alarms > Current Status.
Serial number A unique identifier assigned to the reciter in the factory.
Watchdog resets The total number of times that the watchdog circuit reset the reciter because
the reciter firmware locked up.
Versions
The Versions area (Monitor > Module Details > Reciter) displays version
numbers for aspects of the reciter.
Hardware The version number of the reciter’s hardware.
Firmware The version number of the reciter firmware and its creation date.
Calibrated The date when the reciter was last modified using the Calibration Kit. (This
includes adjusting the switching range and tuning the frequency response.)
System interface The version number of the system interface board installed in the reciter.
Viewing Power Amplifier Information

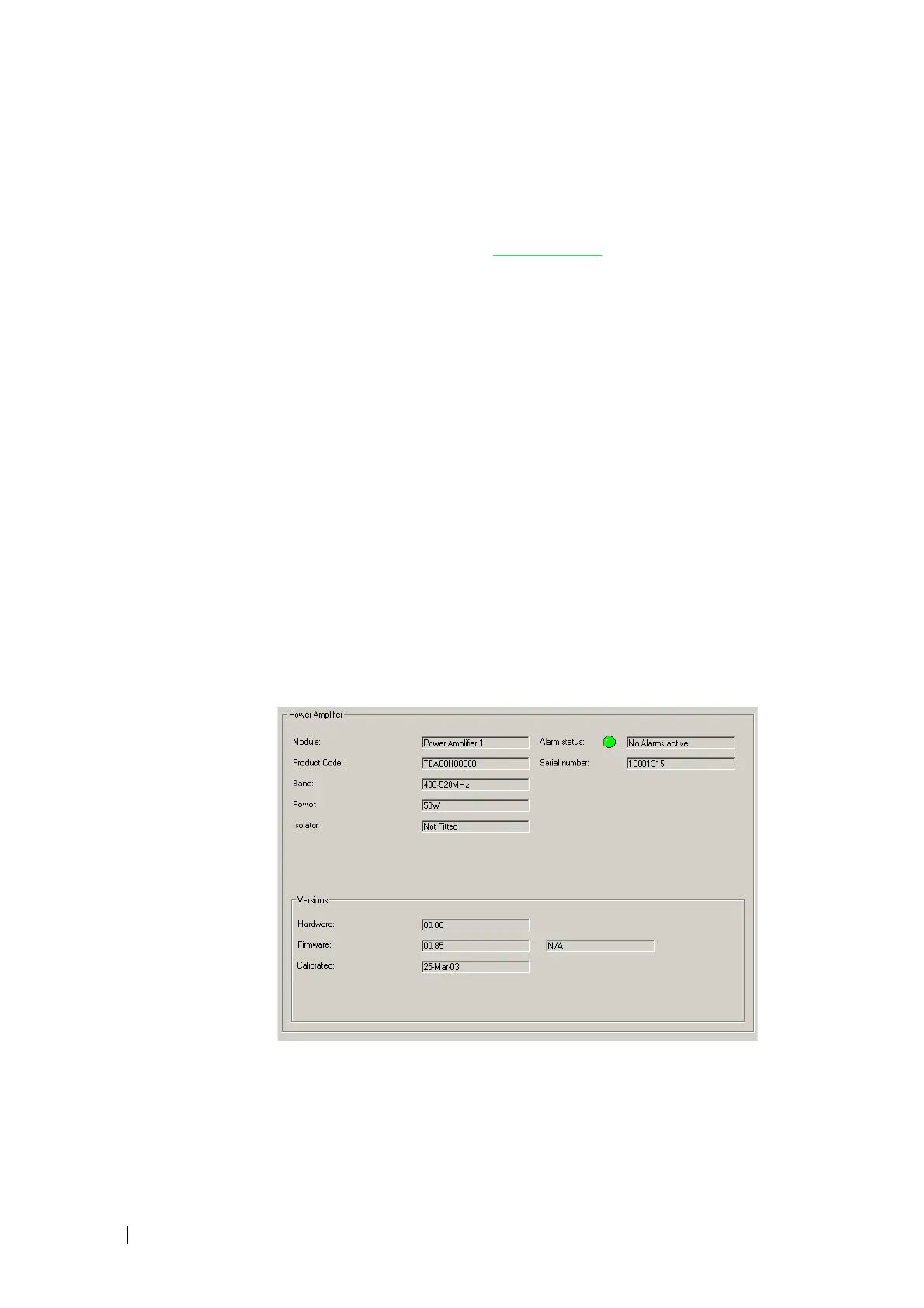

The Power Amplifier form (Monitor > Module Details > Power Amplifier) lets
you view information about the PA module of the base station you are logged
on to. Use it if you need to confirm exactly what it is that you are dealing with.
Module The name of the PA. This non-editable name is used internally to identify the
PA.
Product code The product code and name for the type of PA.
