TB8100 Service Kit User’s Manual Module Details 69
Band The RF frequency range that the PA is type-approved to operate in.
Power Specifies the RF power output rating of the PA. There are 5 W, 50 W, and
100 W variants.
Isolator Indicates whether the PA is fitted with an optional isolator.
Alarm status Indicates whether the PA currently has any alarm conditions. If the LED is
green, there are no active alarms. If the LED is red, the text box displays ‘Alarms
active,’ and there is at least one active alarm. To see which alarm is active, select
Monitor > Alarms > Current Status.
Serial number A unique identifier assigned to the PA in the factory.
Versions
The Versions area (Monitor > Module Details > Power Amplifier) displays
version numbers for aspects of the PA.
Hardware The version number of the PA hardware.
Firmware The version number of the PA firmware and the date when the PA was updated
to its current firmware.
Calibrated The date when the PA was last calibrated using the Calibration Kit.

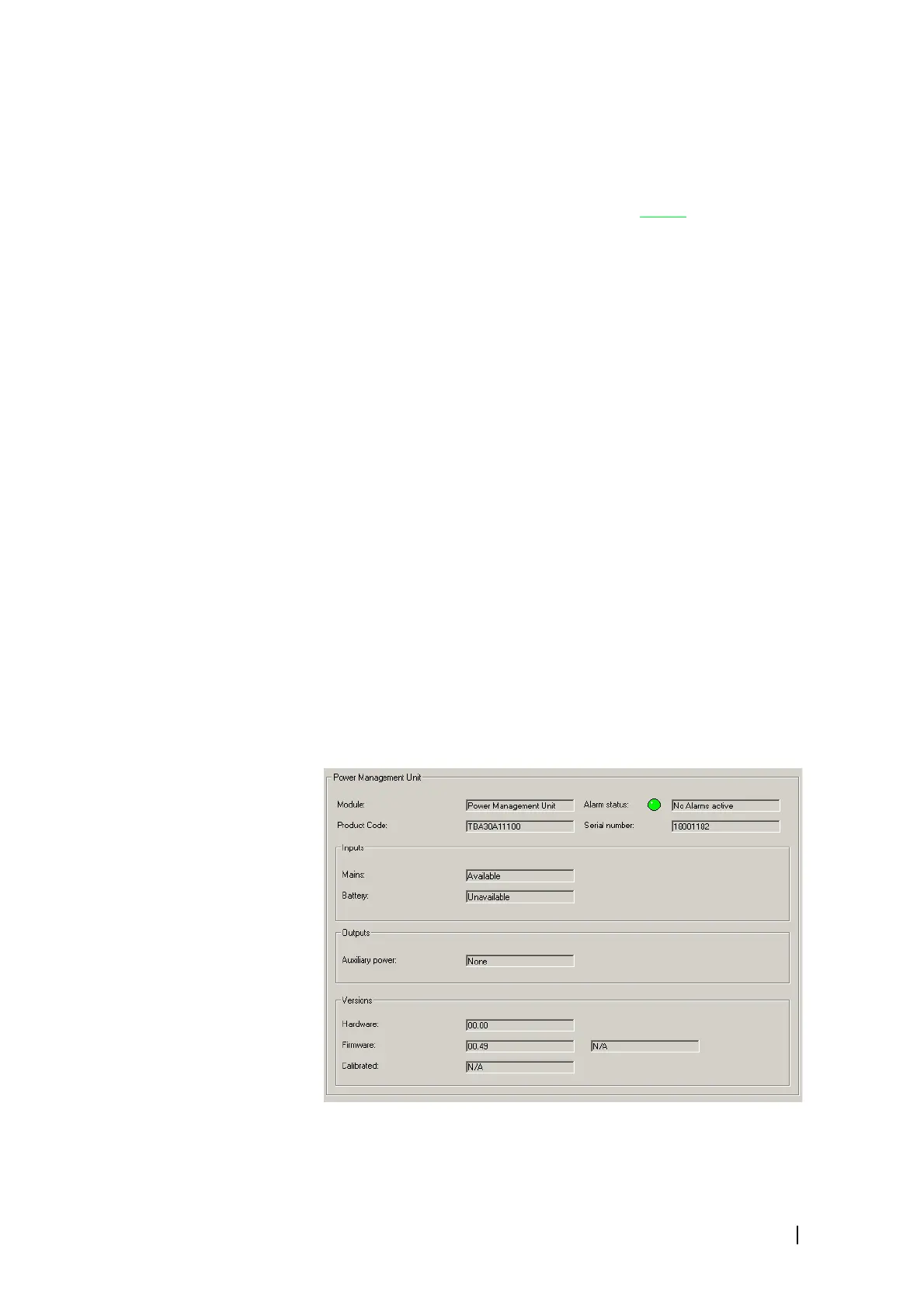

Viewing Power Management Unit Information
The Power Management Unit form (Monitor > Module Details > Power
Management Unit) lets you view information about the PMU of the base
station you are logged onto. Use it if you need to confirm exactly what it is that
you are dealing with.
Module The name of the PMU. This non-editable name is used internally to identify
the module on the rack frame bus.
