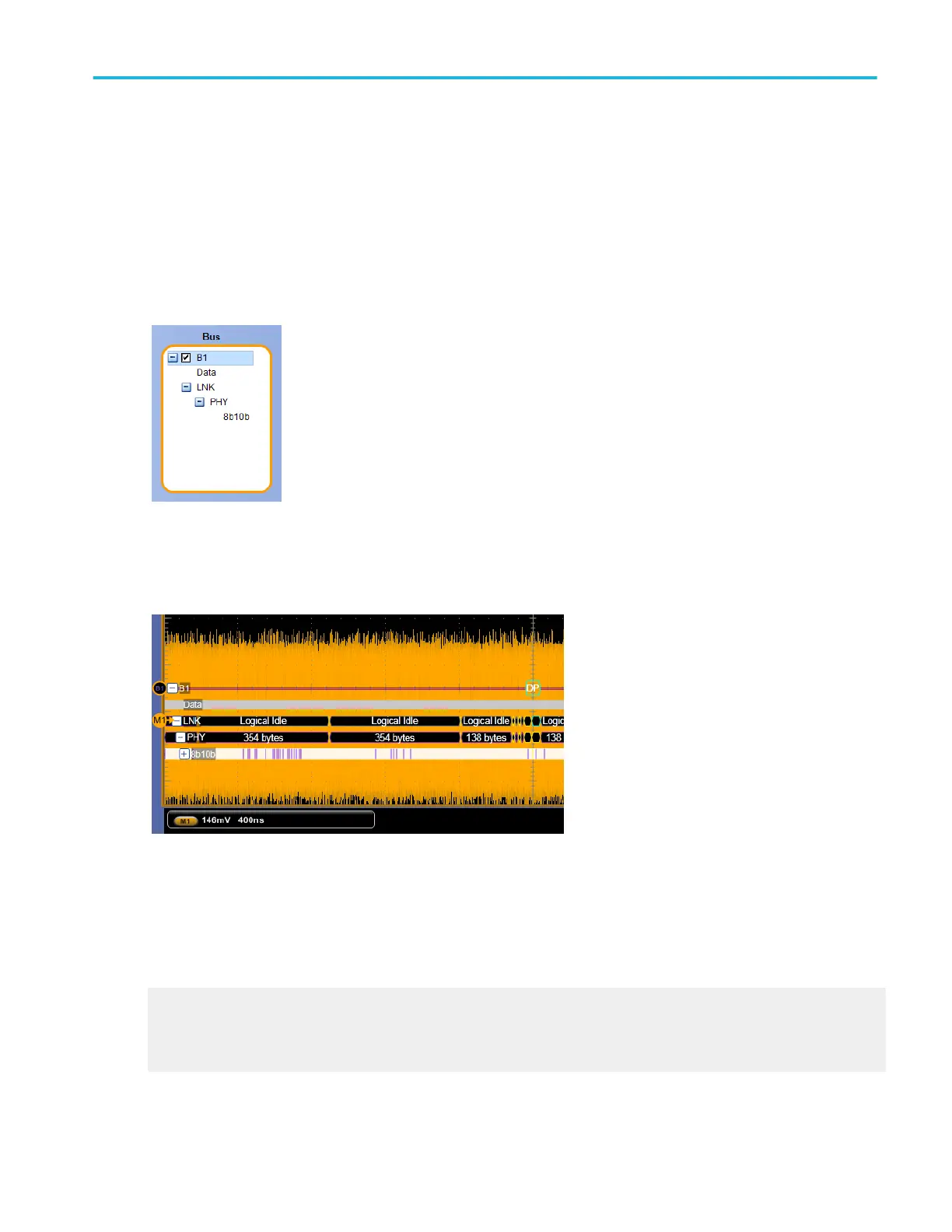

Select the bus display view

From the Bus Setup window, select the Display tab.

To use

■

Scroll through the Bus list and select the bus to configure.

■

Click a + box to display additional views, or click a - box to remove views.

Bus views may also be added or removed from the display by clicking on the + box or - box in the display. Available views may

include Transaction/transport, link/framing/packets, physical/bytes/symbols, and bit level.

Behavior

■

Clicking on a + box displays additional views of a bus.

■

Clicking on a - box removes bus views from the display.

What do you want to do next?

Learn more about bus setups.

Learn about bus configuration.

Learn about digital setups.

Bus setups
