Triggering with horizontal delay on
You can use horizontal delay when you want to acquire a waveform record that is separated from the trigger event by a
significant interval of time. The horizontal delay function can be used with any trigger setup.
You can turn horizontal delay on and off from the front panel, the Horizontal/Acquisition control window, and many of the Trigger
control windows.

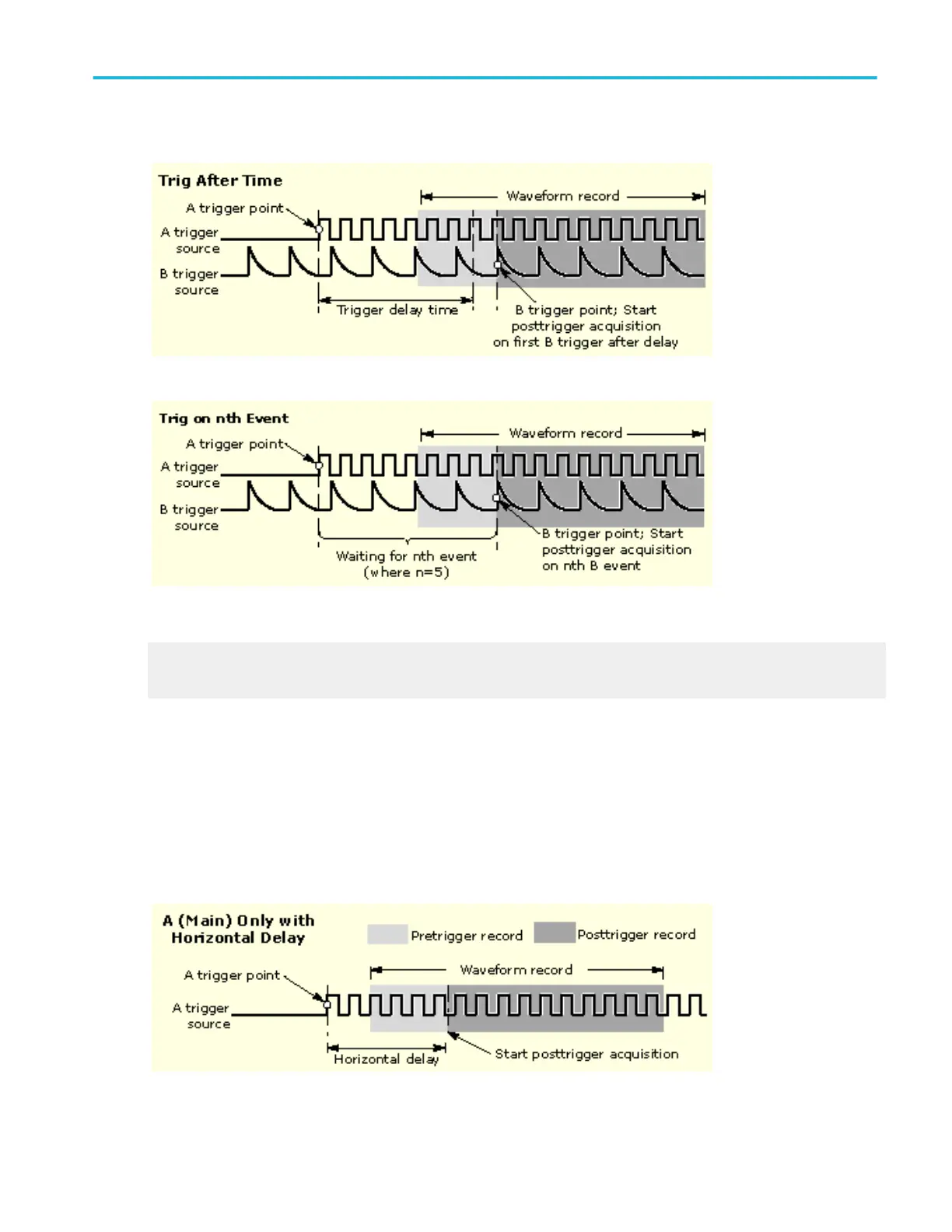

The next figure compares the sequential trigger choices A Only, Trig After Time, and Trig on nth Event when horizontal delay is
on. Each illustration shows where pretrigger and posttrigger data is acquired relative to the trigger event.
Oscilloscope reference
DPO70000SX, MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO/DPO5000B Series 675
