Nyquist frequency

The highest frequency that any digital oscilloscope can measure without errors is one-half of the sample rate or frequency. This

frequency is called the Nyquist frequency.

The FFT waveform displays the input signal frequency components from DC (0 Hz) to the Nyquist frequency.

■

Continue

■

The FFT display

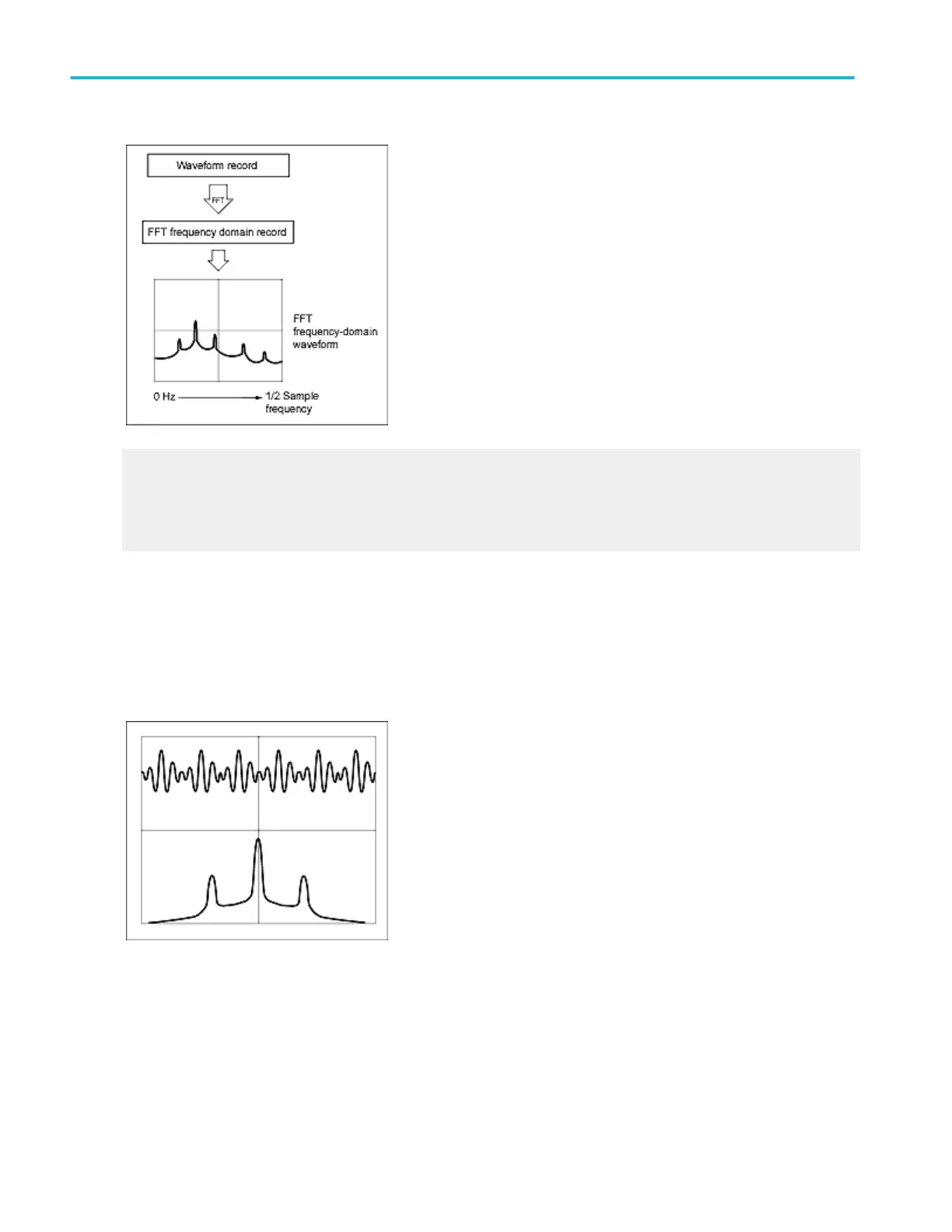

The following illustration shows a typical time-domain waveform and the frequency components of that signal as part of the math

FFT waveform.

■

Continue

■

Math setups

256 DPO70000SX, MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO/DPO5000B Series
