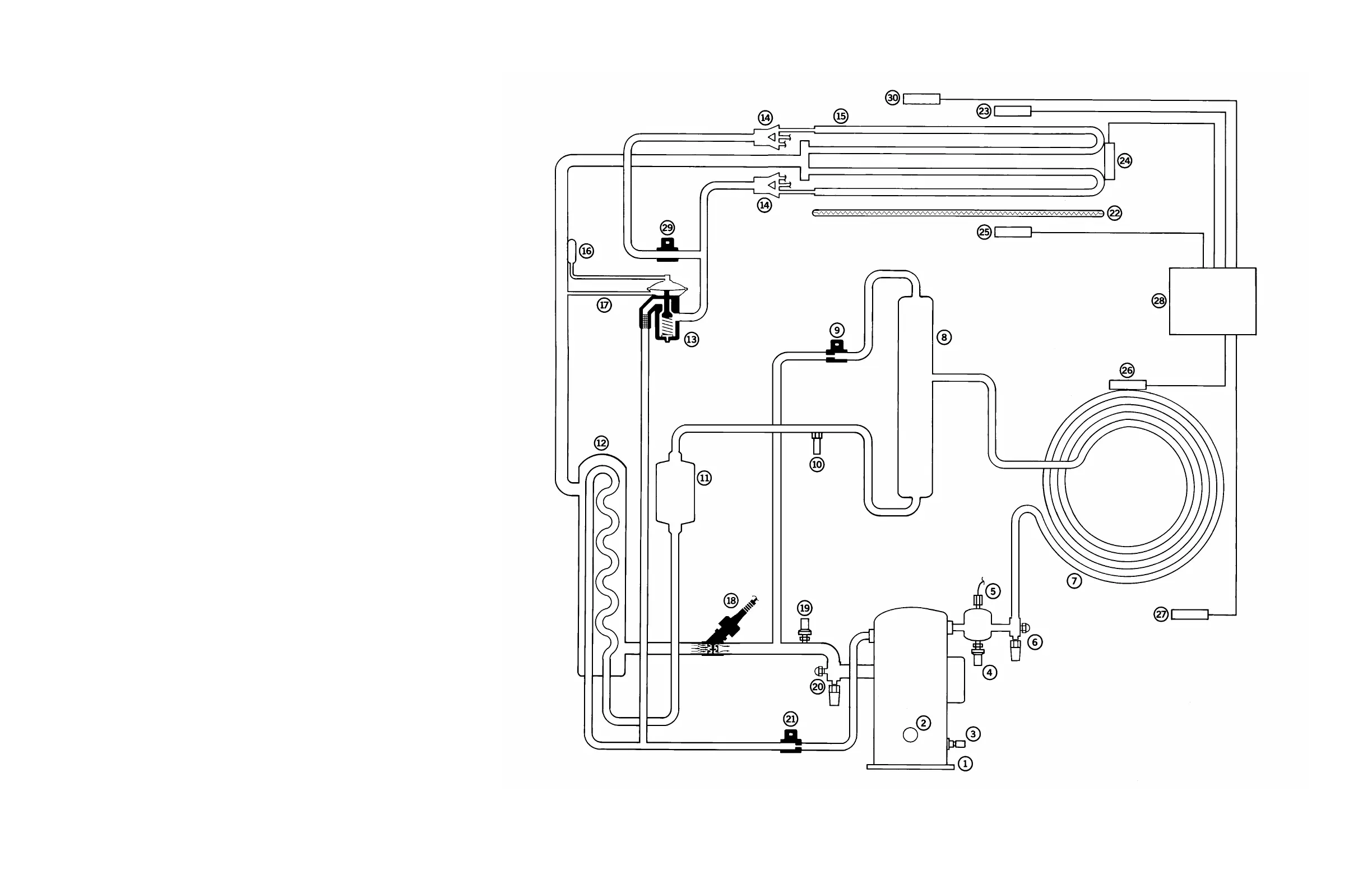

CSR Refrigeration System Components
1. Scroll Compressor
2. Sight Glass
3. Oil Fill / Drain Fitting
4. High Pressure Cutout Switch
5. Compressor Discharge Line Temperature Sensor
6. Discharge Service Valve (Option)
7. Condenser Coil (Circular)
8. Receiver Tank
9. Warm Gas Bypass Valve
10. High Pressure Relief Valve
11. Dehydrator (Filter Drier)
12. Heat Exchanger
13. Expansion Valve (TXV)
14. Distributor
15. Evaporator Coil
16. Expansion Valve Feeler Bulb
17. Equalizer Line
18. Stepper Motor Valve
19. Low Pressure Cutout Switch
20. Suction Service Valve
21. Liquid Injection Valve
22. Electric Heater
23. Return Air Sensor
24. Defrost (Evaporator Coil) Sensor
25. Supply Air Sensor
26. Condenser Coil Sensor
27. Ambient Sensor
28. Controller (MP-3000)
29. Coil/Dehumidify Solenoid Valve
30. Humidity Sensor
