Thermo King CSR Series User Manual

Unit Description
41
AXA0231
11
10
9
14
1
2
3
4
5
6
7
8
12
13
1. Remote Monitoring Modem (RMM) Option 8. Cable No. 1 Connection to Controller
2. Communication Cable for RMM Option 9. Control Box Cover and Controller Keyboard Decal
3. Control Circuit Fuses, 2 ampere (2) 10. Special Function Keypad
4. Battery Cable Connection to Controller 11. General Purpose Keypad
5. Cable No. 2 Connection to Controller 12.
LCD Display (Setpoint Temperature, Message and
Controller Main Menu Tree Display)
6. Download Cable Connection to Controller 13.
LED Display (Return or Supply Air Temperature
Display and Status Indicator LEDs)
7. Cable No. 3 Connection to Controller 14. MP-3000 Controller

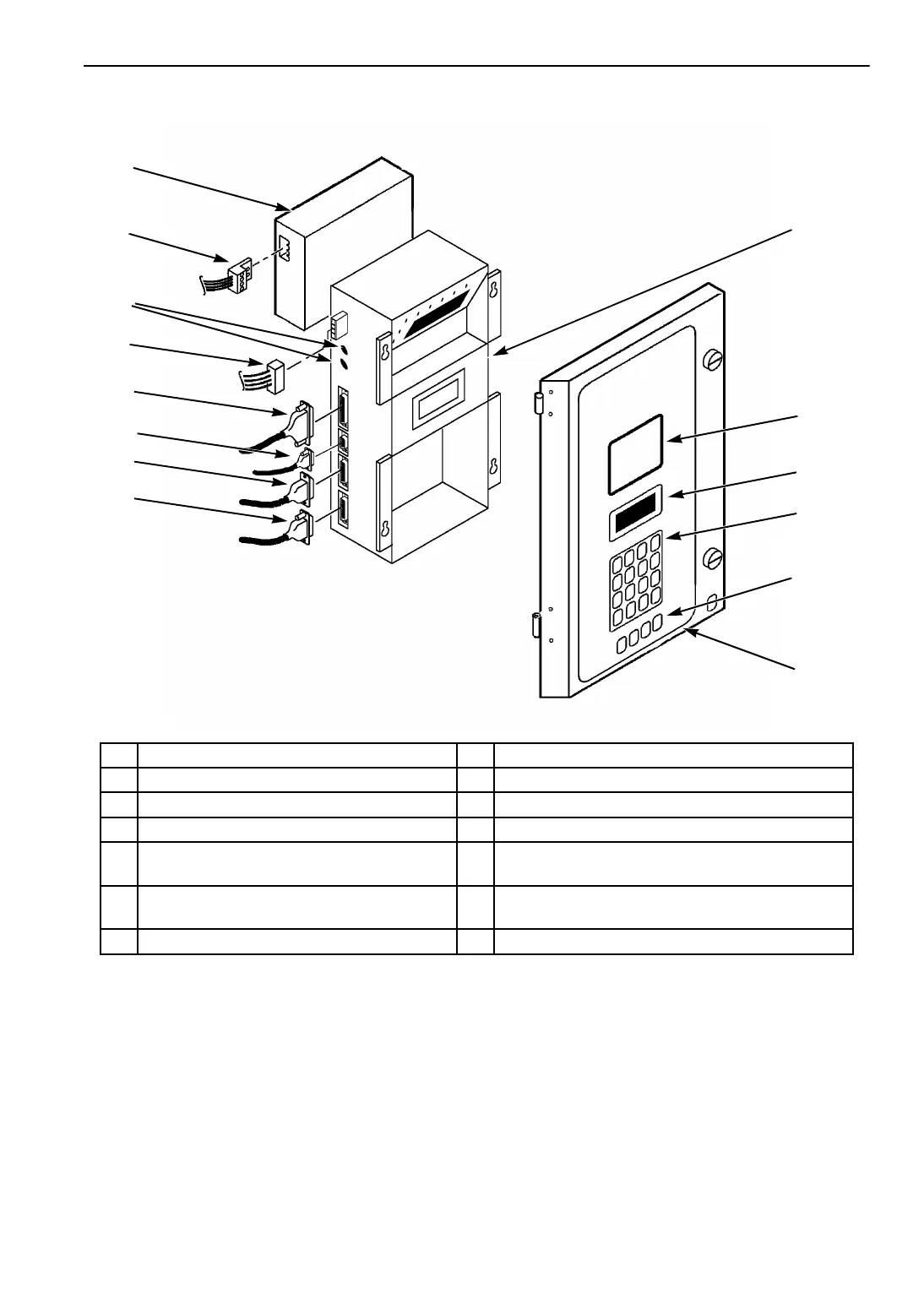

Figure 11: MP-3000 Controller
