Thermo King CSR Series User Manual

Unit Description
45
AXA0235
1
2
4
3
5
6
10
9
8
7
1. Gas Sensor Assembly (Mounts in Evaporator),
see page 37 or 38
6. Damper Motor Assembly Mounting Bracket
2. Gasket 7. Interface Board and Cable (Mounts in Control Box),
see page 42
3. Vent Door Assembly 8. Stop Bracket, Vent Door Full Open
4. Linkage Assembly 9. Stop Bracket, Vent Door Closed
5. Damper Motor Housing 10. Grille

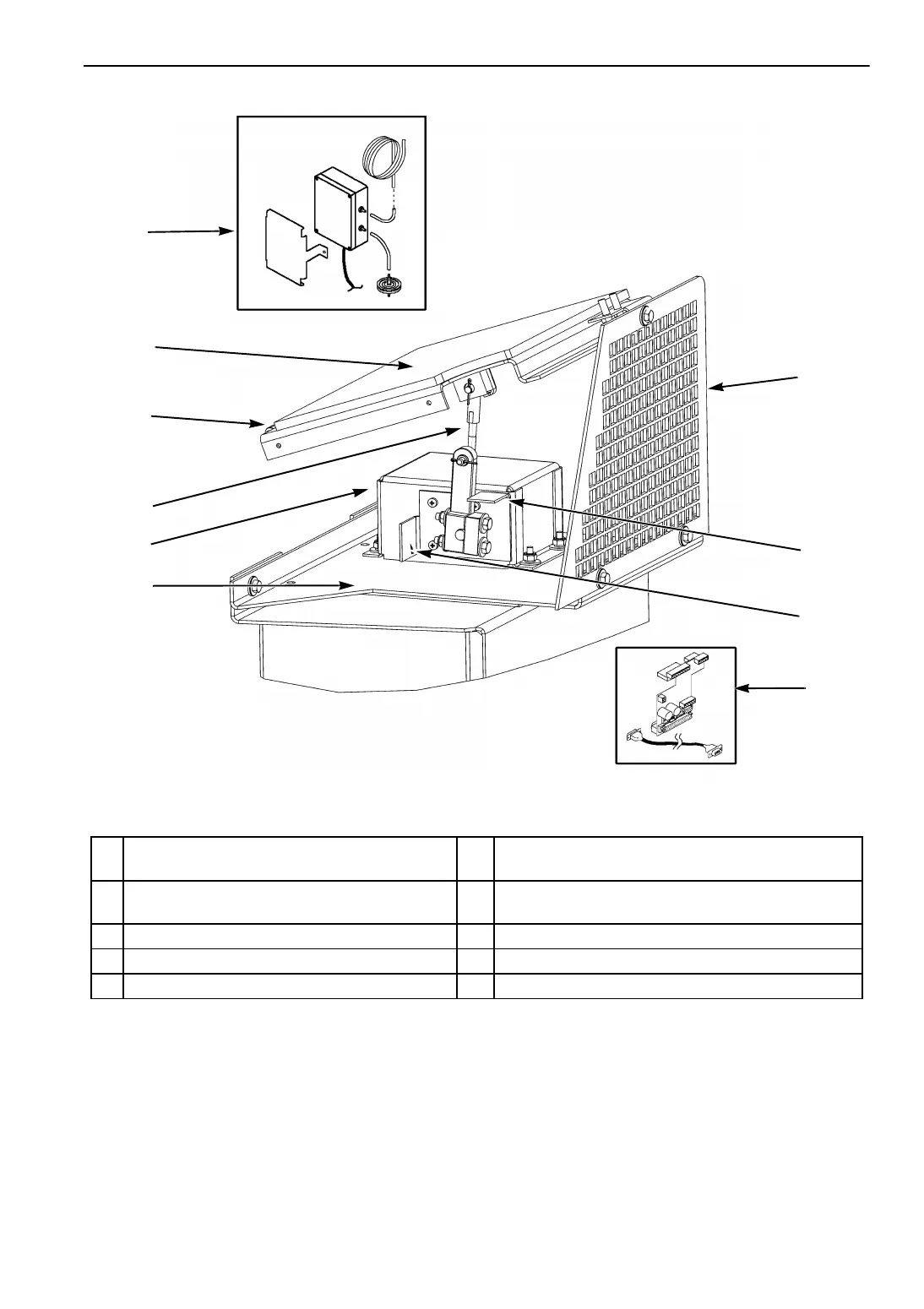

Figure 15: Advanced Fresh Air Management (AFAM+) Option
