Unit Description
48
AXA0238
1
2
4
5
6
3
1. Evaporator Grille
2. Air Channels
3. Fresh Air Inlet
4. Top Rear Plate
5. Bottom Rear Plate
6. Receptacle Panel:
• Controller Communications and Data Download Port
• USDA1/Spare 1 Sensor Connection
• USDA2/Spare 2 Sensor Connection
• USDA3/Spare 3 Sensor Connection

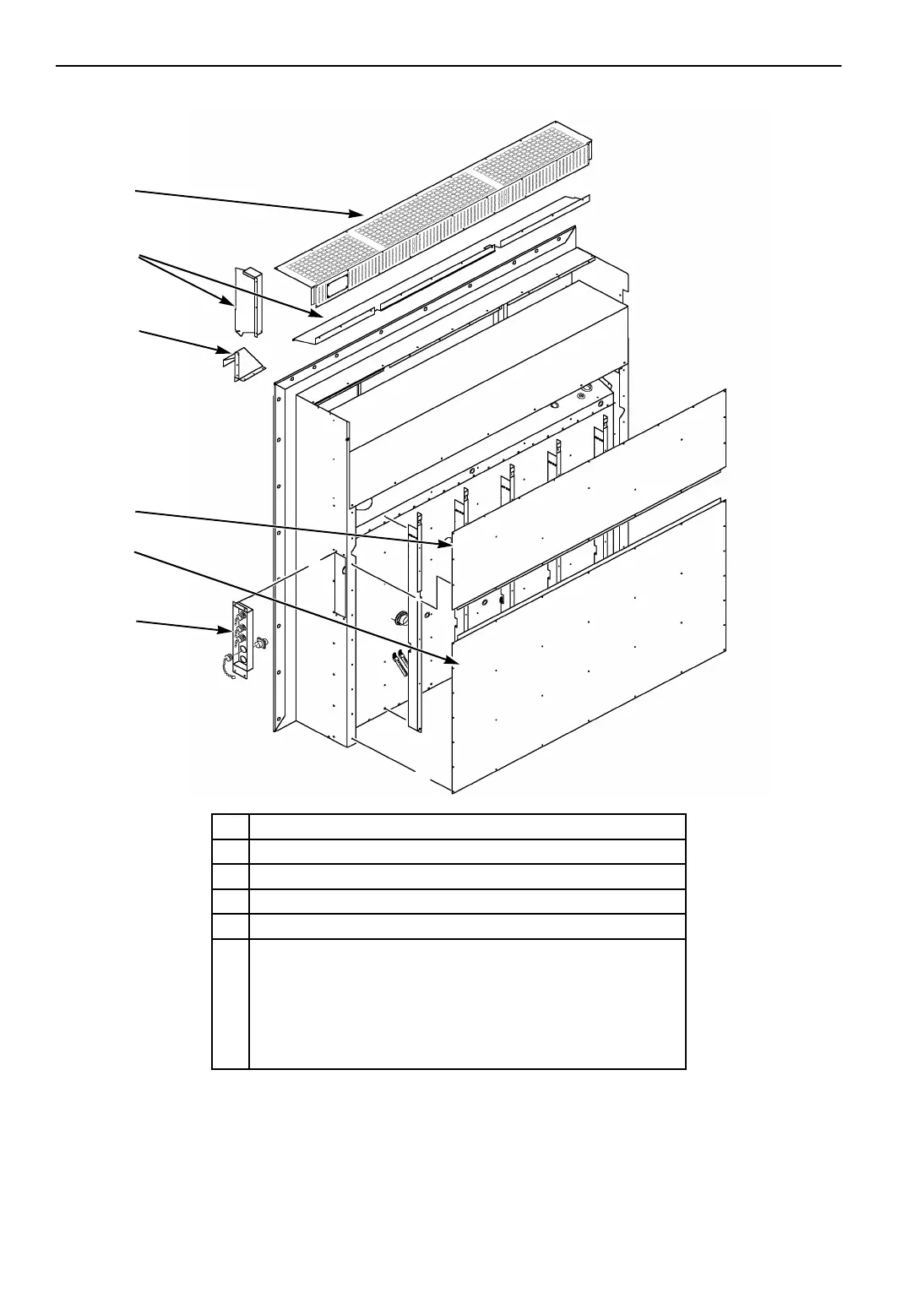

Figure 18: Unit Back View — All Models without Heater Access Door
