CONTROL PANEL
5 - 1
5. CONTROL PANEL
5.1 General Description
The control panel consists of button switches and touch-panel switches to operate the equipment and
select various modes, and LEDs and an LCD to display the state of the equipment or the messages.
When the operator’s attention is required, graphic symbols light or blink with messages explaining the
condition of the equipment in the LCD panel. When paper jams and “Call for service” occur, error codes
are also displayed to notify users of the problem.
A color LCD is used in this equipment so that visibility and operability are improved.
The [ON/OFF] button is placed on the control panel of this equipment. Use this button instead of the
main power switch to turn ON/OFF the power.
Press the [ON/OFF] button for 1 second or more to turn ON/OFF the power of the equipment.

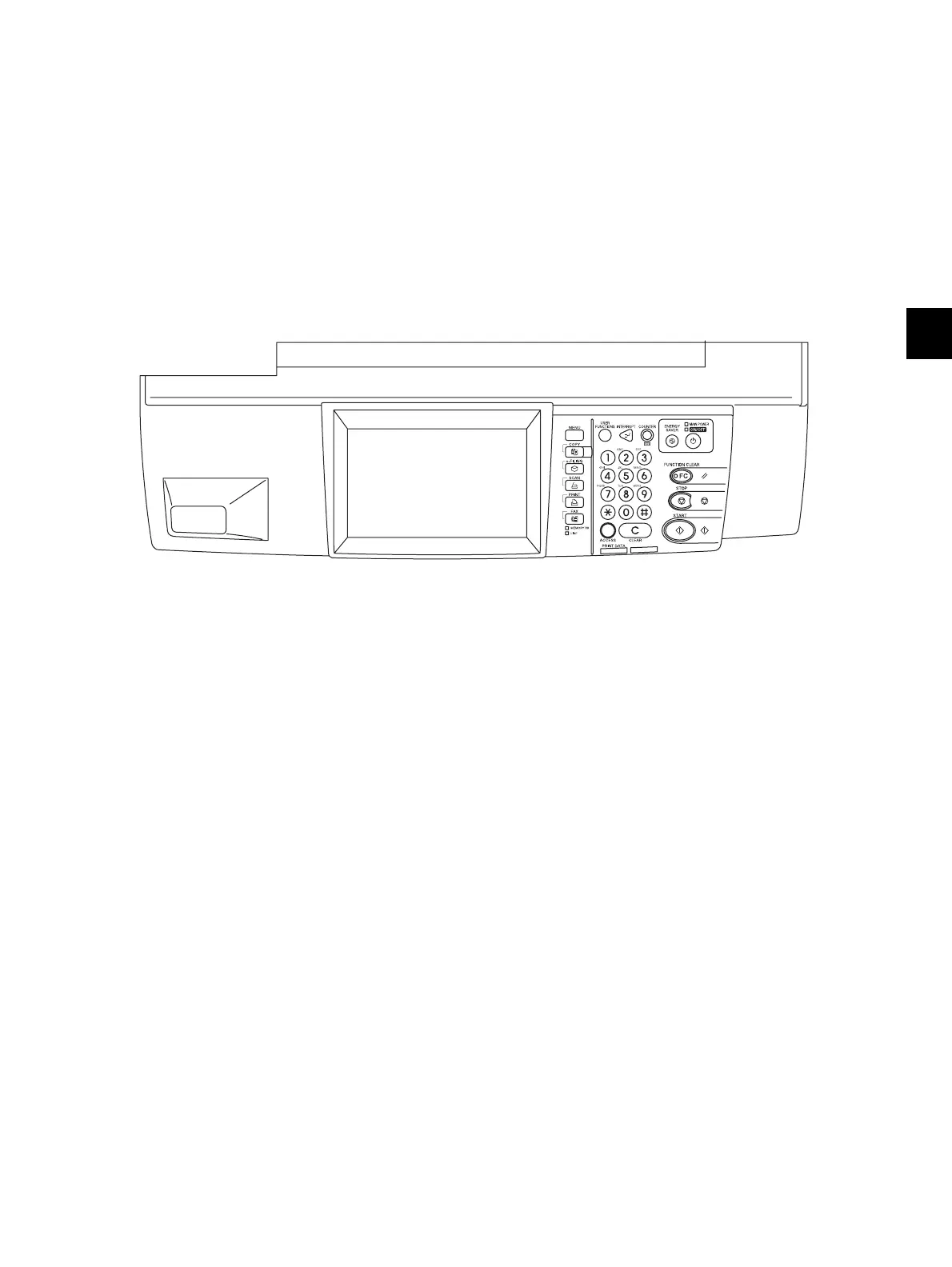

Fig. 5-1

Toshiba e-studio555 Specifications

Power

power supply	120 Volts; 20 Amps
power consumption	Maximum 2.0kW
warm-up time	Appx. 130 Seconds

Printing and Copying

copy/print resolution	2400 x 600 dpi
copy/print speed	55 / 65 / 75 / 85 cpm
print speed	55 / 65 / 75 / 85 ppm

Scanning

scan speed	80 spm LT-Size @300 dpi
scan resolution	150 dpi, 200 dpi, 300 dpi, 400 dpi, 600 dpi
file format	TIFF, PDF, JPEG, XPS, MS Word, MS Excel, Searchable PDF w/ Adv. Scanning option

Memory and Storage

memory	1GB RAM, 60 GB HDD
fax memory transmission	500MB (HDD)
reception	500MB (HDD)

Connectivity

connectivity	Ethernet 10/100BaseT, USB 2.0, 802.11b/g Wireless LAN, Bluetooth (HCRP)
protocol support	IPX/SPX, TCP/IP (IPV4/V6), EtherTalk, AppleTalk PAP, LPR/LPD, IPP w/Authentication, Port 9100
operating systems	Windows 2000/XP/2003/Vista/2008, Mac X OS 10.2.4/10.3/10.4/10.5, UNIX, Linux, CUPS

Weight and Dimensions

dimensions	28” x 31” x 46” (W x D x H)
weight	462 lbs
standard paper supply	2 x 500-Sheet Drawer; 2 x 1, 250-Sheet Tandem Drawer; 100-Sheet Stack Feed Bypass
