7
© 2009 - 2011 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO555/655/755/855
LASER OPTICAL UNIT
7 - 11

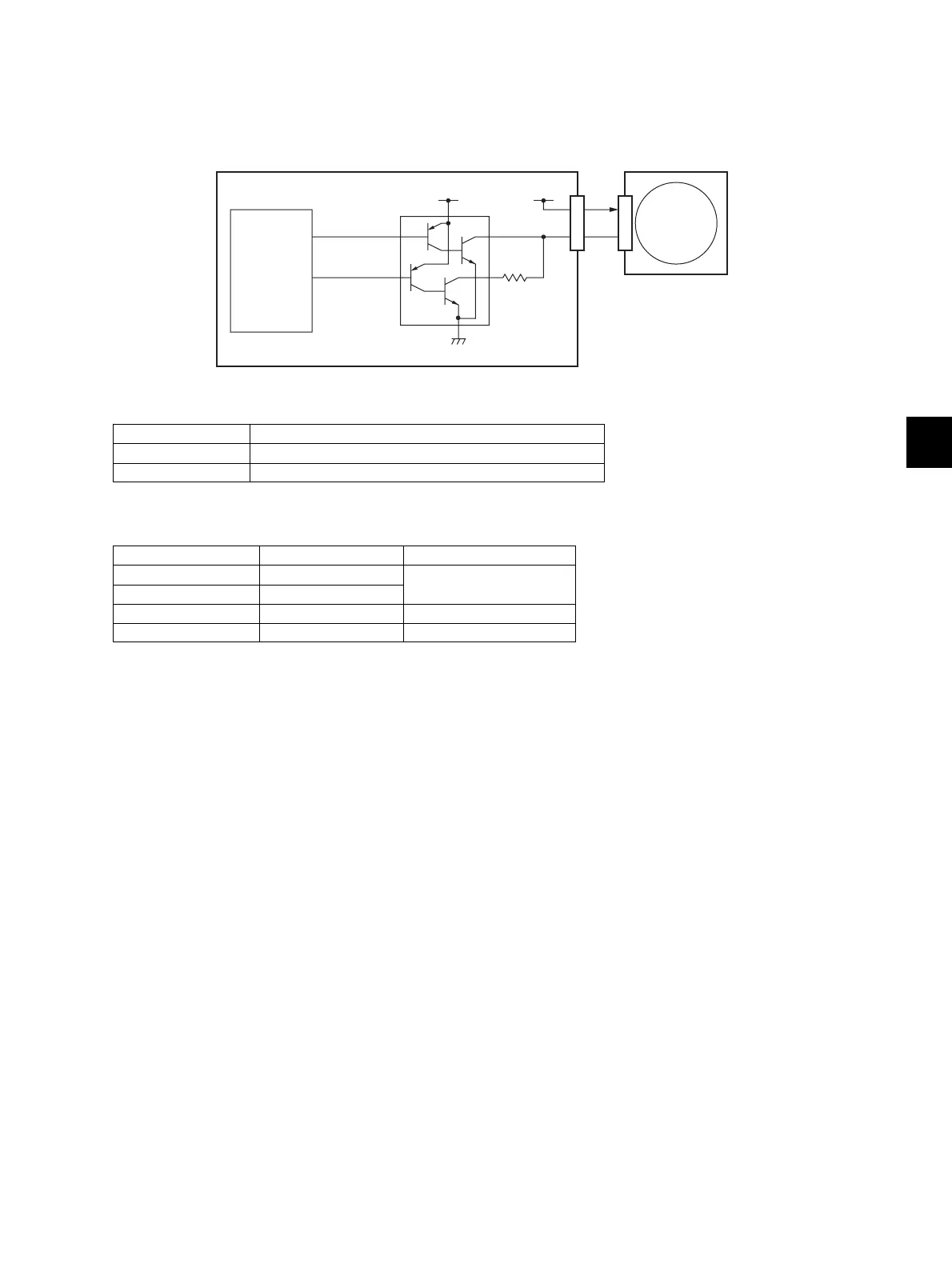

7.5 Laser Unit Cooling Fan Control Circuit
The laser unit cooling fan is a DC fan motor which sends air to the laser unit heated by the polygonal
motor to cool down the unit. This fan is controlled to switch its rotation among three; high speed, low
speed and stopping, according to the condition of the equipment.
Fig. 7-12
Relation between each signal level and the rotation of the fan
(L = Low level, H = High level)
Signal Function
LDFAN-0 Laser unit cooling fan high-speed rotation signal
LDFOF-1 Laser unit cooling fan low-speed rotation signal
LDFOF-1 LDFAN-0 Rotation of Fan
L L High speed
HL
L H Low speed
H H Stopping
IC56
ASIC
LDFOF-1
LDFAN-0
+24VD2+24VD2
DG
IC2
Laser unit
cooling fan
LGC board

Toshiba e-studio555 Specifications

Power

power supply	120 Volts; 20 Amps
power consumption	Maximum 2.0kW
warm-up time	Appx. 130 Seconds

Printing and Copying

copy/print resolution	2400 x 600 dpi
copy/print speed	55 / 65 / 75 / 85 cpm
print speed	55 / 65 / 75 / 85 ppm

Scanning

scan speed	80 spm LT-Size @300 dpi
scan resolution	150 dpi, 200 dpi, 300 dpi, 400 dpi, 600 dpi
file format	TIFF, PDF, JPEG, XPS, MS Word, MS Excel, Searchable PDF w/ Adv. Scanning option

Memory and Storage

memory	1GB RAM, 60 GB HDD
fax memory transmission	500MB (HDD)
reception	500MB (HDD)

Connectivity

connectivity	Ethernet 10/100BaseT, USB 2.0, 802.11b/g Wireless LAN, Bluetooth (HCRP)
protocol support	IPX/SPX, TCP/IP (IPV4/V6), EtherTalk, AppleTalk PAP, LPR/LPD, IPP w/Authentication, Port 9100
operating systems	Windows 2000/XP/2003/Vista/2008, Mac X OS 10.2.4/10.3/10.4/10.5, UNIX, Linux, CUPS

Weight and Dimensions

dimensions	28” x 31” x 46” (W x D x H)
weight	462 lbs
standard paper supply	2 x 500-Sheet Drawer; 2 x 1, 250-Sheet Tandem Drawer; 100-Sheet Stack Feed Bypass
