15.5.52 Original reading start sensor (prism)
(3) Release 2 latches and take off the original
reading start sensor.
Note:
When replacing the original reading start
sensor, be sure to perform the original
reading start sensor adjustment.
SERVICE HANDBOOK “3.12.8 Original
reading start sensor adjustment“

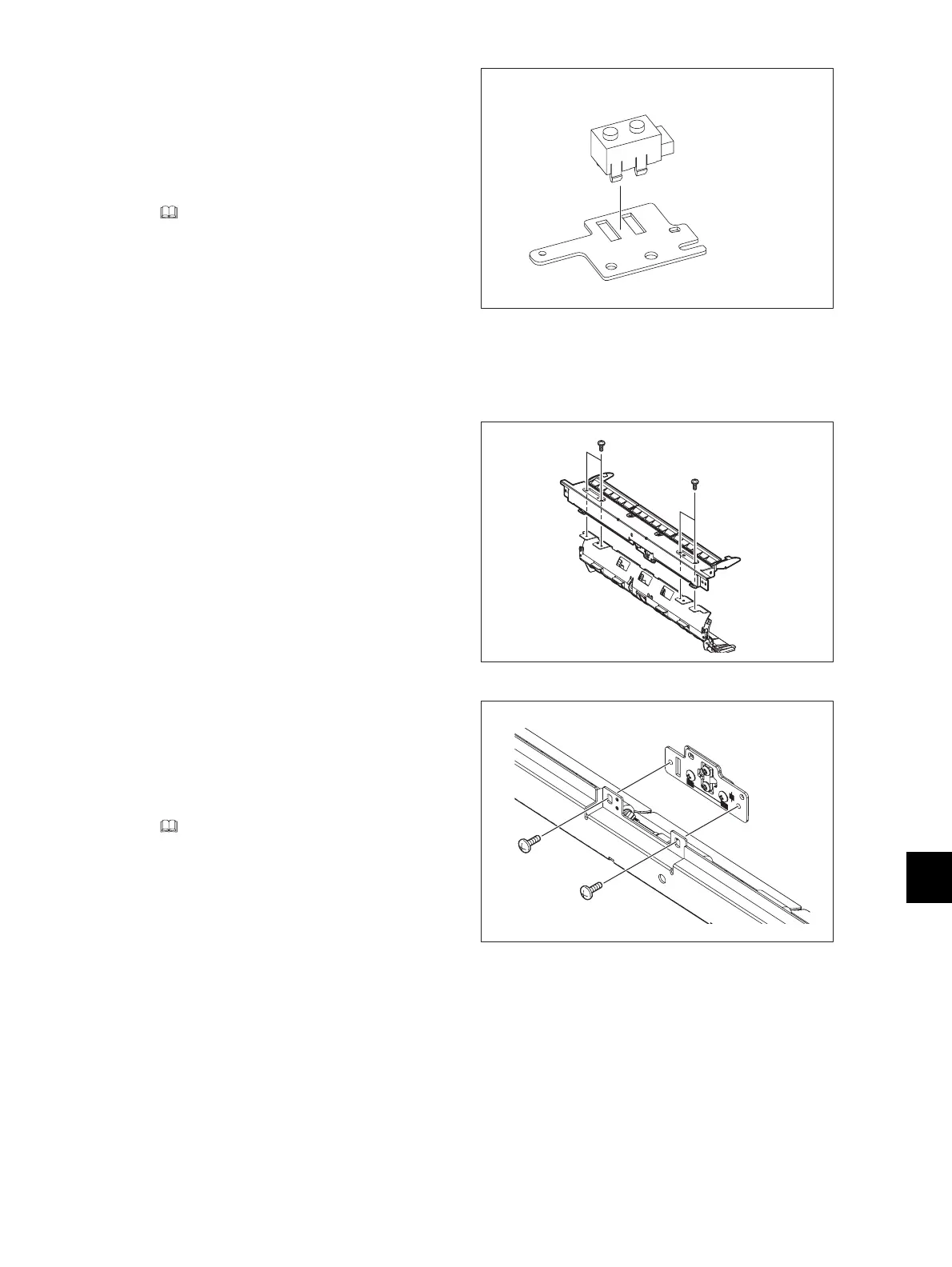

Fig. 15-141
(1) Take off the reading start guide unit.
 P.15-21 "15.5.10 Reading start guide unit"
(2) Remove 4 screws and take off the stay.
Fig. 15-142
(3) Remove 2 screws and take off the original
reading start sensor prism unit.
Note:
When replacing the original reading start
sensor, be sure to perform the original
reading start sensor adjustment.
SERVICE HANDBOOK “3.12.8 Original
reading start sensor adjustment“
Fig. 15-143
