Toshiba e-studio555 User Manual

8
© 2009 - 2011 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO555/655/755/855
PAPER FEEDING SYSTEM
8 - 1
8. PAPER FEEDING SYSTEM
8.1 General Description
This unit picks up a sheet of paper from the drawer, tandem LCF or bypass tray and transports it to the
transfer position.
The clutch controls the drive from the motor and drives each roller. Also, each sensor detects the
transferring status of the sheet of paper. Fig. 9-1 shows the positioning of each roller and sensor from
the first drawer to the registration roller. Fig. 9-2 shows the positioning of each roller and the sensor of
the tandem LCF.
Moreover, the composition of the paper feeding unit differs depending on the destination
(machine version). The 4-drawer composition is for JPC. The composition of the 2 drawers and
tandem LCF is for other destinations.

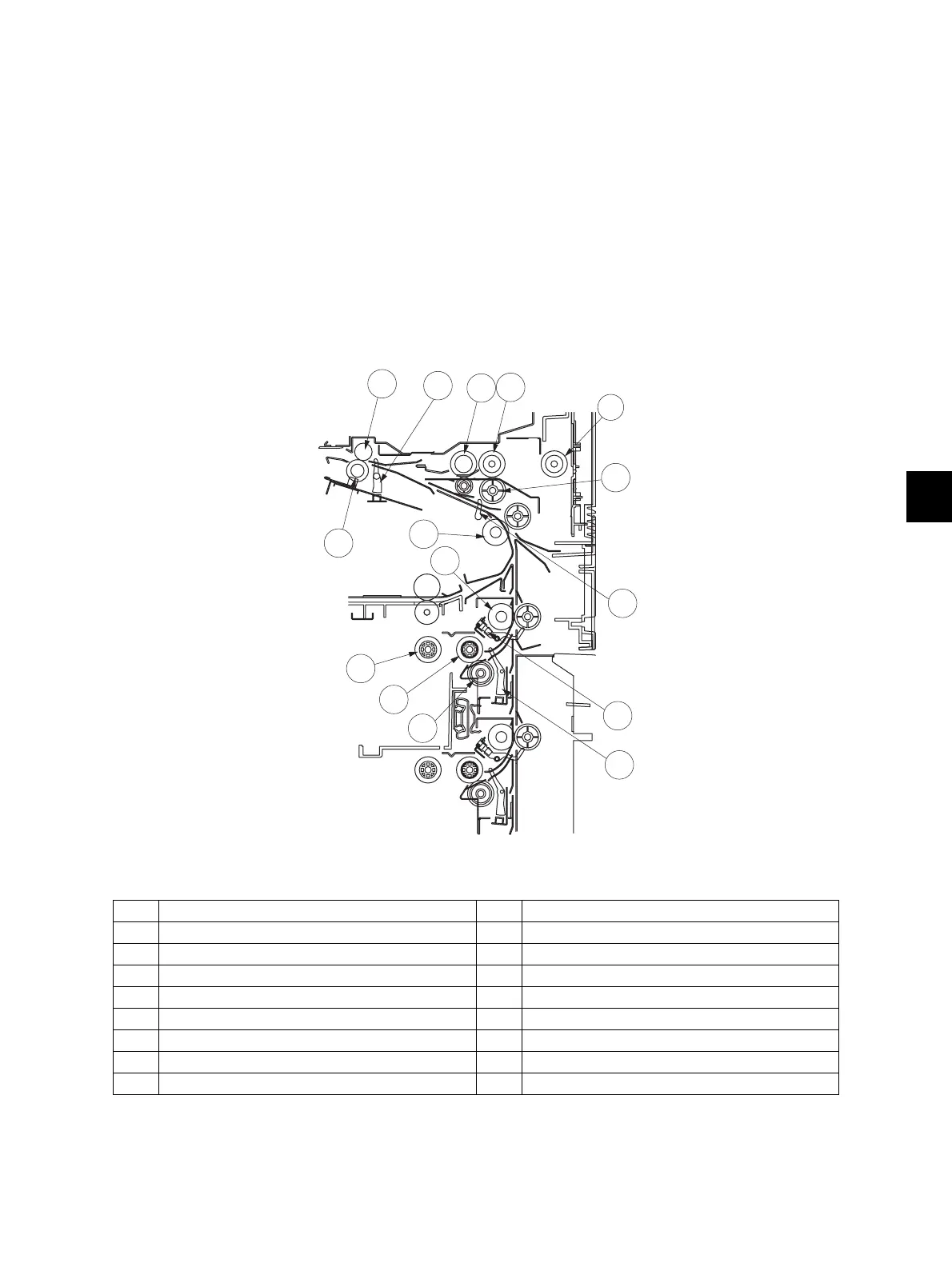

Fig. 8-1
No. Name No. Name
1 Bypass pickup roller 9 Drawer pickup roller
2 Bypass feed roller 10 Drawer feed roller
3 Bypass separation roller 11 Drawer separation roller
4 Bypass transport roller 12 Drawer feed sensor
5 Registration roller (metal) 13 Drawer transport sensor
6 Registration roller (rubber) 14 Intermediate transport sensor
7 Intermediate transport roller 15 Registration sensor
8 Transport roller —
1
2
4
5
6
7
8
9
11
10
3
13
12
14
15

Toshiba e-studio555 Specifications

Power

power supply	120 Volts; 20 Amps
power consumption	Maximum 2.0kW
warm-up time	Appx. 130 Seconds

Printing and Copying

copy/print resolution	2400 x 600 dpi
copy/print speed	55 / 65 / 75 / 85 cpm
print speed	55 / 65 / 75 / 85 ppm

Scanning

scan speed	80 spm LT-Size @300 dpi
scan resolution	150 dpi, 200 dpi, 300 dpi, 400 dpi, 600 dpi
file format	TIFF, PDF, JPEG, XPS, MS Word, MS Excel, Searchable PDF w/ Adv. Scanning option

Memory and Storage

memory	1GB RAM, 60 GB HDD
fax memory transmission	500MB (HDD)
reception	500MB (HDD)

Connectivity

connectivity	Ethernet 10/100BaseT, USB 2.0, 802.11b/g Wireless LAN, Bluetooth (HCRP)
protocol support	IPX/SPX, TCP/IP (IPV4/V6), EtherTalk, AppleTalk PAP, LPR/LPD, IPP w/Authentication, Port 9100
operating systems	Windows 2000/XP/2003/Vista/2008, Mac X OS 10.2.4/10.3/10.4/10.5, UNIX, Linux, CUPS

Weight and Dimensions

dimensions	28” x 31” x 46” (W x D x H)
weight	462 lbs
standard paper supply	2 x 500-Sheet Drawer; 2 x 1, 250-Sheet Tandem Drawer; 100-Sheet Stack Feed Bypass
