Toshiba e-studio555 User Manual

e-STUDIO555/655/755/855 © 2009 - 2011 TOSHIBA TEC CORPORATION All rights reserved
LASER OPTICAL UNIT
7 - 6
7.2.2 Polygonal motor unit
This unit consists of the polygonal motor (M2), polygonal mirror and polygonal mirror cover.
a. Polygonal motor
This motor rotates the polygonal mirror at a high speed. The DC motor controls the rotation speed of
the motor.
b. Polygonal mirror
The e-STUDIO555/655 has a 1-beam type of laser unit. One laser beam emitted from the laser
diode is reflected by this mirror. As the polygonal mirror is rotated by the polygonal motor (M2), the
reflected laser beam moves in sync with the rotation. The direction of the movement is the primary
scanning direction of the image. One scan is performed on 1 plane of the polygonal mirror. As the
polygonal mirror has 8 planes, 8 scans are performed in 1 rotation.
e-STUDIO755/855 has a 2-beam type of laser unit. Two laser beams emitted from the laser diode
are reflected by this mirror. Two scans are performed on 1 plane of the polygonal mirror. As the
polygonal mirror has 8 planes, 16 scans are performed in 1 rotation.

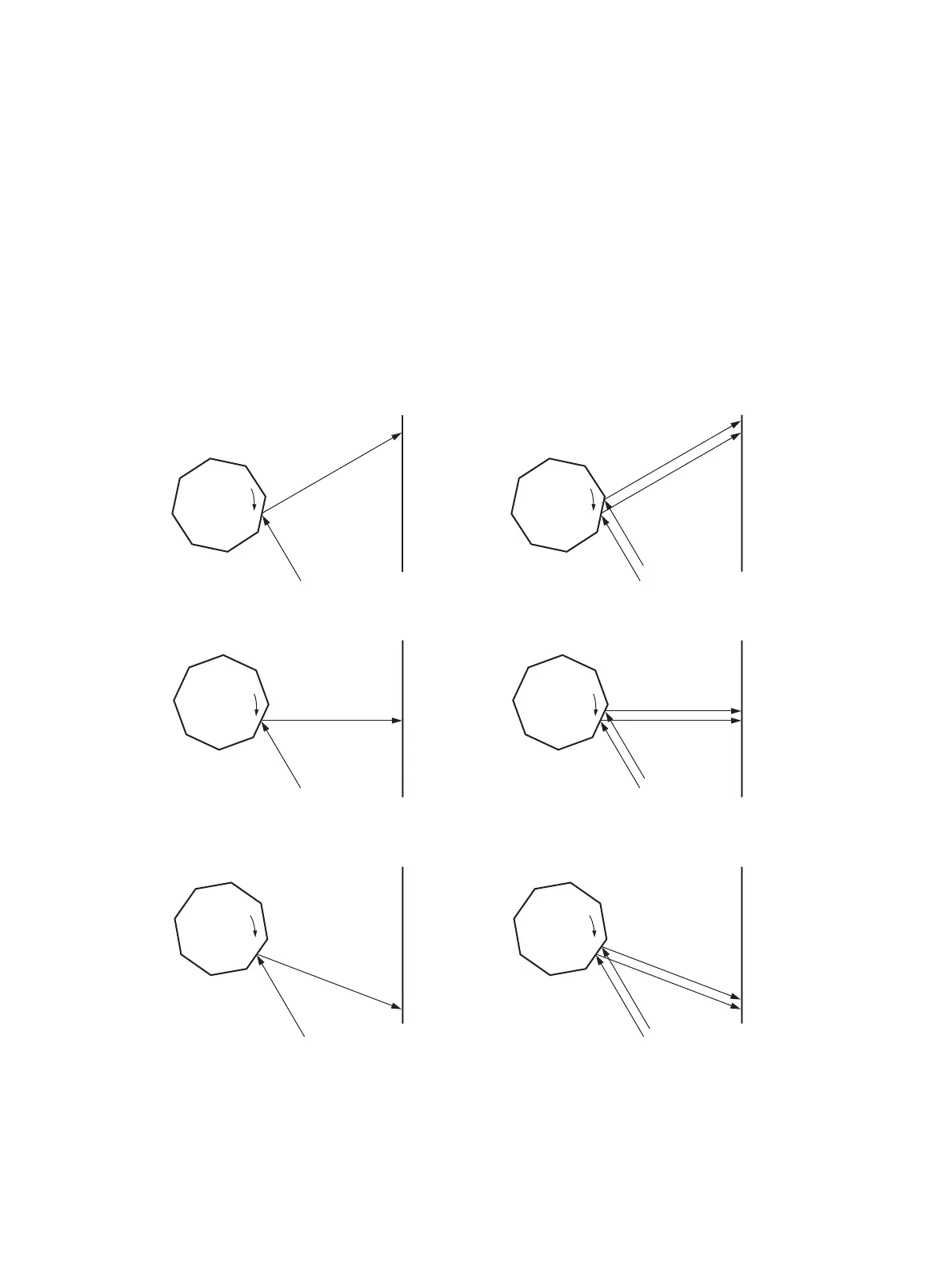

Fig. 7-6
(
A
)
Drum
Laser beam
(
B
)
Drum
Laser beam
(
C
)
Drum
Laser beam
(
A
)
Drum
Laser beam
(
B
)
Drum
Laser beam
(
C
)
Drum
Laser beam

Toshiba e-studio555 Specifications

Power

power supply	120 Volts; 20 Amps
power consumption	Maximum 2.0kW
warm-up time	Appx. 130 Seconds

Printing and Copying

copy/print resolution	2400 x 600 dpi
copy/print speed	55 / 65 / 75 / 85 cpm
print speed	55 / 65 / 75 / 85 ppm

Scanning

scan speed	80 spm LT-Size @300 dpi
scan resolution	150 dpi, 200 dpi, 300 dpi, 400 dpi, 600 dpi
file format	TIFF, PDF, JPEG, XPS, MS Word, MS Excel, Searchable PDF w/ Adv. Scanning option

Memory and Storage

memory	1GB RAM, 60 GB HDD
fax memory transmission	500MB (HDD)
reception	500MB (HDD)

Connectivity

connectivity	Ethernet 10/100BaseT, USB 2.0, 802.11b/g Wireless LAN, Bluetooth (HCRP)
protocol support	IPX/SPX, TCP/IP (IPV4/V6), EtherTalk, AppleTalk PAP, LPR/LPD, IPP w/Authentication, Port 9100
operating systems	Windows 2000/XP/2003/Vista/2008, Mac X OS 10.2.4/10.3/10.4/10.5, UNIX, Linux, CUPS

Weight and Dimensions

dimensions	28” x 31” x 46” (W x D x H)
weight	462 lbs
standard paper supply	2 x 500-Sheet Drawer; 2 x 1, 250-Sheet Tandem Drawer; 100-Sheet Stack Feed Bypass
