LASER OPTICAL UNIT
7 - 10
7.4 Polygonal Motor Control Circuit
The polygonal motor is a DC motor rotated by a clock signal (PMCLK-1) output from the Laser-CPU.
This motor is controlled under PLL (Phase Locked Loop) to realize an accurate and constant rotation.
Its rotation status is converted to a status signal (PMOK-0) and then output to the Laser-CPU. PMOK-0
signal moves to a low level only when the rotation status of the motor is constant. The Laser-CPU
detects the rotation status with this signal, and emits a laser beam only when the rotation status is
constant.

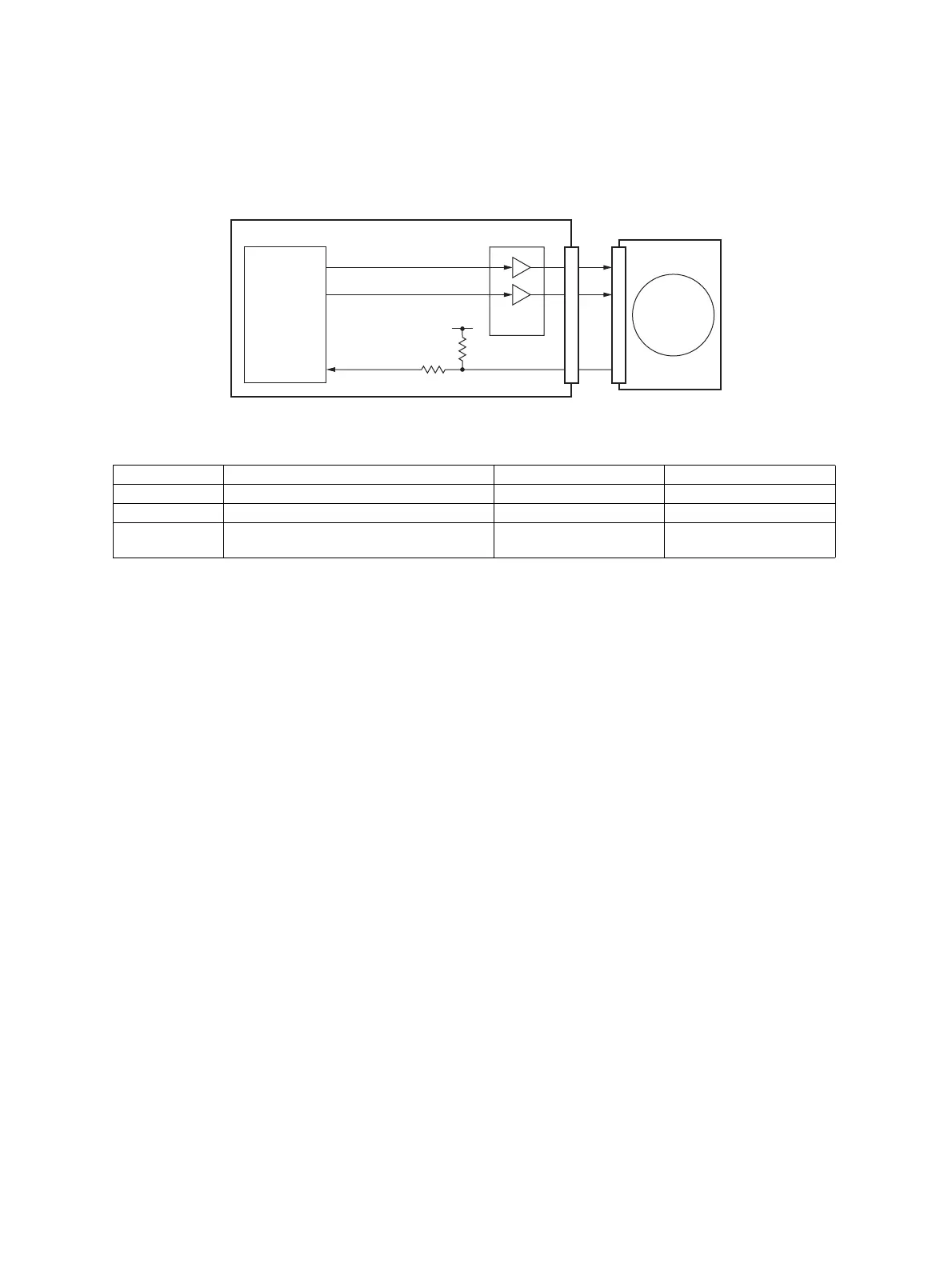

Fig. 7-11
Signal Function Low level High level
PMON-0 Polygonal motor ON signal ON OFF
PMCLK-1 Polygonal motor reference clock - -
PMOK-0 Polygonal motor PLL control signal Rotating at a constant
speed
Stopping or error
IC25
Laser CPU
PMCLK-1
PMOK-0
PMON-0
Polygonal motor
+5VB
IC9
Buffer
PLG board
To Next Page
