Toshiba e-studio555 User Manual

15
© 2009 - 2011 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO555/655/755/855
REVERSING AUTOMATIC DOCUMENT FEEDER (RADF)
15 - 1
15. REVERSING AUTOMATIC DOCUMENT FEEDER (RADF)
15.1 General Description
The Reversing Automatic Document Feeder (RADF) transports original sheets to the RADF original
glass and then to the original exit tray after they have been scanned. In scanning double-sided
originals, the original is reversed in the exit paper path exclusive to original reversing after the back side
has been scanned and then it exits. Therefore the next original can be scanned without waiting for the
previous one to exit.

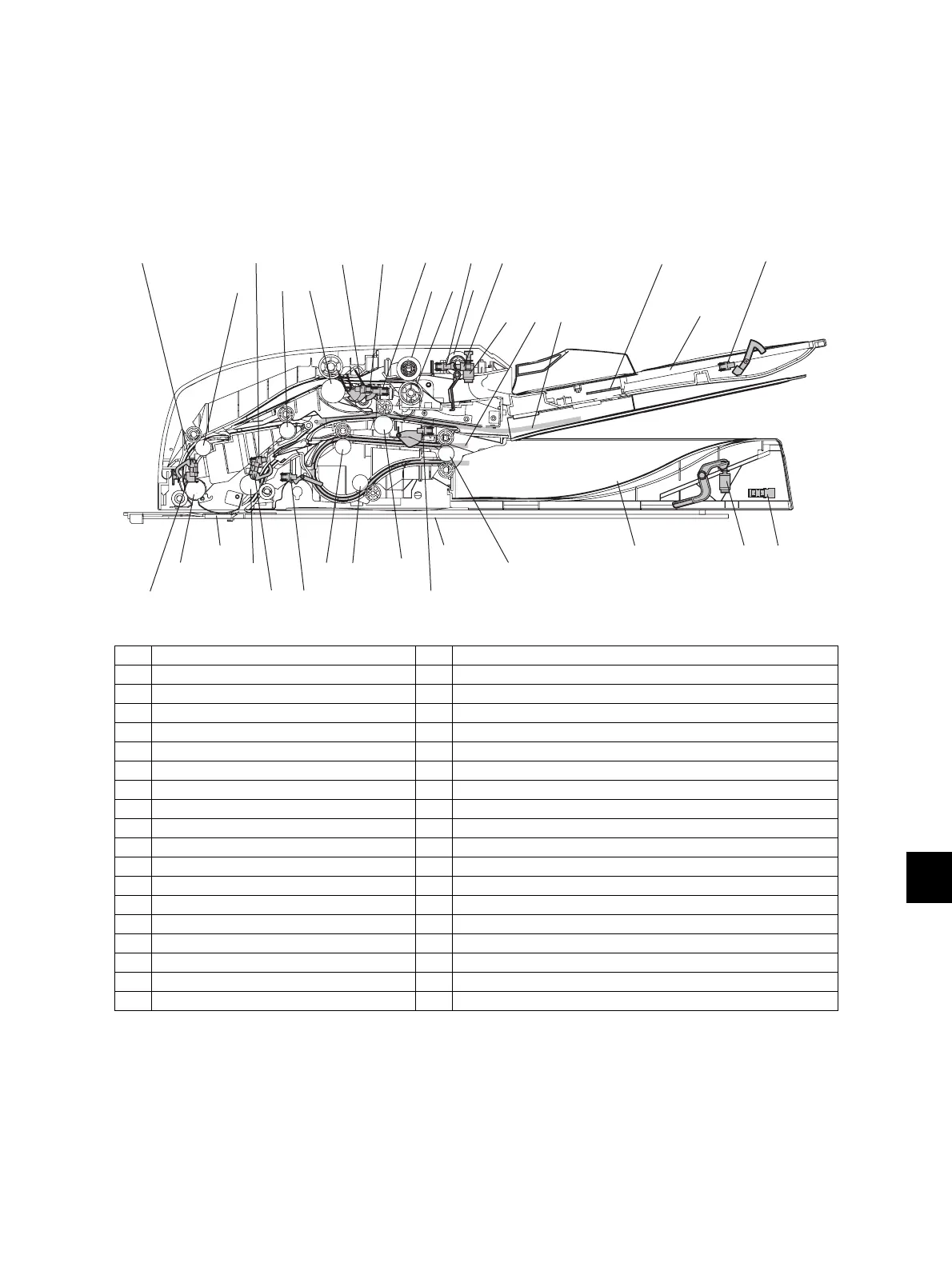

Fig. 15-1
No. Name No. Name
1 Original tray 19 Original empty sensor (SR3)
2 Original exit tray 20 Original reading end sensor (SR4)
3 Original glass 21 Original registration sensor (SR5)
4 RADF original glass 22 Original width detection sensor-1 (SR6)
5 Pickup roller 23 Original width detection sensor-2 (SR7)
6 Feed roller 24 Original width detection sensor-3 (SR8)
7 Separation roller 25 Original intermediate transport sensor (SR9)
8 Original registration roller 26 Original reading start sensor (SR10)
9 Intermediate transport roller 27 Original exit/reverse sensor (SR11)
10 Reading start roller 28 Original exit sensor (SR12)
11 Reading end roller 29 Original jam access cover opening/closing sensor (SR13)
12 Reverse roller 30 Original reverse unit opening/closing sensor (SR14)
13 Reverse registration roller 31 Jam access cover opening/closing switch (SWR1)
14 Exit intermediate roller 32 RADF opening/closing switch (SWR2)
15 Exit/reverse roller 33 Reverse paper path
16 Exit roller 34 Exit paper path
17 Original tray sensor (SR1) 35 RADF opening/closing sensor (SR15)
18 Original tray width sensor (SR2)
1
2
32 35
34
56
7
8
9
10
11
21
25 30
12
13
14
15
16
17
18
19 29
31
3334
20
22, 23
24
26
27 28

Toshiba e-studio555 Specifications

Power

power supply	120 Volts; 20 Amps
power consumption	Maximum 2.0kW
warm-up time	Appx. 130 Seconds

Printing and Copying

copy/print resolution	2400 x 600 dpi
copy/print speed	55 / 65 / 75 / 85 cpm
print speed	55 / 65 / 75 / 85 ppm

Scanning

scan speed	80 spm LT-Size @300 dpi
scan resolution	150 dpi, 200 dpi, 300 dpi, 400 dpi, 600 dpi
file format	TIFF, PDF, JPEG, XPS, MS Word, MS Excel, Searchable PDF w/ Adv. Scanning option

Memory and Storage

memory	1GB RAM, 60 GB HDD
fax memory transmission	500MB (HDD)
reception	500MB (HDD)

Connectivity

connectivity	Ethernet 10/100BaseT, USB 2.0, 802.11b/g Wireless LAN, Bluetooth (HCRP)
protocol support	IPX/SPX, TCP/IP (IPV4/V6), EtherTalk, AppleTalk PAP, LPR/LPD, IPP w/Authentication, Port 9100
operating systems	Windows 2000/XP/2003/Vista/2008, Mac X OS 10.2.4/10.3/10.4/10.5, UNIX, Linux, CUPS

Weight and Dimensions

dimensions	28” x 31” x 46” (W x D x H)
weight	462 lbs
standard paper supply	2 x 500-Sheet Drawer; 2 x 1, 250-Sheet Tandem Drawer; 100-Sheet Stack Feed Bypass
