PAPER FEEDING SYSTEM
8 - 13
8.5 Feed motor control circuit
The feed motor is a DC motor driven by the control signal output from the PFC CPU and ASIC on the
LGC board and rotates the pick-up roller, feed roller, separation roller and transport roller for each
drawer, the tandem LCF and bypass unit.
When the ON/OFF signal (PFMON-0) output from the PFC CPU is L level, the feed motor is driven at a
speed based on the frequency of the reference clock signal (PFMCK-1) output from the ASIC.

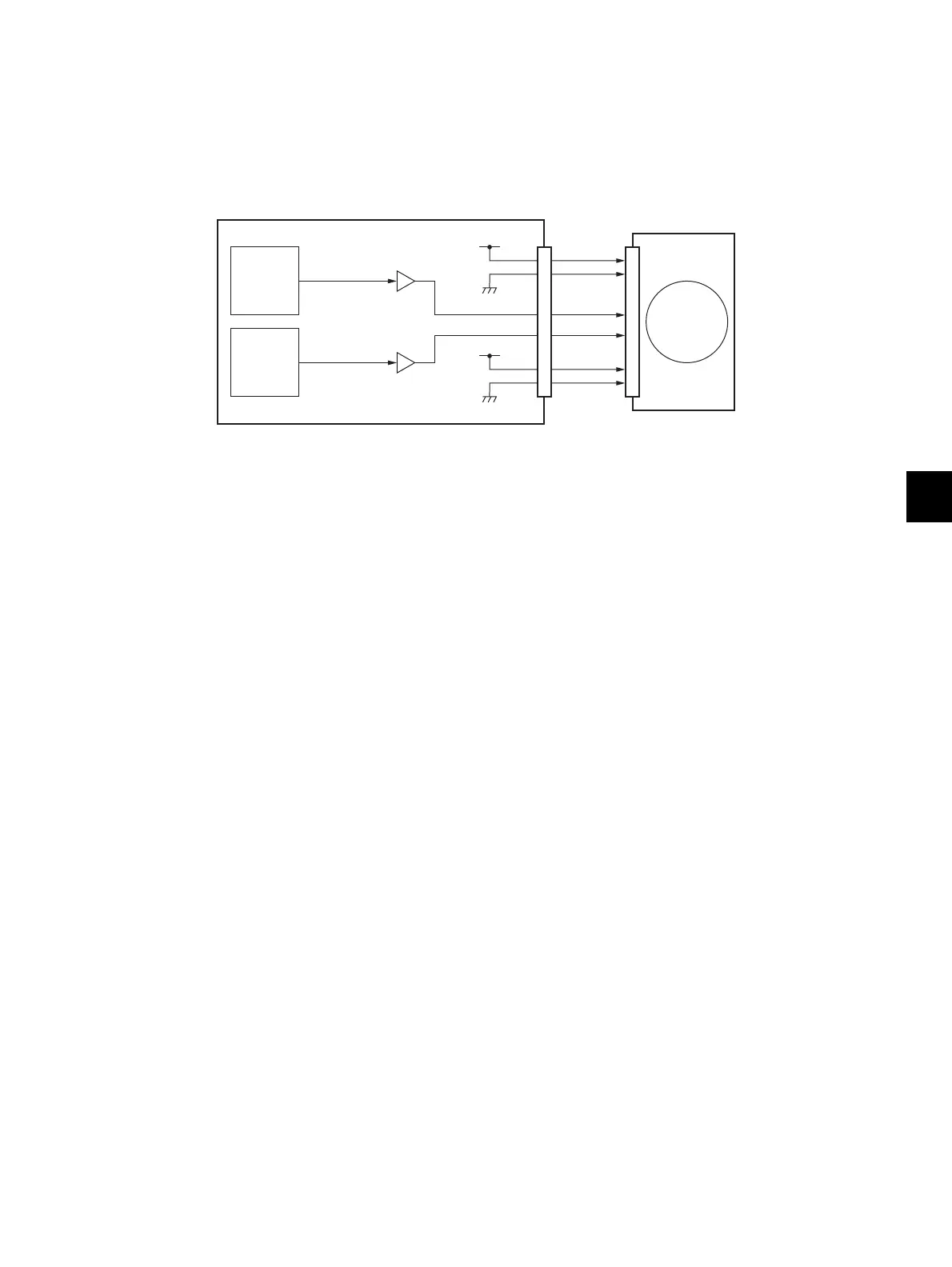

Fig. 8-8
IC57
PFC CPU
IC56
ASIC
PFMCK-1
PFMON-0
Feed motor
LGC board
PG
+36VD
SG
+5VB
IC62
Buffer
IC39
Buffer

Toshiba e-studio555 Specifications

Power

power supply	120 Volts; 20 Amps
power consumption	Maximum 2.0kW
warm-up time	Appx. 130 Seconds

Printing and Copying

copy/print resolution	2400 x 600 dpi
copy/print speed	55 / 65 / 75 / 85 cpm
print speed	55 / 65 / 75 / 85 ppm

Scanning

scan speed	80 spm LT-Size @300 dpi
scan resolution	150 dpi, 200 dpi, 300 dpi, 400 dpi, 600 dpi
file format	TIFF, PDF, JPEG, XPS, MS Word, MS Excel, Searchable PDF w/ Adv. Scanning option

Memory and Storage

memory	1GB RAM, 60 GB HDD
fax memory transmission	500MB (HDD)
reception	500MB (HDD)

Connectivity

connectivity	Ethernet 10/100BaseT, USB 2.0, 802.11b/g Wireless LAN, Bluetooth (HCRP)
protocol support	IPX/SPX, TCP/IP (IPV4/V6), EtherTalk, AppleTalk PAP, LPR/LPD, IPP w/Authentication, Port 9100
operating systems	Windows 2000/XP/2003/Vista/2008, Mac X OS 10.2.4/10.3/10.4/10.5, UNIX, Linux, CUPS

Weight and Dimensions

dimensions	28” x 31” x 46” (W x D x H)
weight	462 lbs
standard paper supply	2 x 500-Sheet Drawer; 2 x 1, 250-Sheet Tandem Drawer; 100-Sheet Stack Feed Bypass
