Toshiba e-studio555 User Manual

e-STUDIO555/655/755/855 © 2009 - 2011 TOSHIBA TEC CORPORATION All rights reserved
PAPER FEEDING SYSTEM
8 - 16
8.8 Tandem LCF tray-up motor / end fence motor
The tandem LCF tray-up motor and end fence motor, which are DC motors driven by the control signal
output from the PFC CPU on the LGC board, move the tray up in the tandem LCF and shift the end
fence.
The motor driver outputs the drive signal (TLTRM-0/1A, TLTMM-0/1A) to the motor based on the control
signal (TLTRM-0/1, TLTMM-0/1) output from the PFC CPU. The motor operates the forward rotation,
reverse rotation, brake or stop according to the status of these drive signals.

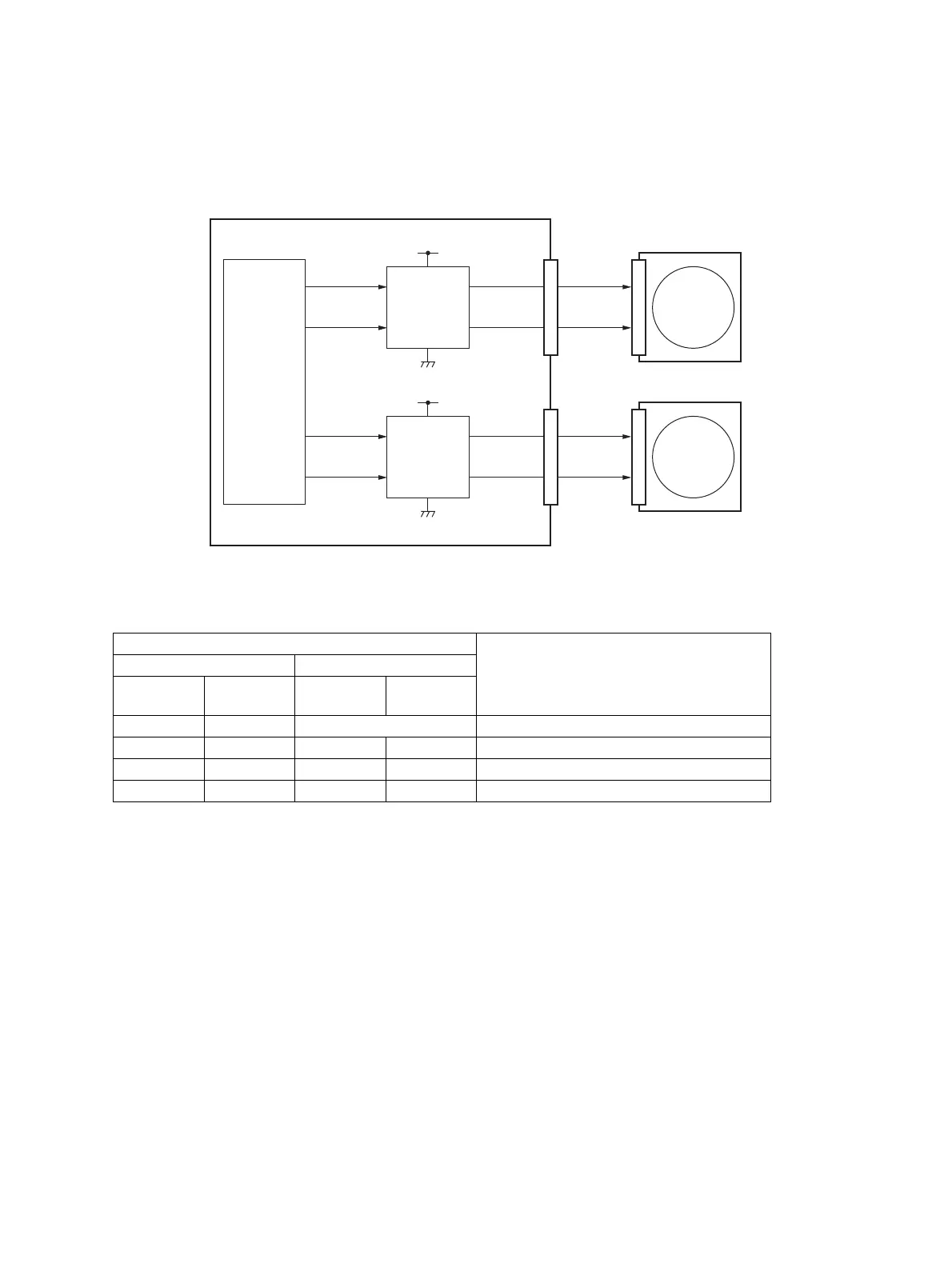

Fig. 8-11
Tray-up motor / end fence motor drive signal
Signal
Motor status
PFC CPU output Motor driver output
TLTRM-0
TLTMM-0
TLTRM-1
TLTMM-1
TLTRM-0A
TLTMM-0A
TLTRM-1A
TLTMM-1A
L L OFF (high impedance) OFF
L H L H Reverse rotation (CCW)
H L H L Forward rotation (CW)
HHL LBrake
IC57
PFC CPU
TLTRM-0
Tandem LCF
tray-up motor
TLTRM-1
TLTRM-0A
TLTRM-1A
IC8
Motor driver
LGC board
+24VC
DG
TLTMM-0
Tandem LCF
end fence motor
TLTMM-1
TLTMM-0A
TLTMM-1A
IC7
Motor driver
+24VC
DG

Toshiba e-studio555 Specifications

Power

power supply	120 Volts; 20 Amps
power consumption	Maximum 2.0kW
warm-up time	Appx. 130 Seconds

Printing and Copying

copy/print resolution	2400 x 600 dpi
copy/print speed	55 / 65 / 75 / 85 cpm
print speed	55 / 65 / 75 / 85 ppm

Scanning

scan speed	80 spm LT-Size @300 dpi
scan resolution	150 dpi, 200 dpi, 300 dpi, 400 dpi, 600 dpi
file format	TIFF, PDF, JPEG, XPS, MS Word, MS Excel, Searchable PDF w/ Adv. Scanning option

Memory and Storage

memory	1GB RAM, 60 GB HDD
fax memory transmission	500MB (HDD)
reception	500MB (HDD)

Connectivity

connectivity	Ethernet 10/100BaseT, USB 2.0, 802.11b/g Wireless LAN, Bluetooth (HCRP)
protocol support	IPX/SPX, TCP/IP (IPV4/V6), EtherTalk, AppleTalk PAP, LPR/LPD, IPP w/Authentication, Port 9100
operating systems	Windows 2000/XP/2003/Vista/2008, Mac X OS 10.2.4/10.3/10.4/10.5, UNIX, Linux, CUPS

Weight and Dimensions

dimensions	28” x 31” x 46” (W x D x H)
weight	462 lbs
standard paper supply	2 x 500-Sheet Drawer; 2 x 1, 250-Sheet Tandem Drawer; 100-Sheet Stack Feed Bypass
