REVERSING AUTOMATIC DOCUMENT FEEDER (RADF)
15 - 35
15.5.22 Exit intermediate roller
(1) Take off the exit/reverse guide.
 P.15-22 "15.5.11 Exit guide / Exit/reverse
guide / Reading end guide"
(2) Remove 2 screws and take off the guide.

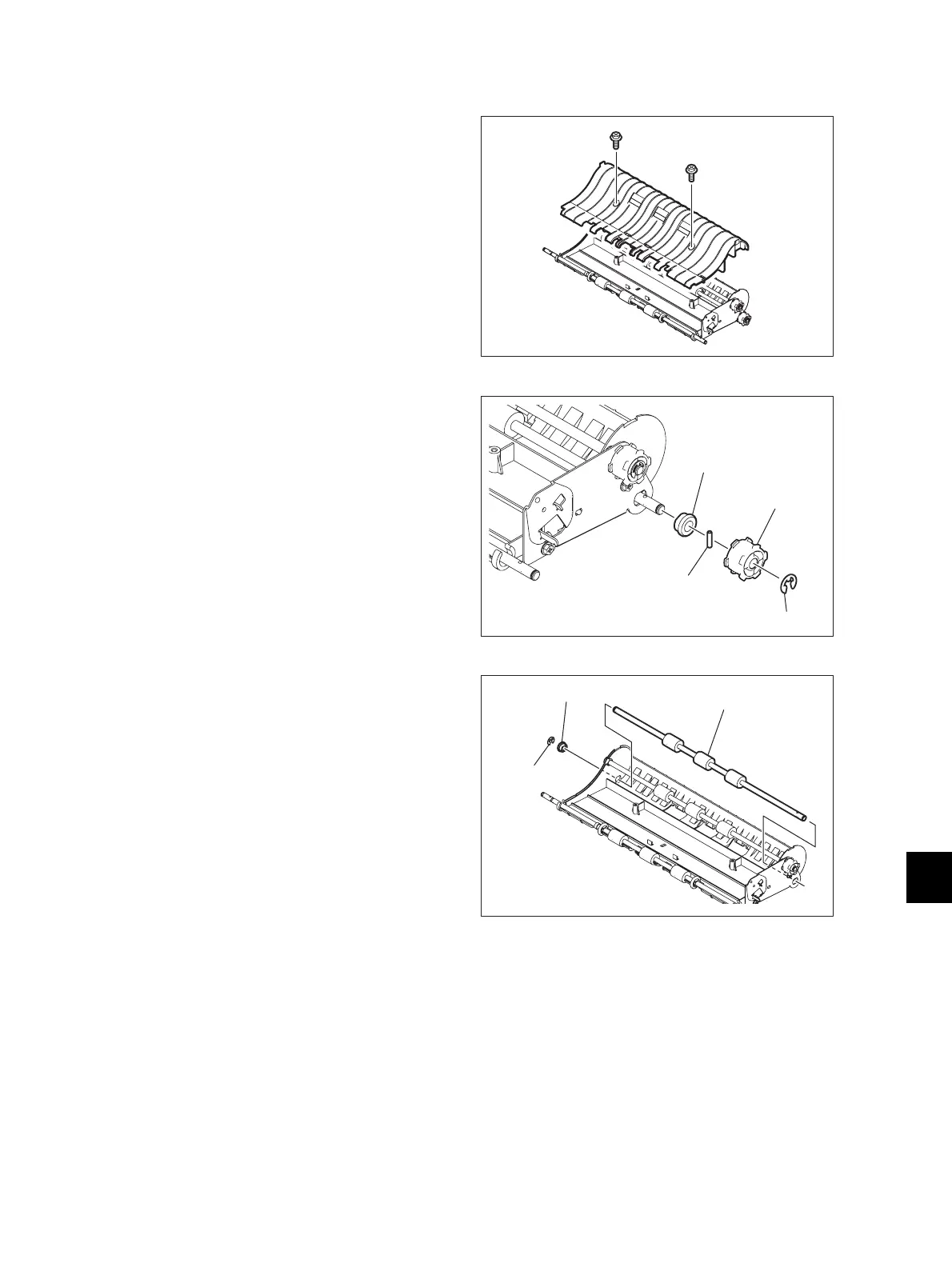

Fig. 15-76
(3) Remove 1 E-ring, 1 pulley, 1 pin and 1
bushing.
Fig. 15-77
(4) Remove 1 E-ring and 1 bushing and take off
the exit intermediate roller.
Fig. 15-78
Bushing
Pulley
Pin
E-ring
Bushing
Exit intermediate roller
E-ring
