Toshiba e-studio555 - RADF Rear Cover

e-STUDIO555/655/755/855 © 2009 - 2011 TOSHIBA TEC CORPORATION All rights reserved
REVERSING AUTOMATIC DOCUMENT FEEDER (RADF)
15 - 16

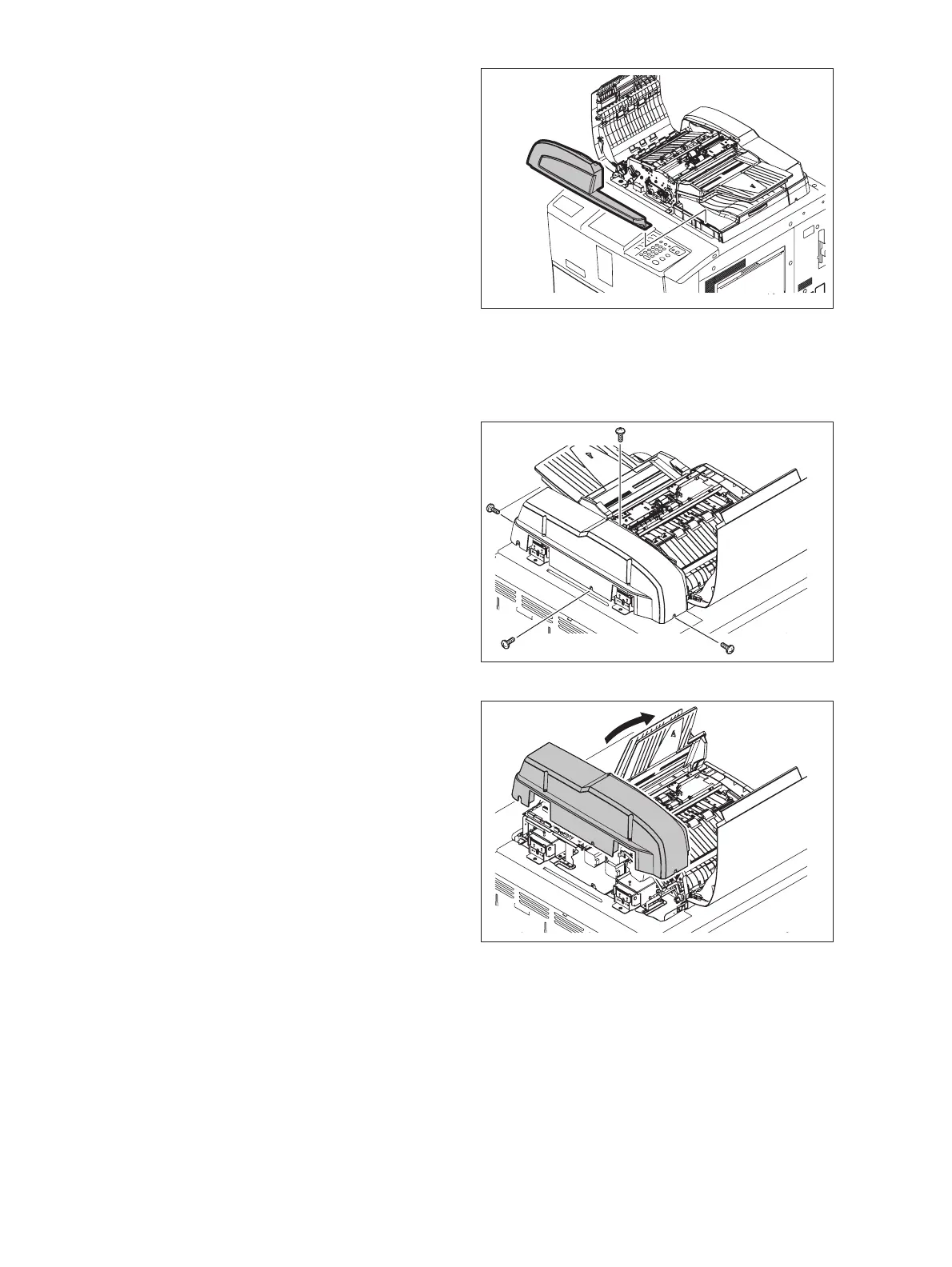

15.5.3 RADF rear cover
(3) Take off the RADF front cover.
Fig. 15-18
(1) Open the original jam access cover and
remove 4 screws.
Fig. 15-19
(2) Lift up the original tray and take off the RADF
rear cover.
Note:
There is a Mylar attached to the hinge to
prevent your fingers from being caught. Treat
it carefully.
Fig. 15-20
