© 2009 - 2011 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO555/655/755/855
FUSER UNIT
13 - 7
13.4.5 Temperature detection section
To maintain the fuser roller at a constant temperature, the two fuser roller thermistors (front and rear)
detect the fuser roller temperature and control the on/off of the IH coil. The abnormal temperature of the
IH coil is detected by the three fuser roller thermistors (front, center and rear), while that of the pressure
roller is detected by the pressure roller thermistor.

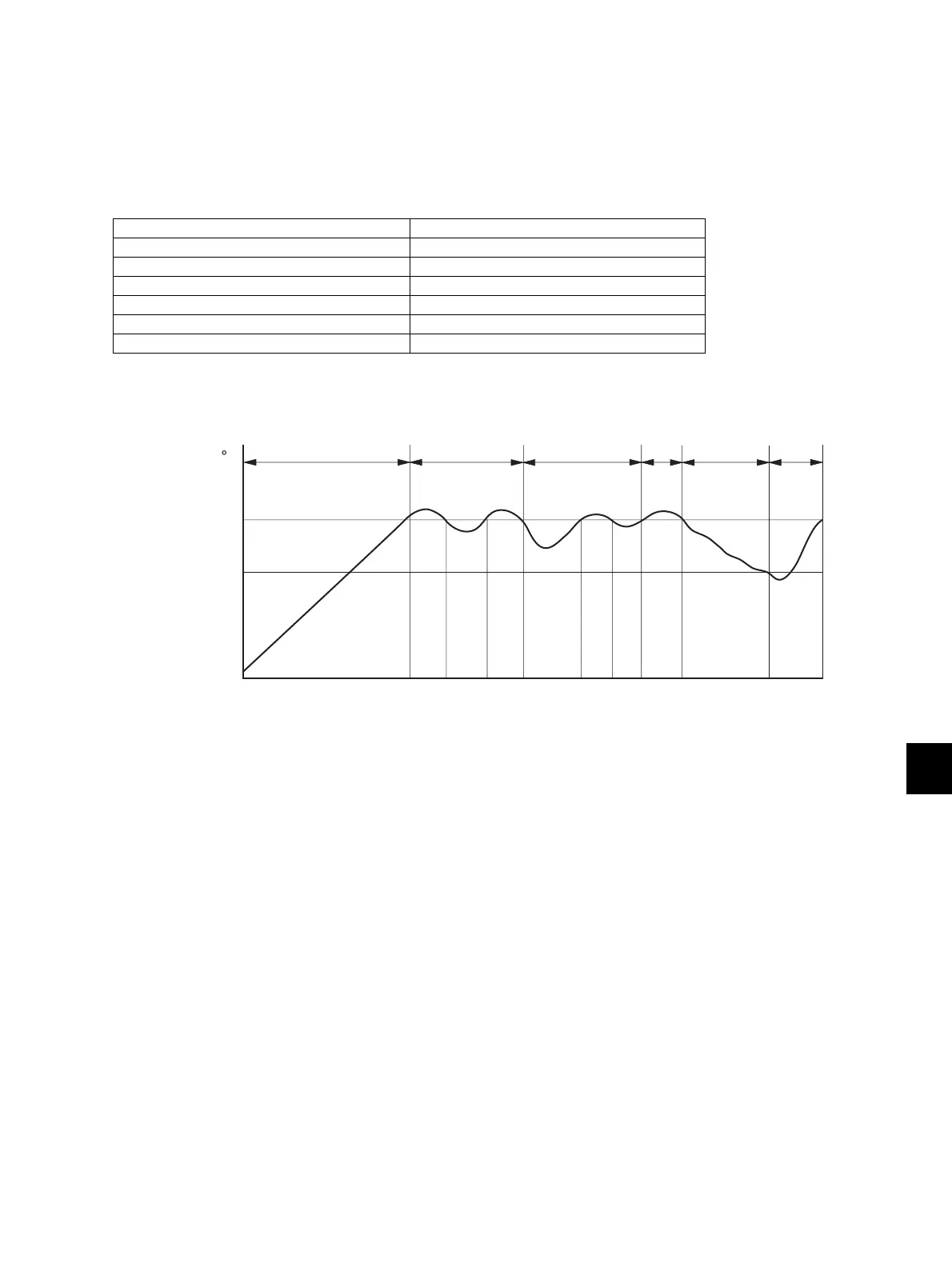

1. Relation between the thermistor output voltage and surface temperature of the fuser roller
2. Control of the surface temperature of the fuser roller
Fig. 13-6
Output voltages of thermistors [V] Surface temperatures of fuser roller [°C]
Approx. 0.5 40
Approx. 2.0 100
Approx. 3.4 160
Approx. 3.6 170
Approx. 3.8 185
Approx. 4.0 200
IH coil ON
200
170
0
Temperature of
fuser roller
(Example: e-STUDIO855)
During
printing
During printingReadyWarming-up Ready
During
waiting
C
ON
ON OFF ON OFF
ON
ONOFF
OFF

Toshiba e-studio555 Specifications

Power

power supply	120 Volts; 20 Amps
power consumption	Maximum 2.0kW
warm-up time	Appx. 130 Seconds

Printing and Copying

copy/print resolution	2400 x 600 dpi
copy/print speed	55 / 65 / 75 / 85 cpm
print speed	55 / 65 / 75 / 85 ppm

Scanning

scan speed	80 spm LT-Size @300 dpi
scan resolution	150 dpi, 200 dpi, 300 dpi, 400 dpi, 600 dpi
file format	TIFF, PDF, JPEG, XPS, MS Word, MS Excel, Searchable PDF w/ Adv. Scanning option

Memory and Storage

memory	1GB RAM, 60 GB HDD
fax memory transmission	500MB (HDD)
reception	500MB (HDD)

Connectivity

connectivity	Ethernet 10/100BaseT, USB 2.0, 802.11b/g Wireless LAN, Bluetooth (HCRP)
protocol support	IPX/SPX, TCP/IP (IPV4/V6), EtherTalk, AppleTalk PAP, LPR/LPD, IPP w/Authentication, Port 9100
operating systems	Windows 2000/XP/2003/Vista/2008, Mac X OS 10.2.4/10.3/10.4/10.5, UNIX, Linux, CUPS

Weight and Dimensions

dimensions	28” x 31” x 46” (W x D x H)
weight	462 lbs
standard paper supply	2 x 500-Sheet Drawer; 2 x 1, 250-Sheet Tandem Drawer; 100-Sheet Stack Feed Bypass
