4.4 HDD 4 Replacement Procedures
4.4 HDD
Removing the HDD
The following describes the procedure for removing the HDD (See Figure 4-5 to 4-8).
CAUTION: Take care not to press on the top or bottom of a HDD. Pressure may cause
data loss or damage to the device.
1. Turn the computer upside down.
2. Remove the following screw securing the HDD-1 cover.
• M2.5×6B FLAT HEAD screw ×1
3. Insert your finger into the slit and remove the HDD-1 cover.
4. Remove the following screw and HDD-1 assembly from the connector on the system
board.
• M2.5×6B FLAT HEAD screw ×1
HDD-1 cover
M2.5x6B FLAT HEAD
Slit
M2.5x6B FLAT HEAD
HDD-1assembly

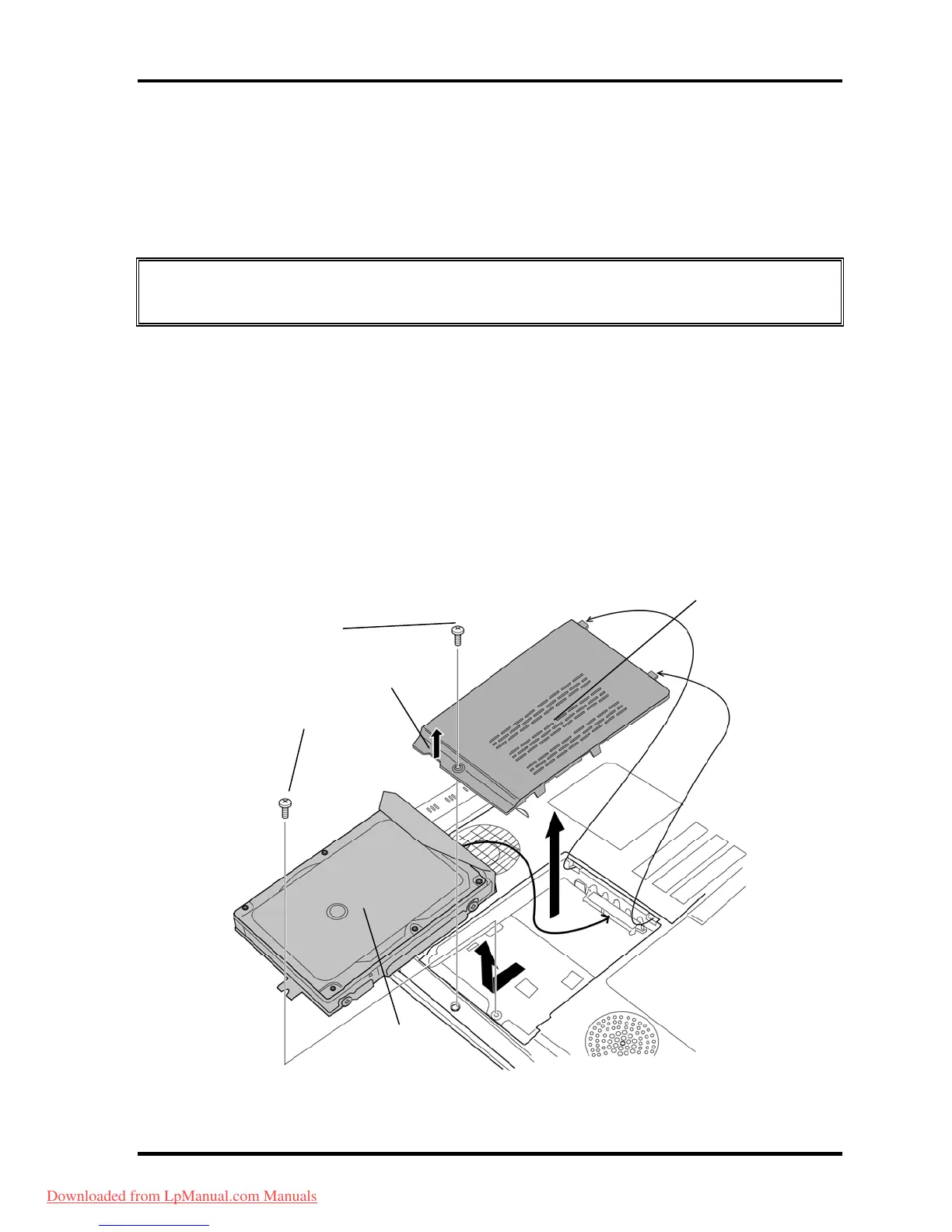

Figure 4-5 Removing the HDD-1 assembly
QOSMIO G50 Maintenance Manual (960-683) [CONFIDENTIAL] 4-15
