1.6 TFT Color Display 1 Hardware Overview
1.6 TFT Color Display
The TFT color display is 17.1 inch and consists of LCD module and FL inverter board.
1.6.1 LCD Module
The LCD module used for the TFT color display uses a backlight as the light source and can
display a maximum of 320,000 colors with 1,680 x 945(HD+) or 1,920x 1080(FHD)
resolution.
Figure 1-7 shows a view of the LCD module and Table 1-7 lists the specifications.

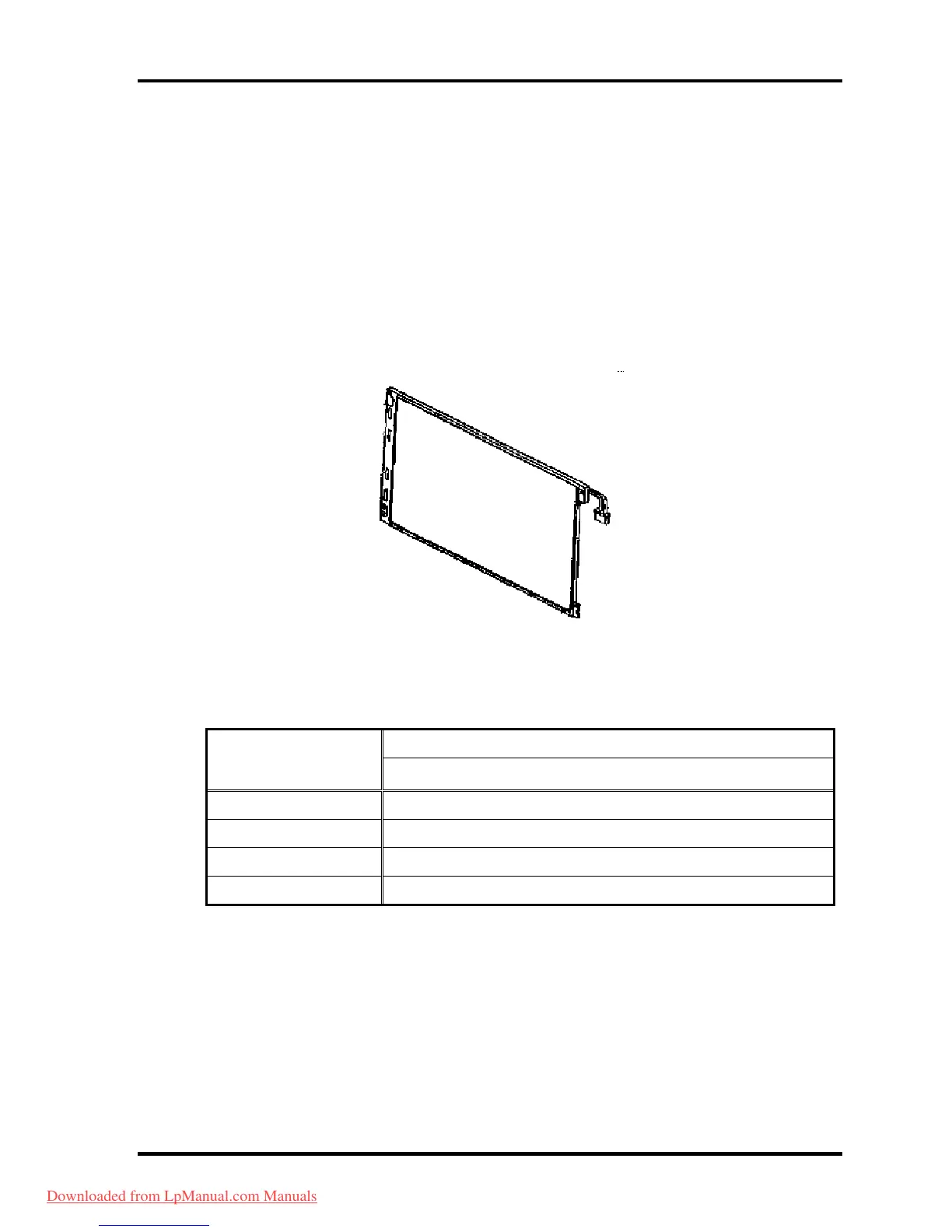

Figure 1-6 LCD module
Table 1-4 LCD module specifications
Specifications
Item
Samsung (G33C0004V110)
Number of Dots 1,680(W) x 945(H)
Dot spacing (mm) 0.25875(H)x0.25875(V)
Display range (mm) 408.24(H)x229.645(V) (18.4”diagonal)
Outline dimensions 422.5(H)x246.0(V)x6.5(D: Max)
QOSMIO G50 Maintenance Manual (960-683) [CONFIDENTIAL] 1-21
