Toshiba QOSMIO G50 Maintenance Manual

4 Replacement Procedures 4.22 FM tuner
4.22 FM tuner
Removing the FM tuner
The following describes the procedure for removing the FM tuner (See Figure 4-40).
1. Disconnect the FM tuner cable from the connector CN3011 on the system board.
2. Disconnect the FM tuner antenna cable from the connector on the FM tuner.
3. Remove the following screws and FM tuner.
• M2.0×4B BIND screw ×2
4. Disconnect the FM tuner cable from the connector on the FM tuner.
M2.0x4B BIND
FM tuner
CN3011
FM tuner antenna cable
FM tuner cable

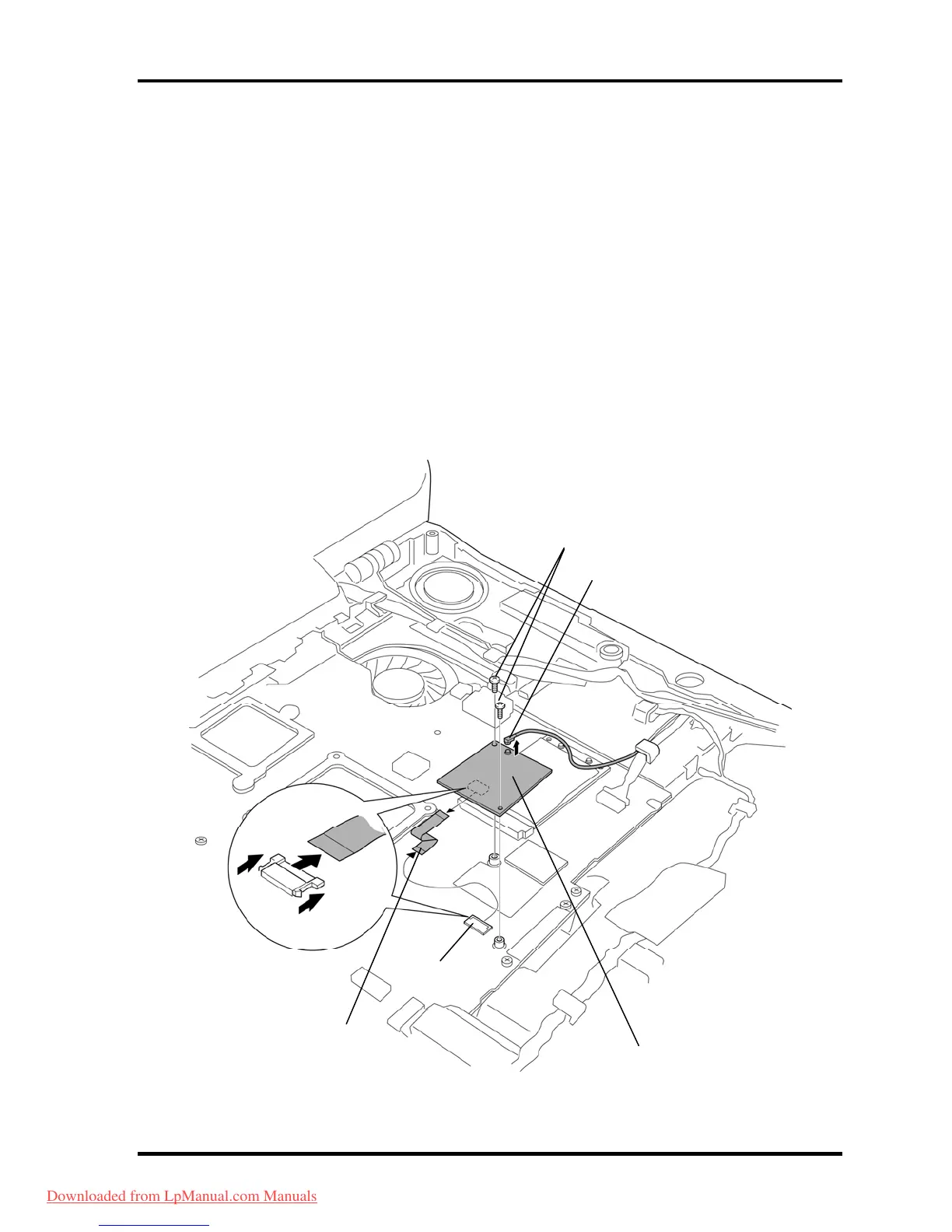

Figure 4-40 Removing the FM tuner
4-64 [CONFIDENTIAL] QOSMIO G50 Maintenance Manual (960-683)
