4.30 USB/Jack board 4 Replacement Procedures
4.30 USB/Jack board
Removing the USB/Jack board
The following describes the procedure for removing the USB/jack board (See Figure 4-58
and 4-59).
1. Push the hook in the direction indicated in the figure below to remove the USB/jack
board form the base assembly.
2. Disconnect the jack board cable from the connector CN6511 on the system board.
USB/Jack board
Hook
Jack board cable
CN6511

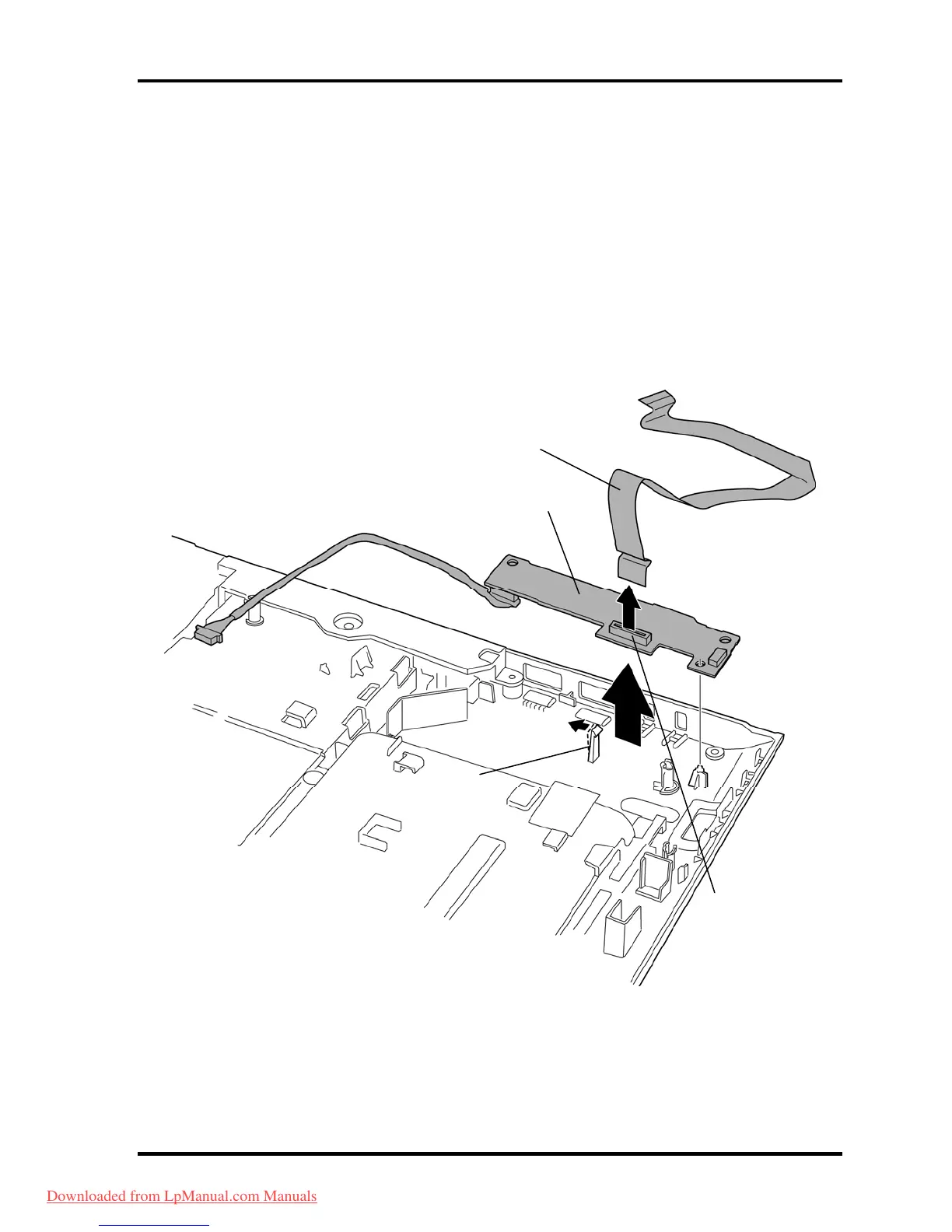

Figure 4-58 Removing the USB/jack board (1)
