4 Replacement Procedures 4.21 MDC
4.21 MDC
Removing the MDC
The following describes the procedure for removing the MDC (See Figure 4-39).
1. Remove the following screws securing the MDC.
• M2.0×4B BIND screw ×2
2. Lift the MDC straight above to remove it from the connector CN3010 on the system
board.
3. Disconnect the modem cable from the connector on the MDC.
M2.0x4B BIND
MDC
Modem cable
CN3010

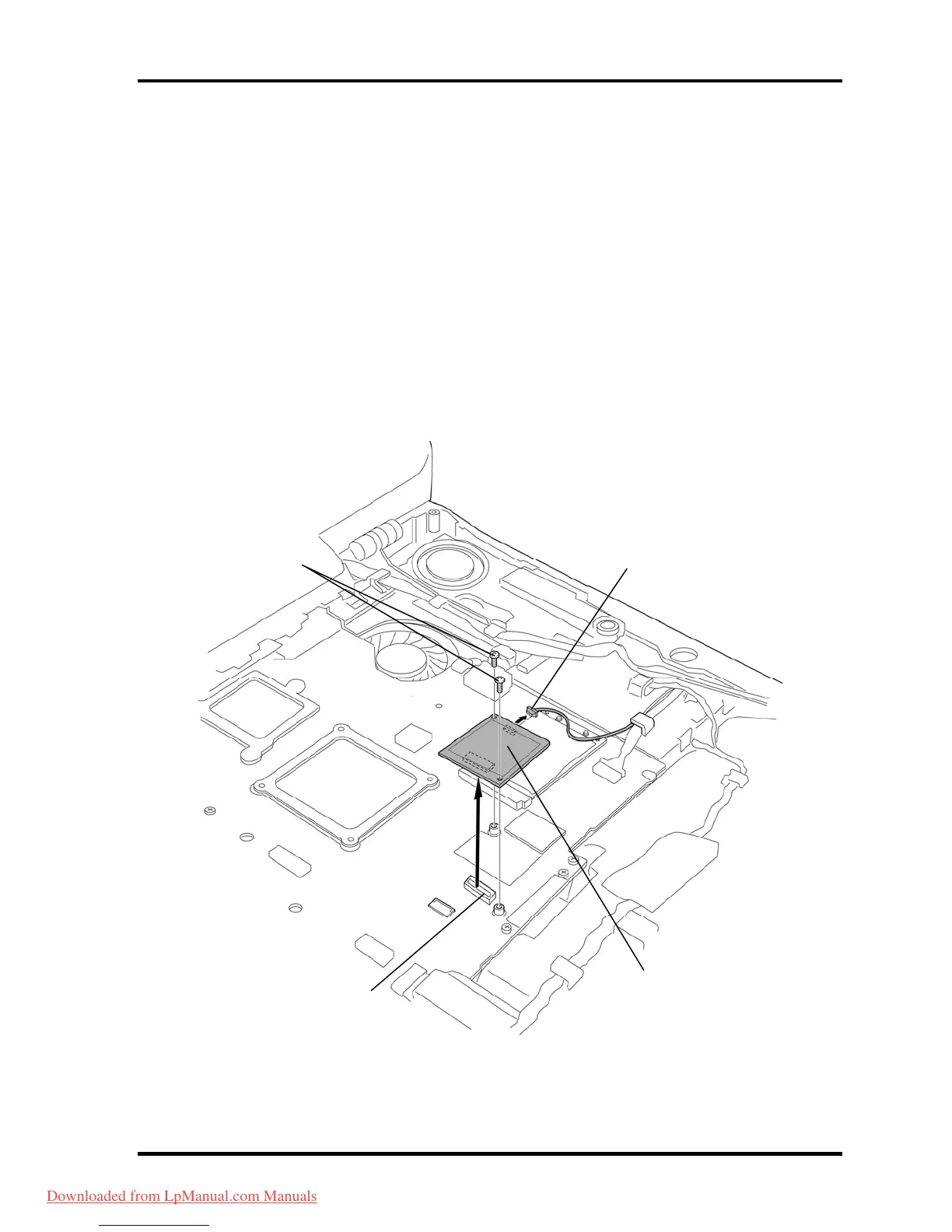

Figure 4-39 Removing the MDC
4-62 [CONFIDENTIAL] QOSMIO G50 Maintenance Manual (960-683)
