4 Replacement Procedures 4.19 GPS
4.19 GPS
Removing the GPS
The following describes the procedure for removing the GPS (See Figure 4-37).
1. Disconnect the GPS antenna cable from the connector on the GPS.
2. Remove the following screws securing the GPS.
• M2.0×3C BIND screw ×2
3. Remove the GPS from the connector CN2700 on the system board.
M2.0x3C BIND
GPS
CN2700
GPS antenna cable

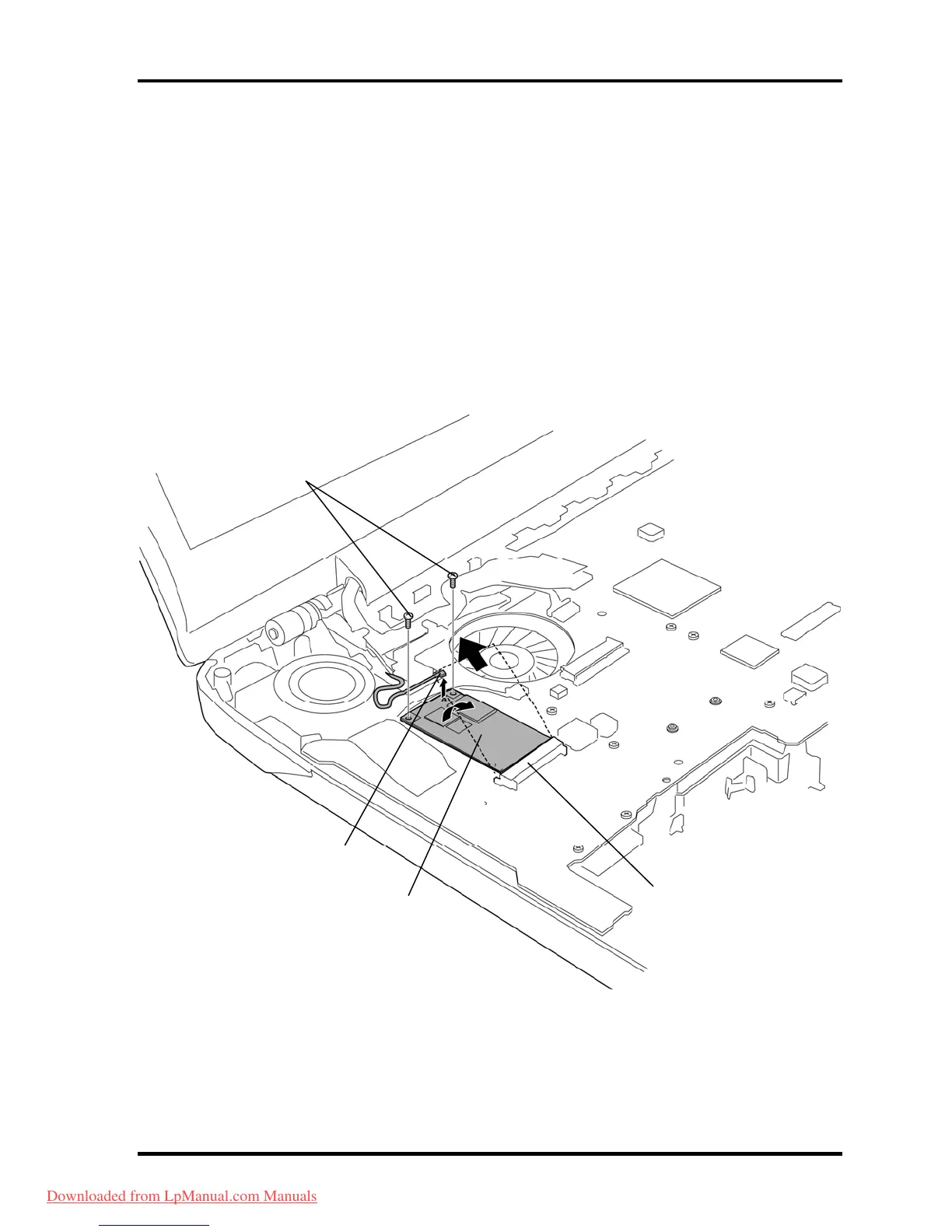

Figure 4-37 Removing the GPS
