4.37 Wireless LAN antenna/GPS antenna/Wireless USB antenna 4 Replacement Procedures
4.37 Wireless LAN antenna/GPS antenna/Wireless USB antenna
Removing the Wireless LAN antenna/GPS antenna/Wireless USB antenna
The following describes the procedure for removing the wireless LAN antenna/GPS
antenna/wireless USB antenna (See Figure 4-75).
1. Remove the wireless LAN antennas/GPS antenna/wireless USB antenna from the
LCD cover.
LCD COVER ASSY
GPS antenna or
Wireless USB antenna
Wireless LAN antenna (Gray)
Wireless LAN antenna (Black)
Wireless LAN antenna (White)

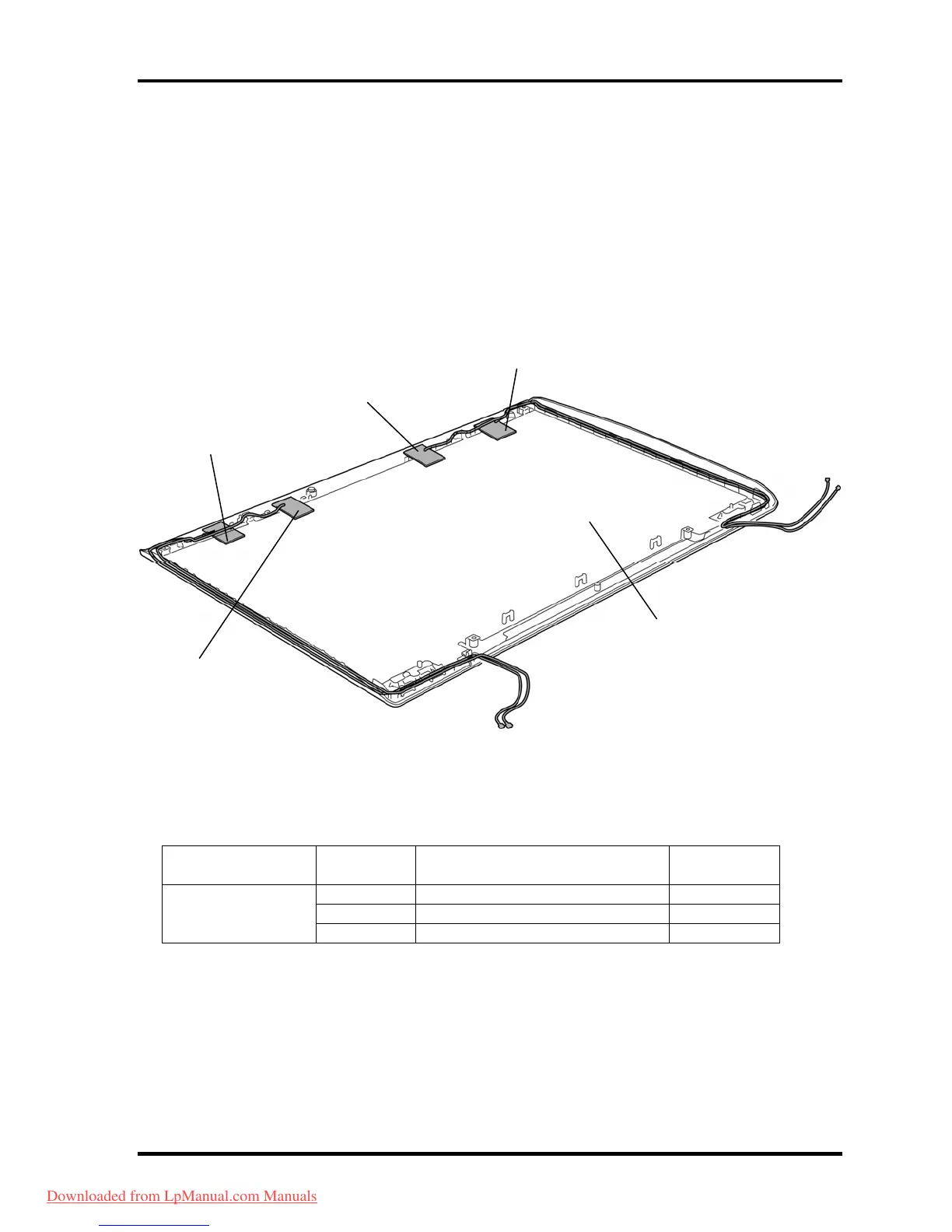

Figure 4-75 Removing the wireless LAN antenna/GPS antenna/wireless USB antenna
Please prepare required parts in advance, when replacing the following item.
ITEM
Parts List
ITEM No
PART NAME Quantity
51 LCD COVER ASSY 1
47 CAMERA MODULE 1
LCD COVER
ASSY
73
2.4/5.2GHZ ANTENNA 1
QOSMIO G50 Maintenance Manual (960-683) [CONFIDENTIAL] 4-111
