4.35 LCD unit/FL inverter 4 Replacement Procedures
3. Remove the following screw securing the FL inverter.
• M2.0×4B S-THIN HEAD screw ×1
4. Disconnect the LCD cable and HV cables from the connector on the FL inverter.
5. Remove the FL inverter from the slot.
M2.0x4B S-THIN HEAD
FL inverter
LCD cable
HV cable
HV cable

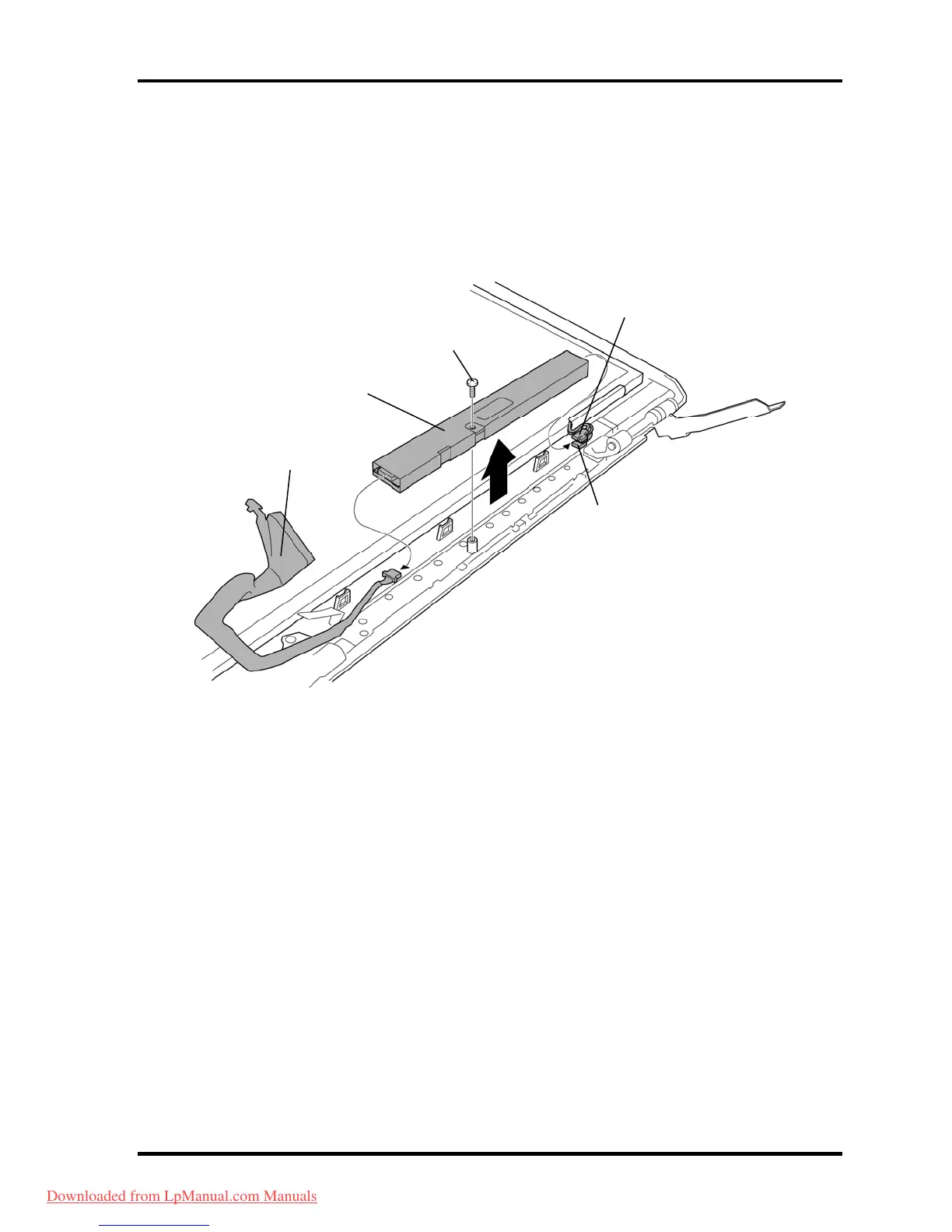

Figure 4-67 Removing the FL inverter
QOSMIO G50 Maintenance Manual (960-683) [CONFIDENTIAL] 4-101
