4.7 Keyboard 4 Replacement Procedures
4.7 Keyboard
Removing the keyboard
The following describes the procedure for removing the keyboard (See Figure 4-12 and 4-13).
CAUTION: As the keytop may fall out, when handling the keyboard always hold it by the
frame and do not touch the keytop.
1. Turn over the computer and open the display.
2. Insert your fingers into the slits of the keyboard holder. Then, lift up the keyboard
holder while unlatching.
3. Remove the following screws securing the keyboard.
• M2.5×4B FLAT HEAD screw ×4
4. Lift the upper side of the keyboard while releasing the latches and turn the keyboard
face down on the palm rest.
Keyboard holder
M2.5x4B FLAT HEAD
M2.5x4B FLAT HEAD
Latch
Keyboard
Latch
Latch
Latch
Hole

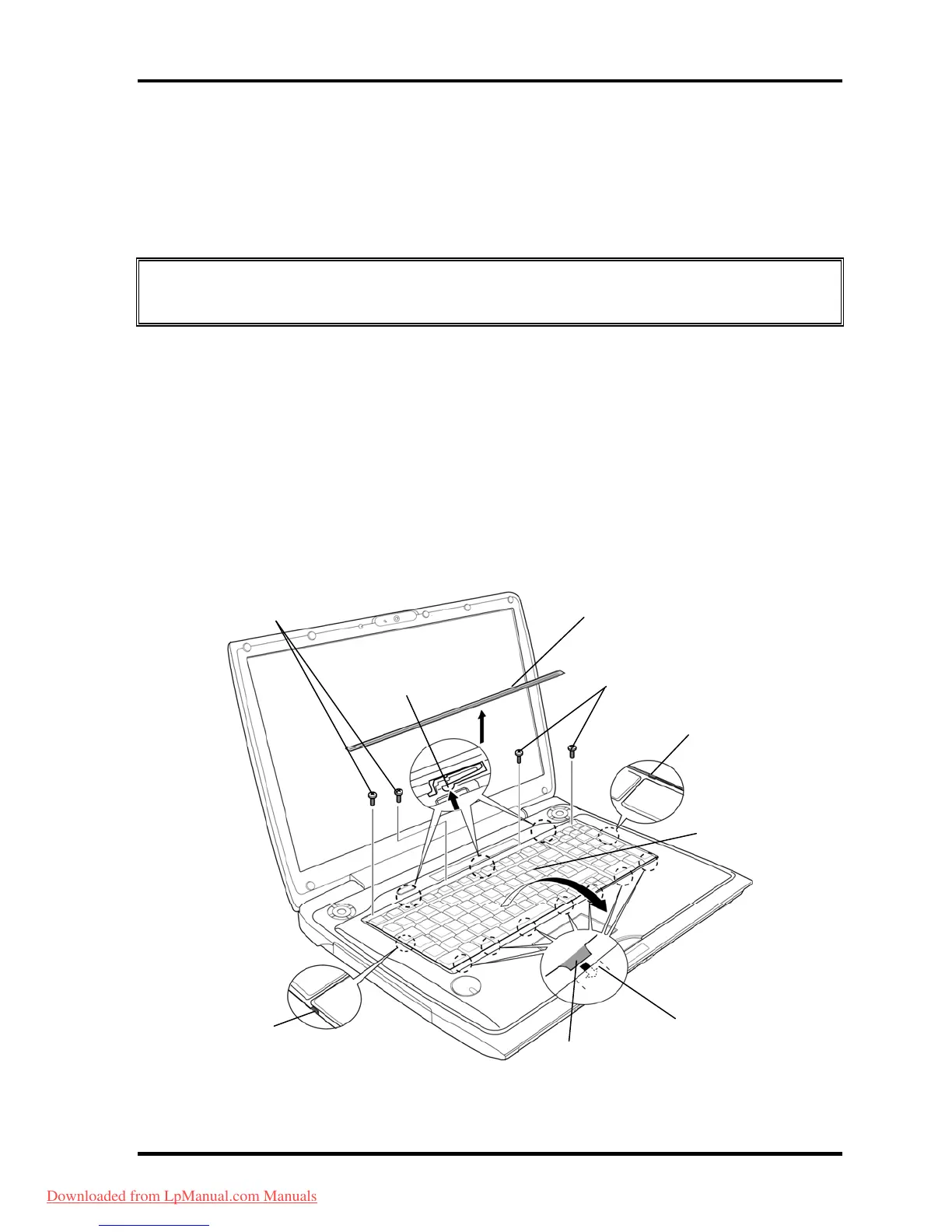

Figure 4-12 Removing the keyboard holder
QOSMIO G50 Maintenance Manual (960-683) [CONFIDENTIAL] 4-23
