4.9 Cover assembly 4 Replacement Procedures
4.9 Cover assembly
Removing the Cover assembly
The following describes the procedure for removing the cover assembly (See Figure 4-17 to
4-21).
1. Disconnect the TV tuner antenna cable (for TV tuner model) from the connector on
the system board.
2. Disconnect the VGA fan cable (for external VGA model) from the connector
CN8781 on the system board.
VGA fan cable
(connected to CN8781)
TV tuner antenna cable

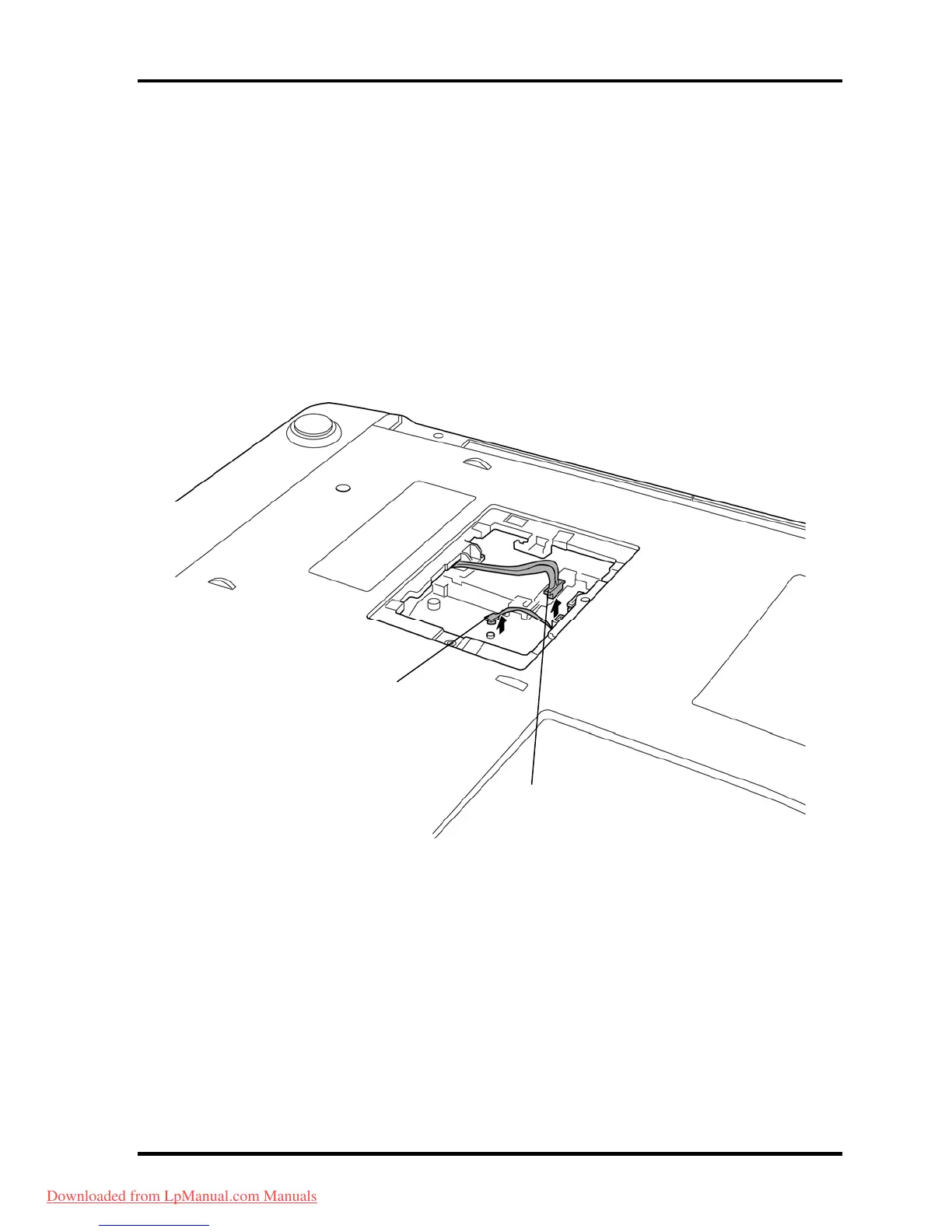

Figure 4-17 Removing the cover assembly (1)
QOSMIO G50 Maintenance Manual (960-683) [CONFIDENTIAL] 4-29
