4.28 VGA fan 4 Replacement Procedures
4.28 VGA fan
Removing the VGA fan
The following describes the procedure for removing the VGA fan (See Figure 4-56).
1. Remove the following screws and VGA fan from the slot.
• M2.5×6B FLAT HEAD screw ×2
M2.5x6B FLAT HEAD
VGA fan
M2.5x6B FLAT HEAD

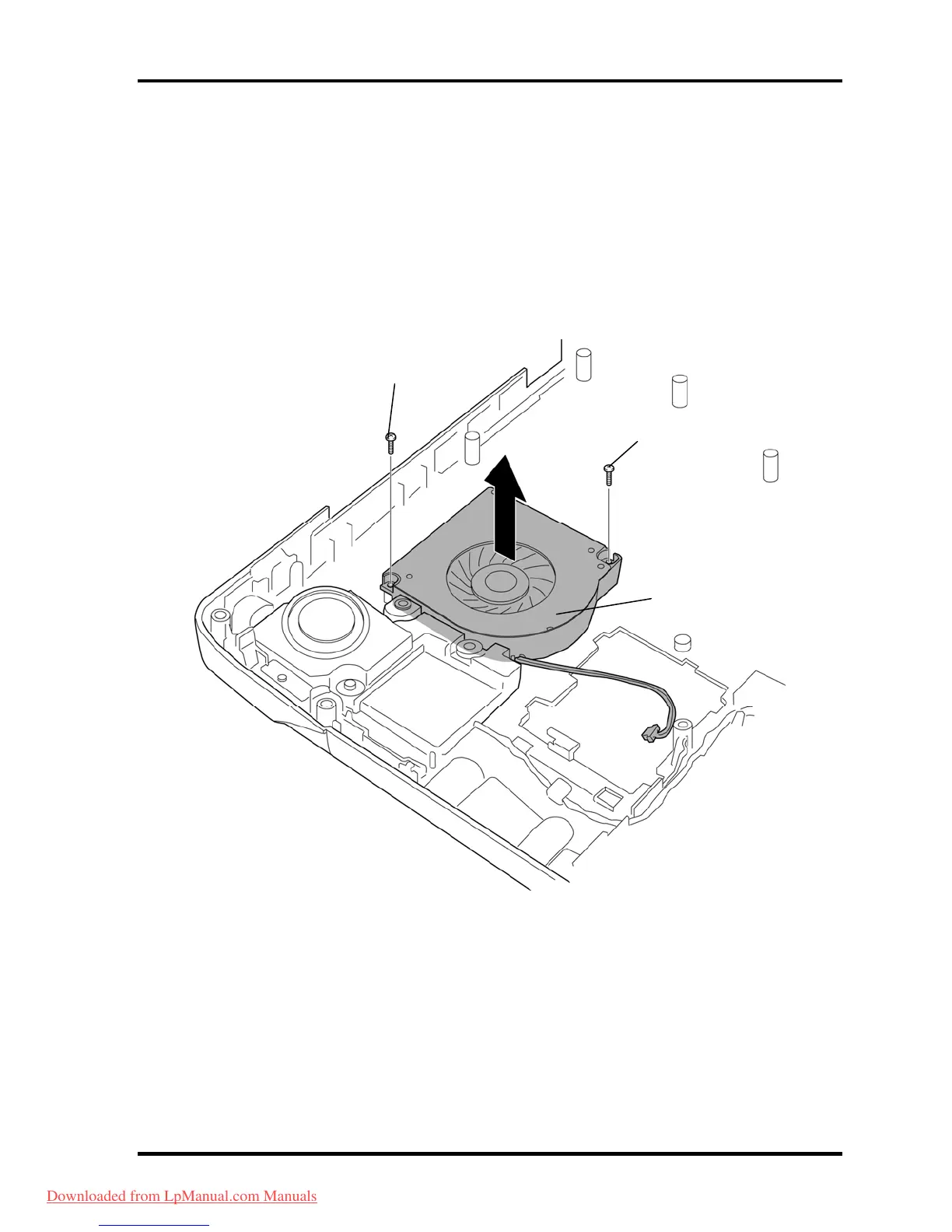

Figure 4-56 Removing the VGA fan
Installing the VGA fan
The following describes the procedure for installing the VGA fan (See Figure 4-56).
1. Set the VGA fan to the slot and secure it with the following screws.
• M2.5×6B FLAT HEAD screw ×2
QOSMIO G50 Maintenance Manual (960-683) [CONFIDENTIAL] 4-87
