Trane Tracer MP580 User Manual

CNT-SVP01C-EN 3
Chapter 2
Viewing status
Before viewing the status or configuration of a Tracer MP580/581 control-
ler, you must first select the Tracer MP580/581 you are working with on
the Comm5 link. To select the device, click the device name in the Active
Group tree. The Active Device View appears in the workspace (Figure 2).
The Active Device View contains nine tabs of status information. The
Unit tab is displayed when you first access a device.
The Unit tab displays general status information about the device. The
status information contains the operating status, today’s date and time,
active diagnostics, and expansion module communication status.

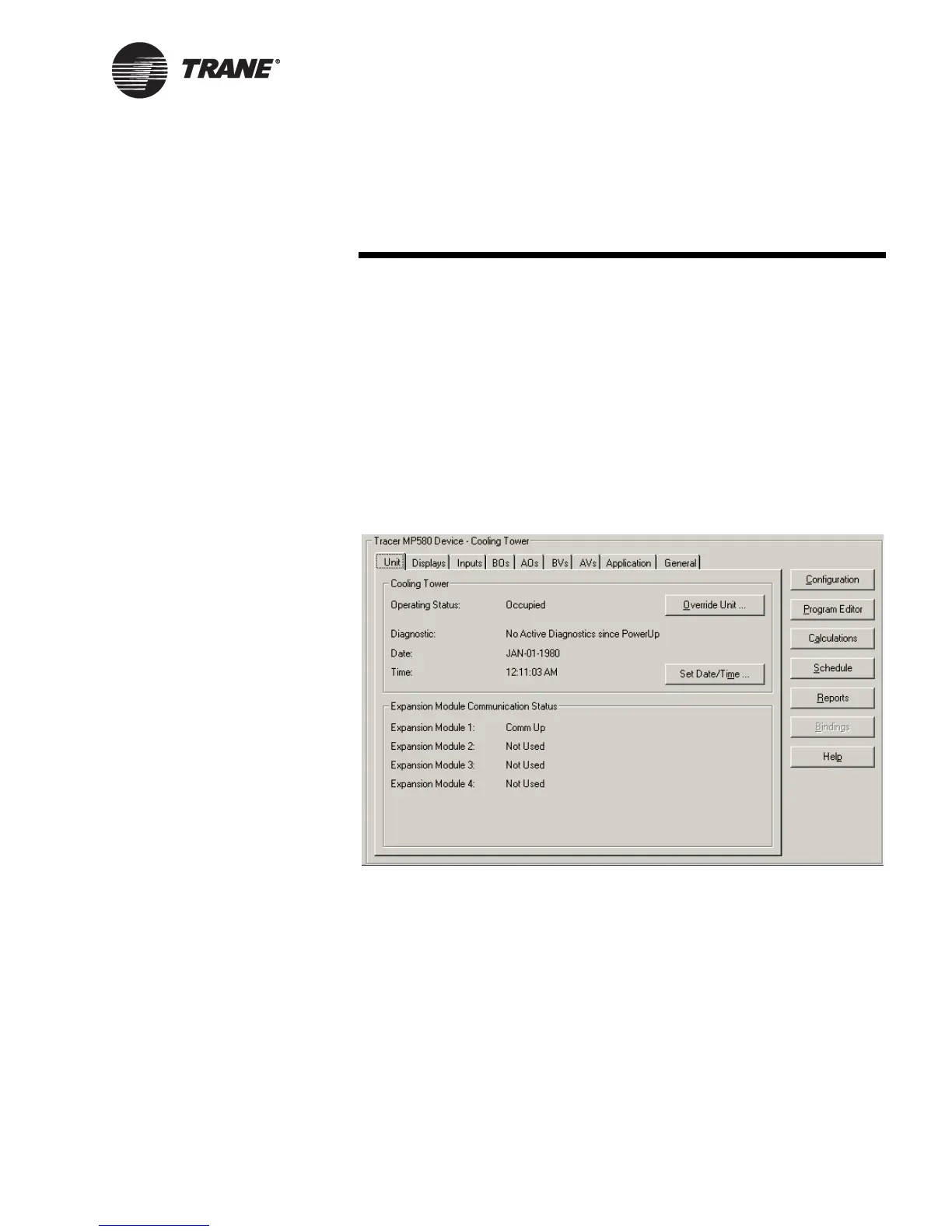

Figure 2. Tracer MP580/581 Active Device View in Rover service tool
