Viewing the status of inputs
Universal hardware inputs and an additional input for a pressure sensor
are provided on the Tracer MP580/581 controller. The configurable inputs
may be set up as analog or binary. Furthermore, analog inputs may be
configured to accommodate resistance, voltage, or current. You can view
the status of each input as well as its corresponding raw value. For infor-
mation on configuring inputs, see “Configuring inputs” on page 21.
To view the status of inputs:
X In the Active Device View, click the Inputs tab (Figure 3).

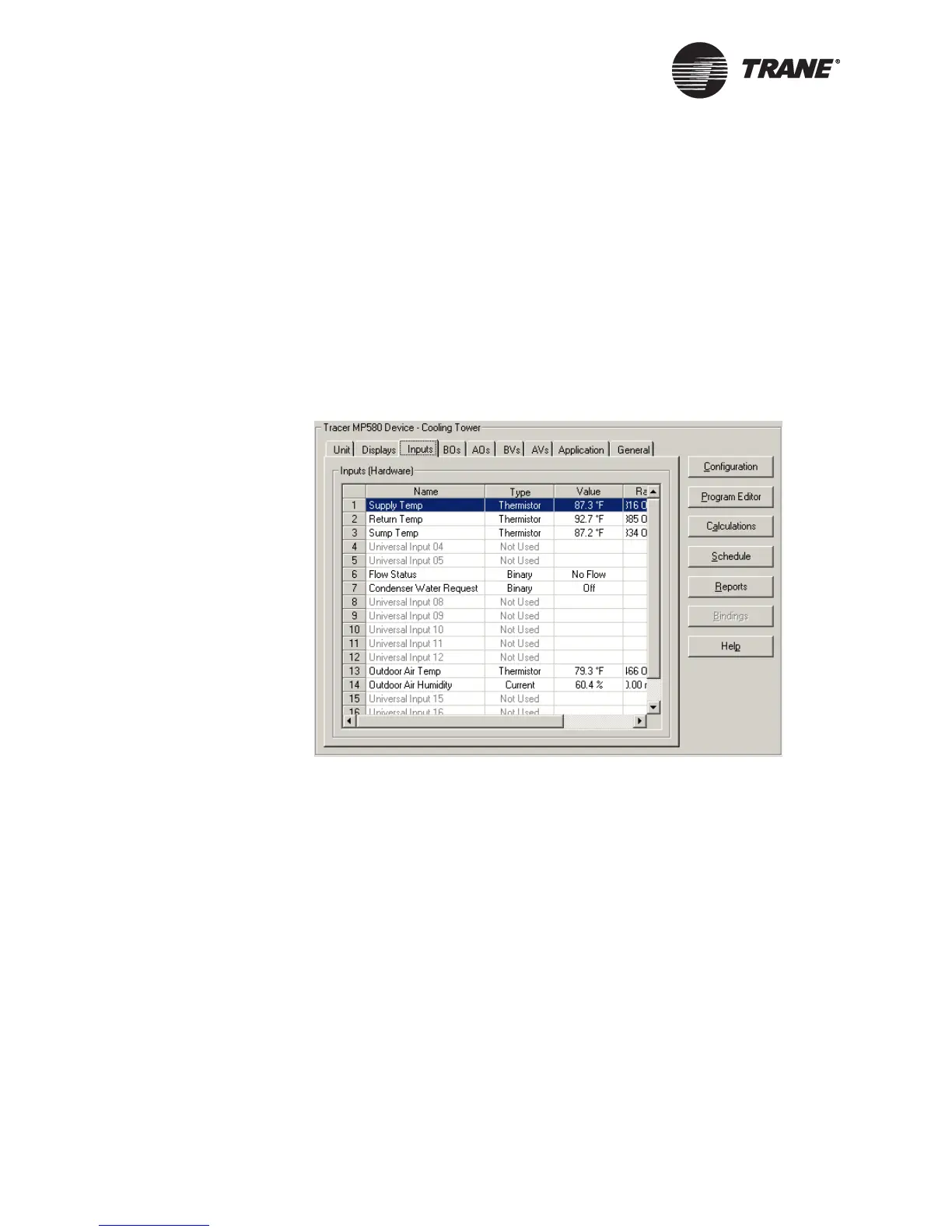

Figure 3. Device status Inputs tab
