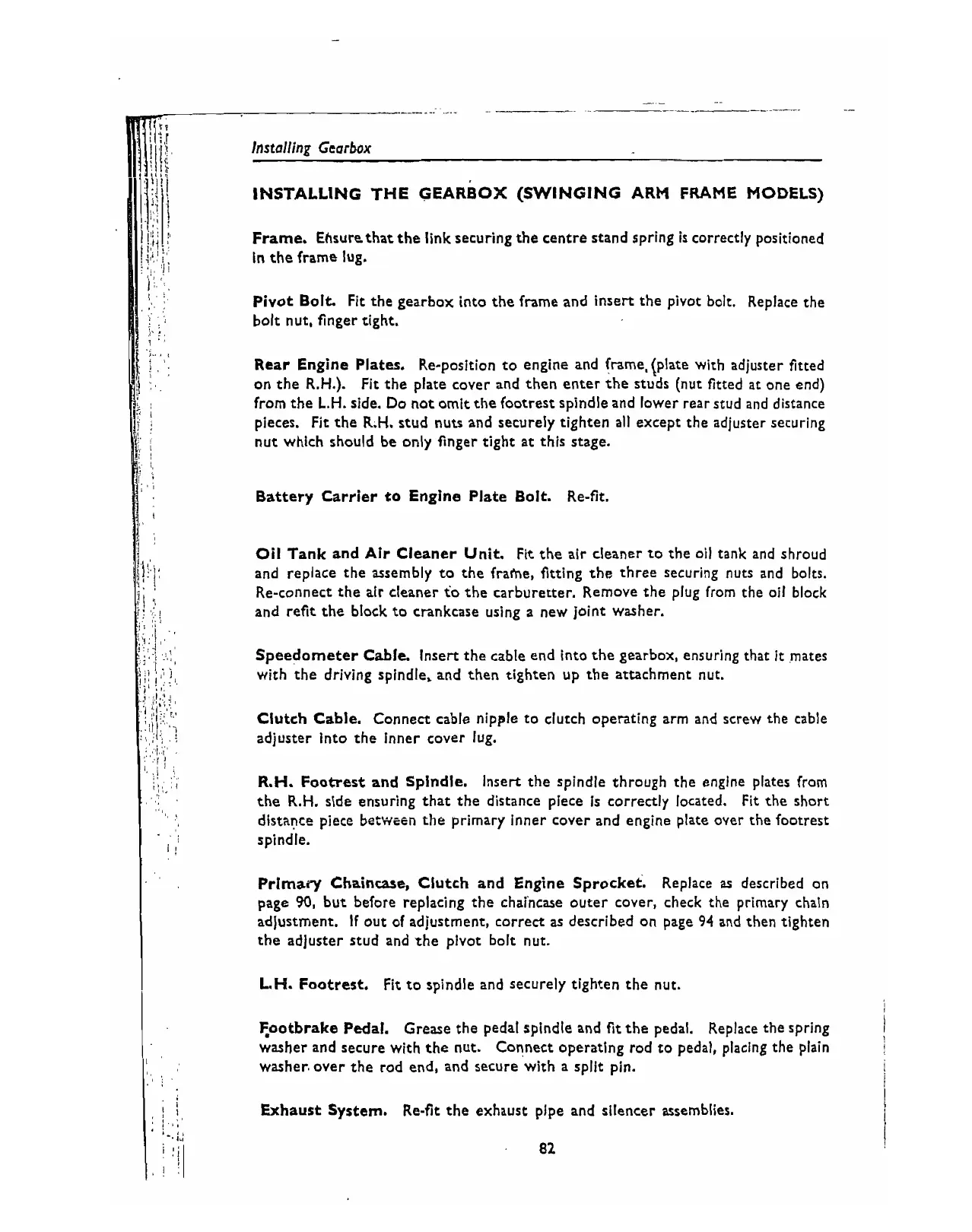

Frame. Ehsurethat the link securing the centre stand spring
is
correctly positioned
in the frame lug.
Pivot Bolt.
Fit the gearbox into the frame and insert the pivot bolt. Replace the
bolt nut, finger tight.
Rear Engine Plates. Re-position to engine and frame,(piate with adjuster fitted
on the R.H.). Fit the plate cover and then enter the studs (nut fitted
at
one end)
from the L.H. side. Do not omit the footrest spindle and lower rear stud and distance
pieces. Fit the R.H. stud nuts and securely tighten
all
except the adjuster securing
nut which should be only finger tight at this stage.
Battery Carrier to Engine Plate Bolt. Re-fit.
Oil
Tank and Alr Cleaner
Unit.
Fit the air cleaner to the oil tank and shroud
and replace the assembly to the frame, fitting the three securing nuts and bolts.
Re-connect the air cleaner
to
the carburetter. Remove the plug from the oil block
and refit the block
to
crankcase using
a
new joint washer.
Speedometer Cable. Insert the cable end into the gearbox, ensuring that
it
mates
with the driving spindle, and then tighten up the attachment nut.
Clutch Cable. Connect cable nipple to clutch operating arm and screw the cable
adjuster into the inner cover lug.
R.H.
Footrest and Spindle. Insert the spindle through the engine plates from
the R.H. side ensuring that the distance piece is correctly located. Fit the short
distance piece between the primary inner cover and engine plate over the footrest
spindle.
Prlmaiy Chaincase, Clutch and Engine Sprocket. Replace as described on
page
90,
but before replacing the chaincase outer cover, check the primary chain
adjustment. If out of adjustment, correct as described on page
94
and then tighten
the adluster stud and the pivot bolt nut.
L.H.
Footrest. Fit to spindle and securely tighten the nut.
tootbrake Pedal. Grease the pedal spindle and
fit
the pedal.
Replace the spring
1
washer and secure with the nut. Connect operating rod to pedal, placing the plain
washer, over the rod end, and secure with
a
split pin.
I
I
Exhaust System. Re-fit the exhaust pipe and silencer assemblies.
