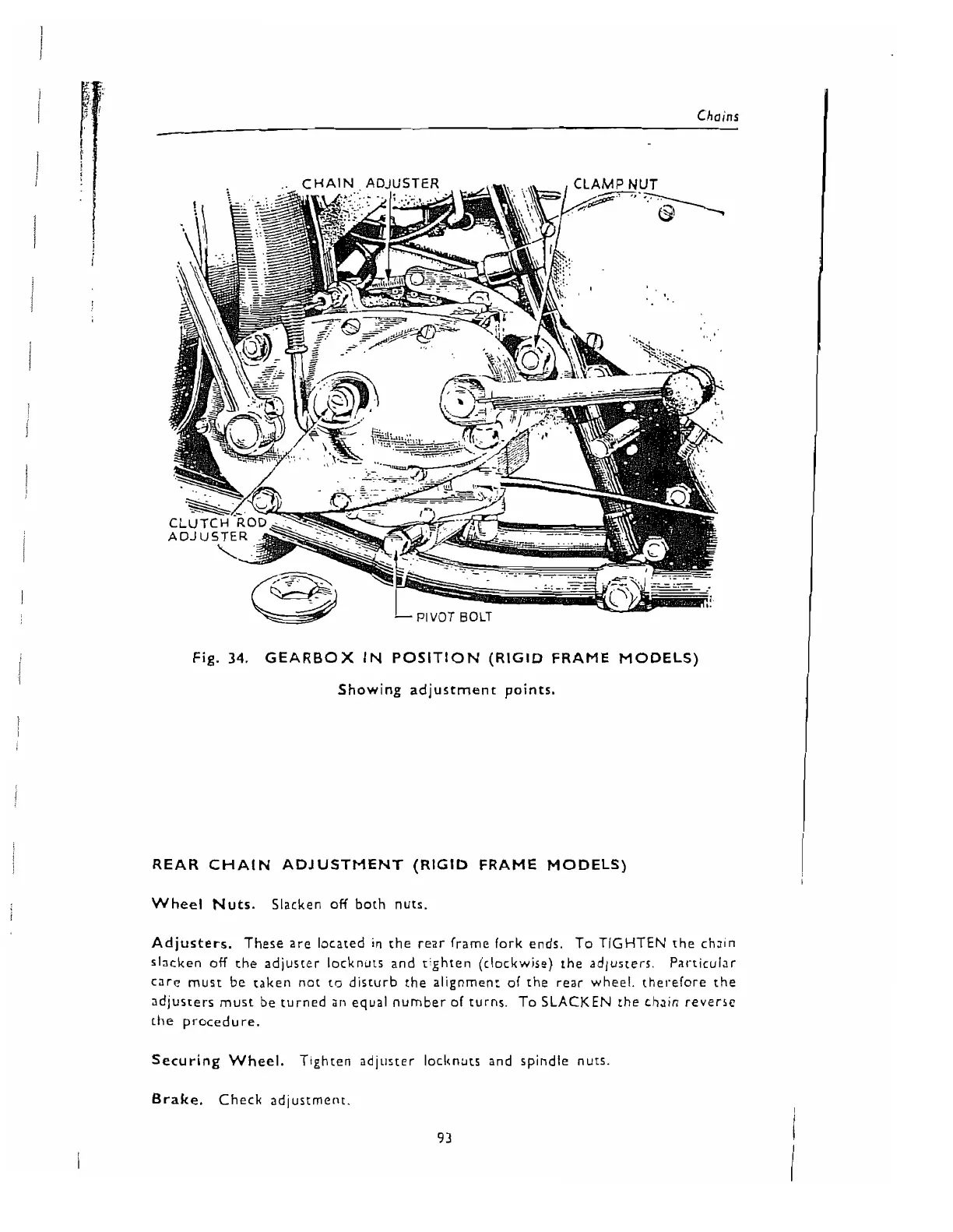

Fig.
34.
GEARBOX
IN
POSITION (RIGID FRAME MODELS)
Showing adjustment points.
REAR CHAIN ADJUSTMENT (RIGID FRAME MODELS)
Wheel Nuts.
Slacken off both nuts
Adjusters. These are located in the rear frame fork ends. To TIGHTEN the ch~in
slacken off the
locknuts and tighten (clockwise) the adlusrers.
Pal-iicuiar
care must be taken nor to disturb the alignmen: of the rear wheel. therefore the
adjusters must be turned an equal number of turns. To SLACKEN the cha~n reverse
the procedure.
Securing Wheel. Tighten adjuster locknuts and spindle nuts
Brake. Check adjustmenr.
93
