Xerox Phaser 6000 Service Manual

8-58 Xerox Internal Use Only Phaser 6000/6010 and WC 6015 MFP
Service Parts Disassembly

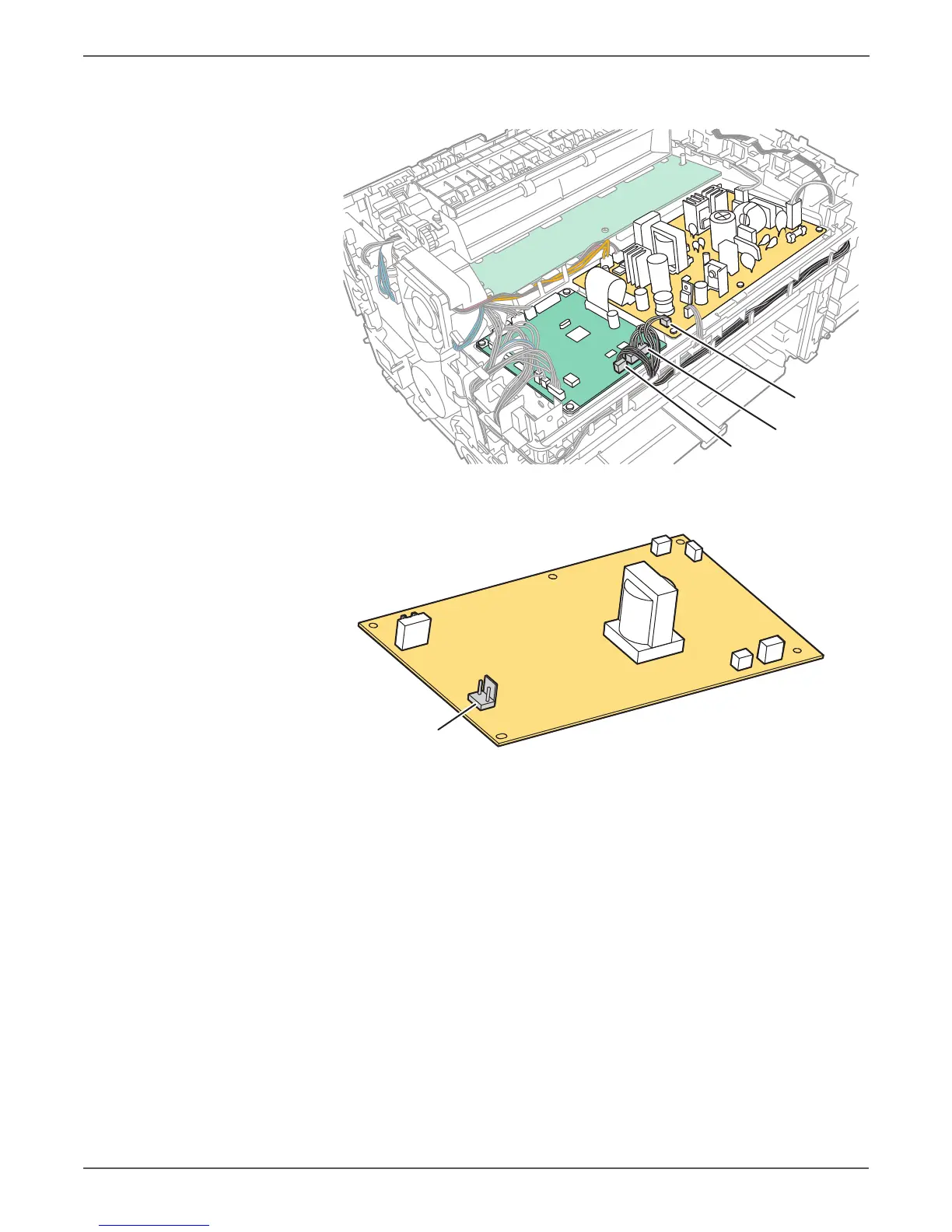

9. Disconnect P/J206 on the LVPS, and P/J13 and P/J20 on the MCU Board.
Release the harness from the harness guide.
10. Disconnect P/J201 on the LVPS and release the harness from the harness
guide.
s6000-069
P/J206
P/J13
P/J20
P/J201
s6000-117
