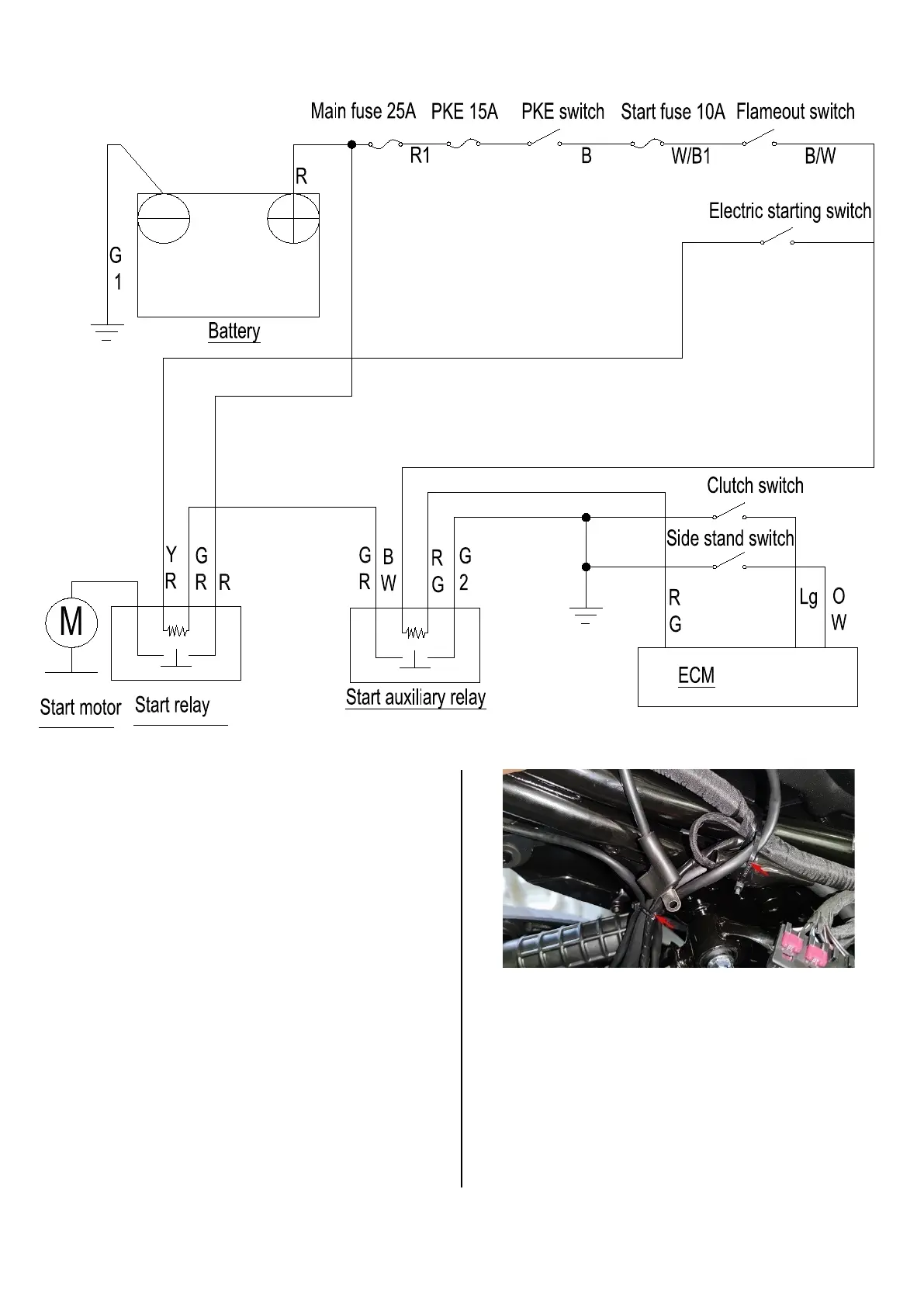

Starting system electrical schematic diagram
Starter motor
Caution:
●If the starter motor is removed for maintenance,
replace the O-ring with a new one and apply a proper
amount of engine oil.
●Our company only sells starter motor assemblies, not
O-rings and motor parts separately. The O-ring has an
inner diameter of φ25mm (0.98in) and a wire diameter
of 3mm (0.12in).
1. Remove the starter motor
a. Refer to the steps of removing the rear storage
box to remove the rear storage box. For the removal
steps, refer to the stepping motor removal and
cleaning carbon deposits in the section of the throttle
valve body in the "Maintenance" chapter.
b. Cut off the two grade 0 flame-retardant cable ties
as shown in the figure.
c. Loosen the clamp bolt shown in the figure with a
4# inner hexagon counterclockwise, and pull the air
filter outlet pipe toward the rear wheel to pull out the
throttle valve body.
