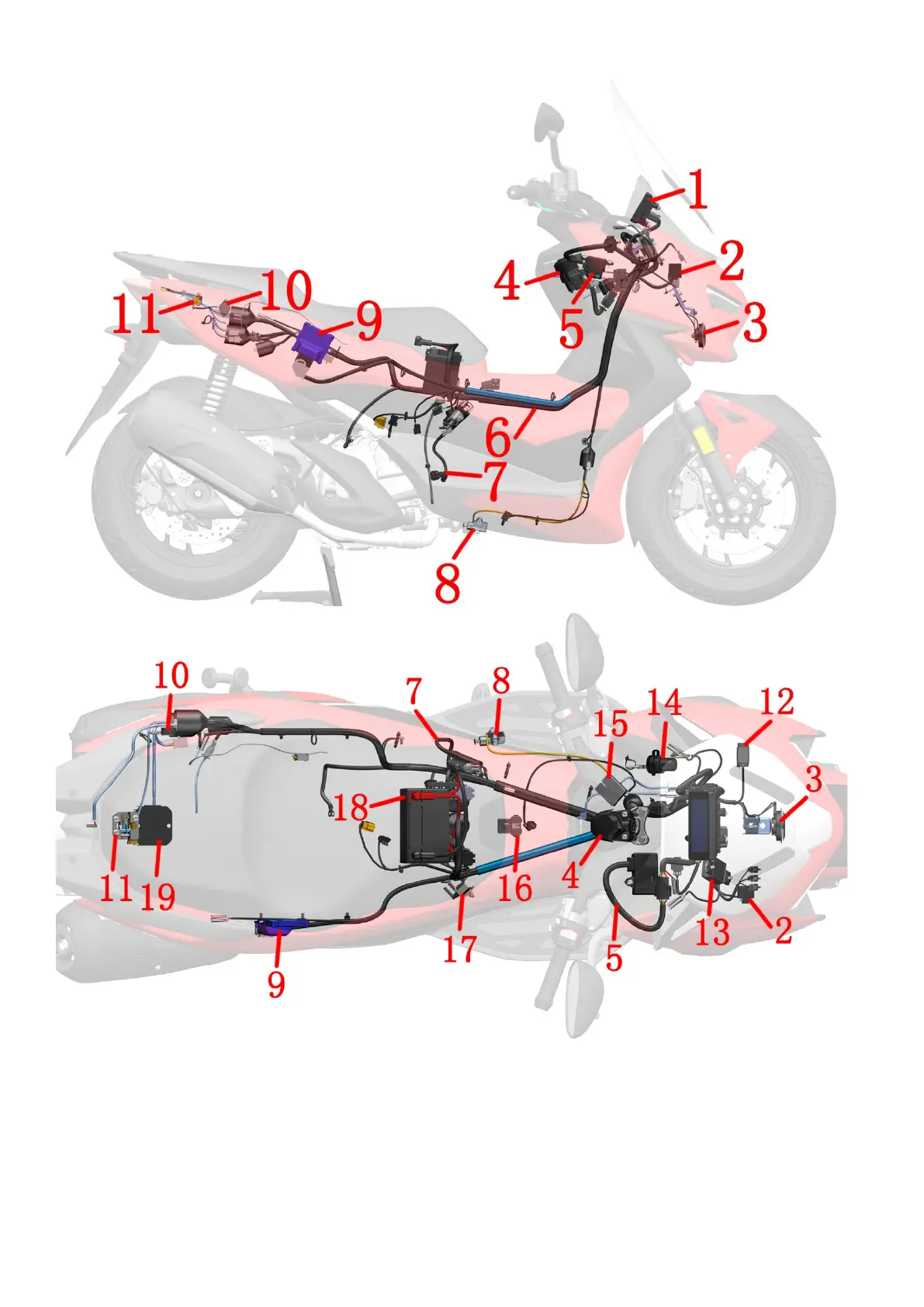

8. Electrical device layout

1-TFT Speedometer 2-Flasher 3-horn 4-faucet lock 5-PKE 6-main cable 7-ignition coil 8-side bracket flameout switch

9-engine controller (ECU) 10-buzzer 11-cushion lock 12 -Dump switch 13-Windshield motor controller 14-USB

charging cable 15-Front storage box lock 16-Electronic fuel tank lock 17-Canister solenoid valve

18-Battery 19-Rectifier
