●When the engine is running, the fault light does not turn on, and the fault light flashes after the engine is turned off, it
is a historical fault, which will not affect the performance and life of the whole vehicle, and will automatically disappear
later.

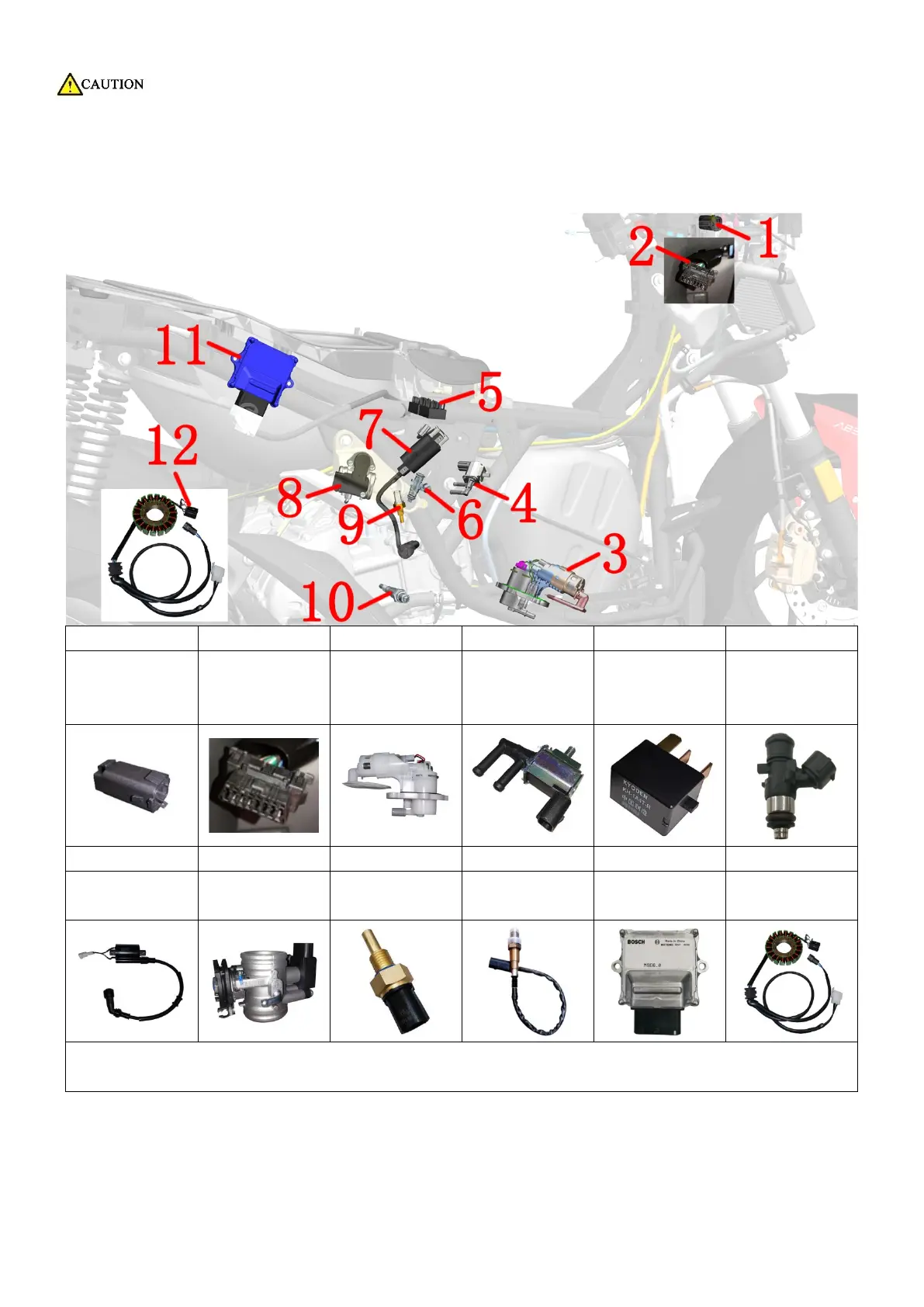

EFI parts layout
1 2 3 4 5 6
Dump switch
OBD diagnostic
interface (main
cable)
Fuel pump
Carbon canister
solenoid valve
EFI relay Fuel injector
7 8 9 10 11 12
Ignition coils
Throttle valve
body
Water and oil
shared sensor
Oxygen Sensor ECU
Crankshaft
position sensor
*Throttle valve body components include (three-in-one sensor, idle speed control valve, stepper motor). The
crankshaft position sensor is integrated with the magneto stator.
