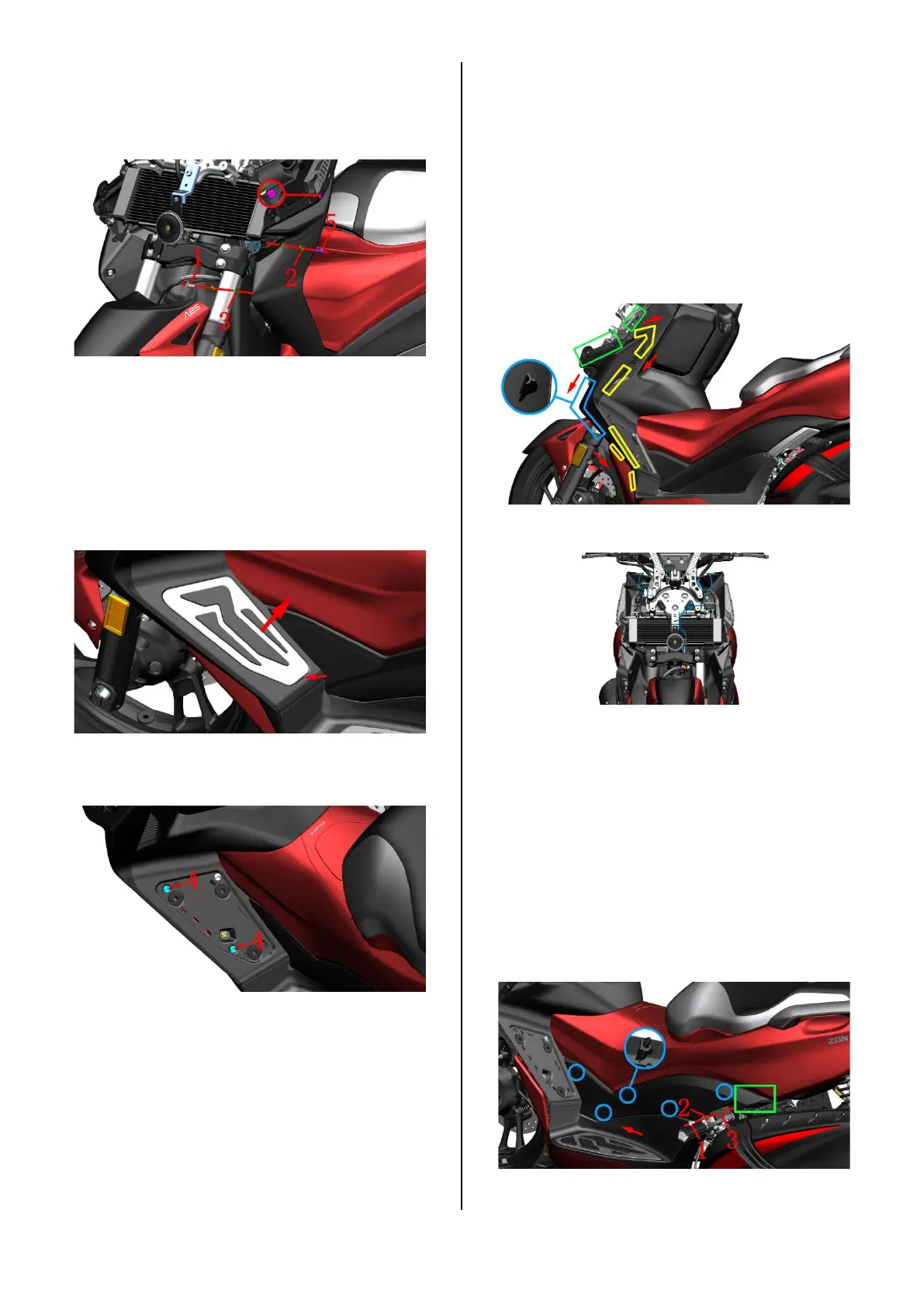

177 / 184
decoration cover of front storage box panel, take out the
bushing ⑵and cushion rubber⑶; use 4# inner hexagon
to remove 1 expansion nail on the left decoration cover
of the front storage box panel.
b. Pry out the front left pedal rubber pad and the front
left pedal aluminum pad from the position pointed by the
small arrow using a single-character batch, and then
pull out the front left pedal rubber pad and the front left
pedal aluminum pad upwards in the direction of the big
arrow. Caution: When using the one-word pry, you can
use non-woven cloth and other tools to wrap the one-
word batch to prevent scratching the paint surface.
c. Use 4# inner hexagon to remove the two M6×12
boltsâ‘· connecting the left decorative cover of the front
storage box panel on the front storage box panel.
d. Use one hand to grasp the left decorative cover
mark (green rectangle) of the front storage box panel
and pull out, and use one hand to hold the mark (green
rectangle) of the front storage box panel and press
down Until the top of the left decorative cover of the
front storage box panel and the front storage box panel
are connected (yellow area), the 3 buckles are
separated,and then the left decorative cover of the front
storage box panel is surrounded by the front storage
box panel in the order of the small arrows. The
connection of the middle and left pedal decoration cover
(yellow area: 7 buckles on the front storage box panel, 3
buckles on the left pedal decoration cover; blue area:
surrounds the 4 points where the middle part is
connected to the front storage box panel The 10 buckles
of the bayonet) and the 4 bayonets are separated, and
then remove the left decorative cover of the front
storage box panel,remove the left decorative cover of
the front storage box panel.
Use the same method to remove the right decorative
cover of the front storage box panel.
Disassembly of the left &right side
cover
a. Put the rear left foot petal down, remove the M6x16
boltâ‘´ connecting the left cover to the rear left foot
pedal support with 4# inner hexagon, and take out the
bushing⑵ and buffer glue⑶; Hold the mark part on the
left cover (green rectangle) with your hand, and pull it
out alternately from outside to inside according to the
direction of the small arrow until all the 5 buckles (blue
circle) on the left cover are pulled out, then remove the
left cover.
b. Remove the right side cover by the same method.
